Class to compute a Chamfer distance field on a 3D grid. More...

#include <ChamferDistanceTransform.h>

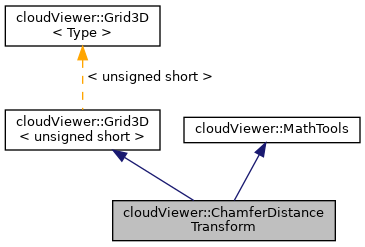

Inheritance diagram for cloudViewer::ChamferDistanceTransform:

[legend]

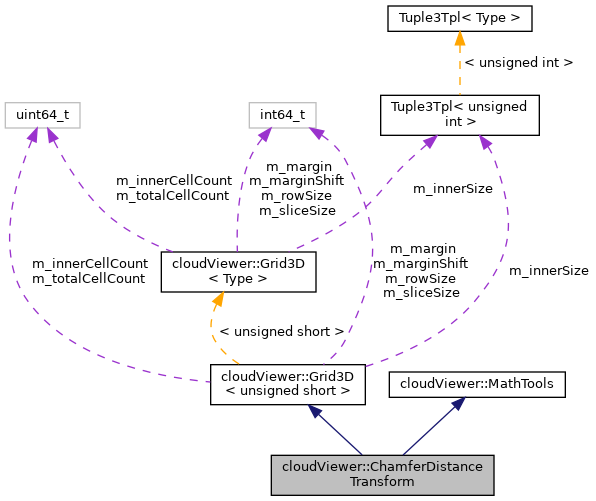

Collaboration diagram for cloudViewer::ChamferDistanceTransform:

[legend]

Public Member Functions
bool	init (const Tuple3ui &gridSize)
	Initializes the grid. More...

int	propagateDistance (CHAMFER_DISTANCE_TYPE type, GenericProgressCallback *progressCb=nullptr)
	Computes the Chamfer distance on the whole grid. More...

Public Member Functions inherited from cloudViewer::Grid3D< unsigned short >
	Grid3D ()
	Default constructor. More...

const Tuple3ui &	size () const
	Returns the grid dimensions. More...

bool	isInitialized () const
	Returns whether the grid has been initialized or not. More...

void	clear ()
	Clears the grid. More...

bool	init (unsigned di, unsigned dj, unsigned dk, unsigned margin, GridElement defaultCellValue=0)
	Initializes the grid. More...

Tuple3i	computeCellPos (const CCVector3 &P, const CCVector3 &gridMinCorner, PointCoordinateType cellSize) const
	Computes the (grid) cell position that contains a given point. More...

bool	intersectWith (GenericIndexedMesh mesh, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GridElement intersectValue=0, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a mesh. More...

bool	intersectWith (GenericIndexedMesh mesh, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, genericCellTriIntersectionAction action, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a mesh (generic form) More...

bool	intersectWith (GenericCloud cloud, PointCoordinateType cellLength, const CCVector3 &gridMinCorner, GridElement intersectValue=0, GenericProgressCallback progressCb=nullptr)
	Intersects this grid with a cloud. More...

void	setValue (int i, int j, int k, GridElement value)
	Sets the value of a given cell. More...

void	setValue (const Tuple3i &cellPos, GridElement value)
	Sets the value of a given cell. More...

const GridElement &	getValue (int i, int j, int k) const
	Returns the value of a given cell (const version) More...

GridElement &	getValue (int i, int j, int k)
	Returns the value of a given cell. More...

const GridElement &	getValue (Tuple3i &cellPos) const
	Returns the value of a given cell const version) More...

GridElement &	getValue (Tuple3i &cellPos)
	Returns the value of a given cell. More...

GridElement *	data ()
	Gives access to the internal grid data (with margin) More...

const GridElement *	data () const
	Gives access to the internal grid data (with margin) (const version) More...

uint64_t	innerCellCount () const
	Returns the number of cell count (whithout margin) More...

uint64_t	totalCellCount () const
	Returns the total number of cell count (with margin) More...

Static Public Attributes
static const unsigned short	MAX_DIST = 0xFAFA
	Max possible 'distance'. More...

Additional Inherited Members
Public Types inherited from cloudViewer::Grid3D< unsigned short >
using	GridElement = unsigned short
	Cell type. More...

using	genericCellTriIntersectionAction = std::function< void(const Tuple3i &, unsigned)>

Protected Member Functions inherited from cloudViewer::Grid3D< unsigned short >
int64_t	pos2index (int i, int j, int k) const
	Converts a 3D position to an absolute index. More...

Protected Attributes inherited from cloudViewer::Grid3D< unsigned short >
std::vector< GridElement >	m_grid
	Grid data. More...

Tuple3ui	m_innerSize
	Dimensions of the grid (without margin) More...

int64_t	m_margin
	Margin. More...

int64_t	m_rowSize
	1D row size (with margin) More...

int64_t	m_sliceSize
	2D slice size (with margin) More...

uint64_t	m_innerCellCount
	3D grid size without margin More...

uint64_t	m_totalCellCount
	3D grid size with margin More...

int64_t	m_marginShift
	First index of real data (i.e. after marin) More...

Detailed Description

Class to compute a Chamfer distance field on a 3D grid.

Internally we use 'unsigned short' value to limit memory consumption. For computational reasons, the max computable 'distance' is 0xFAFA = 64250.

Definition at line 24 of file ChamferDistanceTransform.h.

Member Function Documentation

◆ init()

bool cloudViewer::ChamferDistanceTransform::init ( const Tuple3ui & gridSize )

inline

Initializes the grid.

'Zero' cells must be initialized with setValue(0). The grid must be explicitelty initialized prior to any action.

Returns: true if the initialization succeeded

Definition at line 37 of file ChamferDistanceTransform.h.

References cloudViewer::Grid3D< Type >::init(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by define_ChamferDistanceTransform().

◆ propagateDistance()

int ChamferDistanceTransform::propagateDistance	(	CHAMFER_DISTANCE_TYPE	type,
		GenericProgressCallback *	progressCb = `nullptr`
	)

Computes the Chamfer distance on the whole grid.

Propagates the distances on the whole grid. The 'zeros' should have already been initialized before calling this method (see ChamferDistanceTransform::setZero).

Parameters

type	the Chamfer distance type
progressCb	the client application can get some notification of the process progress through this callback mechanism (see GenericProgressCallback)
