cloudViewer::BoundingBoxTpl< T > Class Template Reference

Bounding box structure. More...

#include <BoundingBox.h>

Inheritance diagram for cloudViewer::BoundingBoxTpl< T >:
Inheritance graph
[legend]

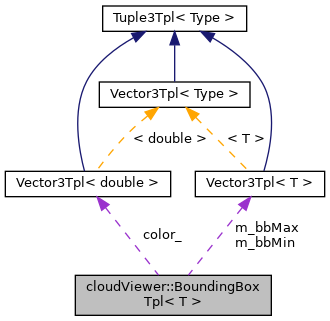

Collaboration diagram for cloudViewer::BoundingBoxTpl< T >:
Collaboration graph
[legend]

Public Member Functions

 BoundingBoxTpl ()
 Default constructor. More...

 BoundingBoxTpl (const Vector3Tpl< T > &minCorner, const Vector3Tpl< T > &maxCorner)
 Constructor from two vectors (lower min. and upper max. corners) More...

BoundingBoxTpl< T > operator+ (const BoundingBoxTpl< T > &bbox) const
 Returns the 'sum' of this bounding-box and another one. More...

const BoundingBoxTpl< T > & operator+= (const BoundingBoxTpl< T > &bbox)
 In place 'sum' of this bounding-box with another one. More...

virtual const BoundingBoxTpl< T > & operator+= (const Vector3Tpl< T > &V)
 Shifts the bounding box with a vector. More...

virtual const BoundingBoxTpl< T > & operator-= (const Vector3Tpl< T > &V)
 Shifts the bounding box with a vector. More...

virtual const BoundingBoxTpl< T > & operator*= (T scaleFactor)
 Scales the bounding box. More...

virtual const BoundingBoxTpl< T > & operator*= (const SquareMatrixTpl< T > &mat)
 Rotates the bounding box. More...

void clear ()
 Resets the bounding box. More...

void add (const Vector3Tpl< T > &P)
 'Enlarges' the bounding box with a point More...

const Vector3Tpl< T > & minCorner () const
 Returns min corner (const) More...

const Vector3Tpl< T > & maxCorner () const
 Returns max corner (const) More...

Vector3Tpl< T > & minCorner ()
 Returns min corner. More...

Vector3Tpl< T > & maxCorner ()
 Returns max corner. More...

Vector3Tpl< T > getCenter () const
 Returns center. More...

Vector3Tpl< T > getDiagVec () const
 Returns diagonal vector. More...

T getDiagNorm () const
 Returns diagonal length. More...

double getDiagNormd () const
 Returns diagonal length (double precision) More...

T getMinBoxDim () const
 Returns minimal box dimension. More...

T getMaxBoxDim () const
 Returns maximal box dimension. More...

double computeVolume () const
 Returns the bounding-box volume. More...

void setValidity (bool state)
 Sets bonding box validity. More...

bool isValid () const
 Returns whether bounding box is valid or not. More...

T minDistTo (const BoundingBoxTpl< T > &bbox) const

bool contains (const Vector3Tpl< T > &P) const
 Returns whether a points is inside the box or not. More...

bool containsEigen (const Eigen::Vector3d &point) const

std::vector< std::size_t > GetPointIndicesWithinBoundingBox (const std::vector< Eigen::Vector3d > &points) const

std::vector< std::size_t > GetPointIndicesWithinBoundingBox (const std::vector< Vector3Tpl< T >> &points) const

void addEigen (const Eigen::Vector3d &point)

double volume () const

void SetColor (const Eigen::Vector3d &color)
 Sets the bounding box color. More...

Eigen::Vector3d GetColor () const
 Gets the bounding box color. More...

double getXPercentage (double x) const

double getYPercentage (double y) const

double getZPercentage (double z) const

void getBounds (double bounds[6]) const


Protected Attributes

Vector3Tpl< T > m_bbMin
 Lower min. corner. More...

Vector3Tpl< T > m_bbMax
 Upper max. corner. More...

CCVector3d color_
 The color of the bounding box in RGB. More...

bool m_valid
 Validity. More...


Detailed Description

template<typename T>
class cloudViewer::BoundingBoxTpl< T >

Bounding box structure.

Definition at line 25 of file BoundingBox.h.

Constructor & Destructor Documentation

◆ BoundingBoxTpl() [1/2]

template<typename T >
cloudViewer::BoundingBoxTpl< T >::BoundingBoxTpl ( )
inline

Default constructor.

Definition at line 28 of file BoundingBox.h.

◆ BoundingBoxTpl() [2/2]

template<typename T >
cloudViewer::BoundingBoxTpl< T >::BoundingBoxTpl ( const Vector3Tpl< T > &  minCorner,
const Vector3Tpl< T > &  maxCorner
)
inline

Constructor from two vectors (lower min. and upper max. corners)

Definition at line 32 of file BoundingBox.h.

Member Function Documentation

◆ add()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::add ( const Vector3Tpl< T > &  P)
inline

'Enlarges' the bounding box with a point

Definition at line 131 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, cloudViewer::BoundingBoxTpl< T >::m_valid, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by cloudViewer::BoundingBoxTpl< T >::addEigen(), ComputeFacetExtensions(), ccPointPairRegistrationDlg::convertToSphereCenter(), cloudViewer::PointCloudTpl< T >::getBoundingBox(), cloudViewer::ReferenceCloud::getBoundingBox(), GrainsAsEllipsoids::GrainsAsEllipsoids(), cloudViewer::BoundingBoxTpl< T >::operator*=(), cloudViewer::BoundingBoxTpl< T >::operator+=(), and GrainsAsEllipsoids::updateBBoxOnlyOne().

◆ addEigen()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::addEigen ( const Eigen::Vector3d &  point)
inline

Definition at line 260 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::add().

◆ clear()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::clear ( )
inline

Resets the bounding box.

(0,0,0) --> (0,0,0)

Definition at line 125 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, and cloudViewer::BoundingBoxTpl< T >::m_valid.

Referenced by ccPointPairRegistrationDlg::convertToSphereCenter(), cloudViewer::PointCloudTpl< T >::getBoundingBox(), cloudViewer::ReferenceCloud::getBoundingBox(), GrainsAsEllipsoids::GrainsAsEllipsoids(), cloudViewer::BoundingBoxTpl< T >::operator*=(), ecvAnnotationsTool::reset(), cloudViewer::visualization::ViewControl::ResetBoundingBox(), cloudViewer::ModelViewerWidget::StartRender(), and GrainsAsEllipsoids::updateBBoxOnlyOne().

◆ computeVolume()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::computeVolume ( ) const
inline

Returns the bounding-box volume.

Definition at line 192 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm().

◆ contains()

template<typename T >
bool cloudViewer::BoundingBoxTpl< T >::contains ( const Vector3Tpl< T > &  P) const
inline

Returns whether a points is inside the box or not.

Warning: box should be valid!

Definition at line 231 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by ccBoundingBoxEditorDlg::checkBaseInclusion(), and cloudViewer::BoundingBoxTpl< T >::GetPointIndicesWithinBoundingBox().

◆ containsEigen()

template<typename T >
bool cloudViewer::BoundingBoxTpl< T >::containsEigen ( const Eigen::Vector3d &  point) const
inline

Definition at line 236 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ getBounds()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::getBounds ( double  bounds[6]) const
inline

Definition at line 283 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::maxCorner(), cloudViewer::BoundingBoxTpl< T >::minCorner(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ getCenter()

template<typename T >
Vector3Tpl<T> cloudViewer::BoundingBoxTpl< T >::getCenter ( ) const
inline

Returns center.

Definition at line 164 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, and cloudViewer::BoundingBoxTpl< T >::m_bbMin.

Referenced by MainWindow::addToDB(), ccDBRoot::alignCameraWithEntity(), ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), ccTopologyRelation::constructGraphic(), cloudViewer::OrientedBoundingBox::CreateFromAxisAlignedBoundingBox(), ccPropertiesTreeDelegate::fillWithHObject(), ccBoundingBoxEditorDlg::fromClipboardClicked(), ccApplyTransformationDlg::initFromDipAndDipDir(), MakeSquare(), CommandCrossSection::process(), CommandMatchBBCenters::process(), ccInnerRect2DFinder::process(), ccBoundingBoxEditorDlg::reflectChanges(), ccBoundingBoxEditorDlg::toClipboardClicked(), cc2Point5DimEditor::update2DDisplayZoom(), DistanceMapGenerationDlg::updateZoom(), and ccContourExtractorDlg::zoomOn().

◆ GetColor()

template<typename T >
Eigen::Vector3d cloudViewer::BoundingBoxTpl< T >::GetColor ( ) const
inline

Gets the bounding box color.

Definition at line 267 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::color_, and Vector3Tpl< double >::fromArray().

Referenced by cloudViewer::t::geometry::AxisAlignedBoundingBox::FromLegacy().

◆ getDiagNorm()

template<typename T >
T cloudViewer::BoundingBoxTpl< T >::getDiagNorm ( ) const
inline

Returns diagonal length.

Definition at line 172 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), and Vector3Tpl< Type >::norm().

Referenced by MainWindow::addToDB(), ccComparisonDlg::ccComparisonDlg(), qM3C2Tools::GuessBestParams(), IcmFilter::LoadCalibratedImages(), PcdFilter::loadFile(), LoadScan(), NormalEstimation::openInputDialog(), GreedyTriangulation::openInputDialog(), MarchingCubeReconstruction::openInputDialog(), PoissonReconstruction::openInputDialog(), and DistanceMapGenerationDlg::updateZoom().

◆ getDiagNormd()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::getDiagNormd ( ) const
inline

Returns diagonal length (double precision)

Definition at line 175 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), and Vector3Tpl< Type >::normd().

Referenced by ecvPoissonReconDlg::adjustParams(), qPoissonRecon::doAction(), qM3C2Tools::GuessBestParams(), and ccEntityAction::interpolateSFs().

◆ getDiagVec()

template<typename T >
Vector3Tpl<T> cloudViewer::BoundingBoxTpl< T >::getDiagVec ( ) const
inline

Returns diagonal vector.

Definition at line 169 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, and cloudViewer::BoundingBoxTpl< T >::m_bbMin.

Referenced by ComputeFacetExtensions(), cloudViewer::BoundingBoxTpl< T >::computeVolume(), cloudViewer::OrientedBoundingBox::CreateFromAxisAlignedBoundingBox(), ccPropertiesTreeDelegate::fillWithHObject(), ccLibAlgorithms::GetDefaultCloudKernelSize(), cloudViewer::BoundingBoxTpl< T >::getDiagNorm(), cloudViewer::BoundingBoxTpl< T >::getDiagNormd(), cloudViewer::BoundingBoxTpl< T >::getMaxBoxDim(), cloudViewer::BoundingBoxTpl< T >::getMinBoxDim(), MakeSquare(), ccInnerRect2DFinder::process(), ccBoundingBoxEditorDlg::reflectChanges(), qCanupoTools::TrainClassifier(), DistanceMapGenerationDlg::updateZoom(), cloudViewer::BoundingBoxTpl< T >::volume(), and ccContourExtractorDlg::zoomOn().

◆ getMaxBoxDim()

template<typename T >
T cloudViewer::BoundingBoxTpl< T >::getMaxBoxDim ( ) const
inline

Returns maximal box dimension.

Definition at line 185 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), max(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), qCanupo2DViewDialog::trainClassifier(), and qCanupoTools::TrainClassifier().

◆ getMinBoxDim()

template<typename T >
T cloudViewer::BoundingBoxTpl< T >::getMinBoxDim ( ) const
inline

Returns minimal box dimension.

Definition at line 178 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), min(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

Referenced by qFacets::extractFacets().

◆ GetPointIndicesWithinBoundingBox() [1/2]

template<typename T >
std::vector<std::size_t> cloudViewer::BoundingBoxTpl< T >::GetPointIndicesWithinBoundingBox ( const std::vector< Eigen::Vector3d > &  points) const
inline

Definition at line 242 of file BoundingBox.h.

References Vector3Tpl< PointCoordinateType >::fromArrayContainer(), and points.

◆ GetPointIndicesWithinBoundingBox() [2/2]

template<typename T >
std::vector<std::size_t> cloudViewer::BoundingBoxTpl< T >::GetPointIndicesWithinBoundingBox ( const std::vector< Vector3Tpl< T >> &  points) const
inline

Definition at line 248 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::contains(), and points.

◆ getXPercentage()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::getXPercentage ( double  x) const
inline

Definition at line 271 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, and cloudViewer::BoundingBoxTpl< T >::m_bbMin.

◆ getYPercentage()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::getYPercentage ( double  y) const
inline

Definition at line 275 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, and cloudViewer::BoundingBoxTpl< T >::m_bbMin.

◆ getZPercentage()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::getZPercentage ( double  z) const
inline

Definition at line 279 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, and cloudViewer::BoundingBoxTpl< T >::m_bbMin.

◆ isValid()

template<typename T >
bool cloudViewer::BoundingBoxTpl< T >::isValid ( ) const
inline

Returns whether bounding box is valid or not.

Definition at line 203 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_valid.

Referenced by ecvAnnotationsTool::addAssociatedEntity(), ccLibAlgorithms::ApplyScaleMatchingAlgorithm(), ccBoundingBoxEditorDlg::ccBoundingBoxEditorDlg(), ccComputeOctreeDlg::ccComputeOctreeDlg(), ccVolumeCalcTool::ccVolumeCalcTool(), ccBoundingBoxEditorDlg::checkBaseInclusion(), ccEntityAction::computeOctree(), ccVolumeCalcTool::ComputeVolume(), ccVolumeCalcTool::ConvertGridToCloud(), cc2Point5DimEditor::convertGridToCloud(), DistanceMapGenerationDlg::DistanceMapGenerationDlg(), cloudViewer::ModelViewerWidget::EndRender(), ccRasterizeTool::ExportGeoTiff(), ccPropertiesTreeDelegate::fillWithHObject(), ccPropertiesTreeDelegate::fillWithViewProperties(), ccRasterizeTool::generateContours(), cloudViewer::PointCloudTpl< T >::getBoundingBox(), cloudViewer::ReferenceCloud::getBoundingBox(), ccInnerRect2DFinder::init(), ccApplyTransformationDlg::initFromDipAndDipDir(), cloudViewer::BoundingBoxTpl< T >::minDistTo(), NormalEstimation::openInputDialog(), GreedyTriangulation::openInputDialog(), MarchingCubeReconstruction::openInputDialog(), PoissonReconstruction::openInputDialog(), cloudViewer::BoundingBoxTpl< T >::operator+(), cloudViewer::BoundingBoxTpl< T >::operator+=(), CommandCrossSection::process(), ccInnerRect2DFinder::process(), ccBoundingBoxEditorDlg::setBaseBBox(), ecvFilterTool::shiftBox(), ccBoundingBoxEditorDlg::updateCurrentBBox(), ccVolumeCalcTool::updateGrid(), ccRasterizeTool::updateGrid(), ccBoundingBoxEditorDlg::updateXWidth(), ccBoundingBoxEditorDlg::updateYWidth(), DistanceMapGenerationDlg::updateZoom(), ccBoundingBoxEditorDlg::updateZWidth(), ccPointPairRegistrationDlg::zoomGlobalOnRegistrationEntities(), MainWindow::zoomOnEntities(), and MainWindow::zoomOnSelectedEntities().

◆ maxCorner() [1/2]

template<typename T >
Vector3Tpl<T>& cloudViewer::BoundingBoxTpl< T >::maxCorner ( )
inline

Returns max corner.

Definition at line 161 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax.

◆ maxCorner() [2/2]

template<typename T >
const Vector3Tpl<T>& cloudViewer::BoundingBoxTpl< T >::maxCorner ( ) const
inline

Returns max corner (const)

Definition at line 156 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax.

Referenced by ccBoundingBoxEditorDlg::checkBaseInclusion(), ccEntityAction::computeOctree(), cloudViewer::visualization::ViewControl::ConvertFromViewParameters(), ccCropTool::Crop(), DistanceMapGenerationDlg::DistanceMapGenerationDlg(), ccRasterizeTool::ExportGeoTiff(), cloudViewer::t::geometry::AxisAlignedBoundingBox::FromLegacy(), cloudViewer::PointCloudTpl< T >::getBoundingBox(), cloudViewer::ReferenceCloud::getBoundingBox(), cloudViewer::BoundingBoxTpl< T >::getBounds(), MakeSquare(), cloudViewer::BoundingBoxTpl< T >::operator+=(), CommandCrossSection::process(), ccBoundingBoxEditorDlg::reflectChanges(), ecvFilterTool::shiftBox(), cloudViewer::t::geometry::AxisAlignedBoundingBox::ToLegacy(), and DistanceMapGenerationDlg::updateZoom().

◆ minCorner() [1/2]

template<typename T >
Vector3Tpl<T>& cloudViewer::BoundingBoxTpl< T >::minCorner ( )
inline

Returns min corner.

Definition at line 159 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMin.

◆ minCorner() [2/2]

template<typename T >
const Vector3Tpl<T>& cloudViewer::BoundingBoxTpl< T >::minCorner ( ) const
inline

Returns min corner (const)

Definition at line 154 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMin.

Referenced by ccBoundingBoxEditorDlg::checkBaseInclusion(), ccEntityAction::computeOctree(), ccVolumeCalcTool::ComputeVolume(), cloudViewer::visualization::ViewControl::ConvertFromViewParameters(), ccCropTool::Crop(), DistanceMapGenerationDlg::DistanceMapGenerationDlg(), ccRasterizeTool::ExportGeoTiff(), cloudViewer::t::geometry::AxisAlignedBoundingBox::FromLegacy(), ccRasterizeTool::generateContours(), cloudViewer::PointCloudTpl< T >::getBoundingBox(), cloudViewer::ReferenceCloud::getBoundingBox(), cloudViewer::BoundingBoxTpl< T >::getBounds(), MakeSquare(), cloudViewer::BoundingBoxTpl< T >::operator+=(), CommandCrossSection::process(), CommandRasterize::process(), ccBoundingBoxEditorDlg::reflectChanges(), ecvFilterTool::shiftBox(), cloudViewer::t::geometry::AxisAlignedBoundingBox::ToLegacy(), ccRasterizeTool::updateGrid(), and DistanceMapGenerationDlg::updateZoom().

◆ minDistTo()

template<typename T >
T cloudViewer::BoundingBoxTpl< T >::minDistTo ( const BoundingBoxTpl< T > &  bbox) const
inline

Computes min gap (absolute distance) between this bounding-box and another one

Returns
min gap (>=0) or -1 if at least one of the box is not valid

Definition at line 209 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::isValid(), cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, cloudViewer::BoundingBoxTpl< T >::m_valid, Vector3Tpl< Type >::norm(), and Tuple3Tpl< Type >::u.

◆ operator*=() [1/2]

template<typename T >
virtual const BoundingBoxTpl<T>& cloudViewer::BoundingBoxTpl< T >::operator*= ( const SquareMatrixTpl< T > &  mat)
inlinevirtual

Rotates the bounding box.

Definition at line 99 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::add(), cloudViewer::BoundingBoxTpl< T >::clear(), cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, cloudViewer::BoundingBoxTpl< T >::m_valid, Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ operator*=() [2/2]

template<typename T >
virtual const BoundingBoxTpl<T>& cloudViewer::BoundingBoxTpl< T >::operator*= ( T  scaleFactor)
inlinevirtual

Scales the bounding box.

Reimplemented in ccBBox.

Definition at line 89 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, and cloudViewer::BoundingBoxTpl< T >::m_valid.

◆ operator+()

template<typename T >
BoundingBoxTpl<T> cloudViewer::BoundingBoxTpl< T >::operator+ ( const BoundingBoxTpl< T > &  bbox) const
inline

Returns the 'sum' of this bounding-box and another one.

Definition at line 40 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::isValid(), cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, cloudViewer::BoundingBoxTpl< T >::m_valid, max(), min(), cloudViewer::BoundingBoxTpl< T >::setValidity(), Tuple3Tpl< Type >::x, Tuple3Tpl< Type >::y, and Tuple3Tpl< Type >::z.

◆ operator+=() [1/2]

template<typename T >
const BoundingBoxTpl<T>& cloudViewer::BoundingBoxTpl< T >::operator+= ( const BoundingBoxTpl< T > &  bbox)
inline

In place 'sum' of this bounding-box with another one.

Definition at line 59 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::add(), cloudViewer::BoundingBoxTpl< T >::isValid(), cloudViewer::BoundingBoxTpl< T >::maxCorner(), and cloudViewer::BoundingBoxTpl< T >::minCorner().

◆ operator+=() [2/2]

template<typename T >
virtual const BoundingBoxTpl<T>& cloudViewer::BoundingBoxTpl< T >::operator+= ( const Vector3Tpl< T > &  V)
inlinevirtual

Shifts the bounding box with a vector.

Definition at line 69 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, and cloudViewer::BoundingBoxTpl< T >::m_valid.

◆ operator-=()

template<typename T >
virtual const BoundingBoxTpl<T>& cloudViewer::BoundingBoxTpl< T >::operator-= ( const Vector3Tpl< T > &  V)
inlinevirtual

Shifts the bounding box with a vector.

Definition at line 79 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_bbMax, cloudViewer::BoundingBoxTpl< T >::m_bbMin, and cloudViewer::BoundingBoxTpl< T >::m_valid.

◆ SetColor()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::SetColor ( const Eigen::Vector3d &  color)
inline

Sets the bounding box color.

Definition at line 265 of file BoundingBox.h.

References color, and cloudViewer::BoundingBoxTpl< T >::color_.

Referenced by cloudViewer::t::geometry::AxisAlignedBoundingBox::ToLegacy().

◆ setValidity()

template<typename T >
void cloudViewer::BoundingBoxTpl< T >::setValidity ( bool  state)
inline

Sets bonding box validity.

Definition at line 200 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::m_valid.

Referenced by cloudViewer::PointCloudTpl< T >::addPoint(), cloudViewer::SimpleMesh::addTriangle(), cloudViewer::visualization::ViewControl::ConvertFromViewParameters(), GrainsAsEllipsoids::GrainsAsEllipsoids(), cloudViewer::PointCloudTpl< T >::invalidateBoundingBox(), cloudViewer::BoundingBoxTpl< T >::operator+(), and GrainsAsEllipsoids::updateBBoxOnlyOne().

◆ volume()

template<typename T >
double cloudViewer::BoundingBoxTpl< T >::volume ( ) const
inline

Definition at line 262 of file BoundingBox.h.

References cloudViewer::BoundingBoxTpl< T >::getDiagVec(), and Vector3Tpl< Type >::prod().

Member Data Documentation

◆ color_

template<typename T >
CCVector3d cloudViewer::BoundingBoxTpl< T >::color_
protected

The color of the bounding box in RGB.

Definition at line 298 of file BoundingBox.h.

Referenced by cloudViewer::BoundingBoxTpl< T >::GetColor(), and cloudViewer::BoundingBoxTpl< T >::SetColor().

◆ m_bbMax

template<typename T >
Vector3Tpl<T> cloudViewer::BoundingBoxTpl< T >::m_bbMax
protected

Upper max. corner.

Definition at line 296 of file BoundingBox.h.

Referenced by cloudViewer::BoundingBoxTpl< T >::add(), cloudViewer::BoundingBoxTpl< T >::clear(), cloudViewer::BoundingBoxTpl< T >::contains(), cloudViewer::BoundingBoxTpl< T >::containsEigen(), cloudViewer::BoundingBoxTpl< T >::getCenter(), cloudViewer::BoundingBoxTpl< T >::getDiagVec(), cloudViewer::BoundingBoxTpl< T >::getXPercentage(), cloudViewer::BoundingBoxTpl< T >::getYPercentage(), cloudViewer::BoundingBoxTpl< T >::getZPercentage(), cloudViewer::BoundingBoxTpl< T >::maxCorner(), cloudViewer::BoundingBoxTpl< T >::minDistTo(), cloudViewer::BoundingBoxTpl< T >::operator*=(), cloudViewer::BoundingBoxTpl< T >::operator+(), cloudViewer::BoundingBoxTpl< T >::operator+=(), and cloudViewer::BoundingBoxTpl< T >::operator-=().

◆ m_bbMin

template<typename T >
Vector3Tpl<T> cloudViewer::BoundingBoxTpl< T >::m_bbMin
protected

Lower min. corner.

Definition at line 294 of file BoundingBox.h.

Referenced by cloudViewer::BoundingBoxTpl< T >::add(), cloudViewer::BoundingBoxTpl< T >::clear(), cloudViewer::BoundingBoxTpl< T >::contains(), cloudViewer::BoundingBoxTpl< T >::containsEigen(), cloudViewer::BoundingBoxTpl< T >::getCenter(), cloudViewer::BoundingBoxTpl< T >::getDiagVec(), cloudViewer::BoundingBoxTpl< T >::getXPercentage(), cloudViewer::BoundingBoxTpl< T >::getYPercentage(), cloudViewer::BoundingBoxTpl< T >::getZPercentage(), cloudViewer::BoundingBoxTpl< T >::minCorner(), cloudViewer::BoundingBoxTpl< T >::minDistTo(), cloudViewer::BoundingBoxTpl< T >::operator*=(), cloudViewer::BoundingBoxTpl< T >::operator+(), cloudViewer::BoundingBoxTpl< T >::operator+=(), and cloudViewer::BoundingBoxTpl< T >::operator-=().

◆ m_valid

template<typename T >
bool cloudViewer::BoundingBoxTpl< T >::m_valid
protected

Validity.

Definition at line 300 of file BoundingBox.h.

Referenced by cloudViewer::BoundingBoxTpl< T >::add(), cloudViewer::BoundingBoxTpl< T >::clear(), cloudViewer::BoundingBoxTpl< T >::isValid(), cloudViewer::BoundingBoxTpl< T >::minDistTo(), cloudViewer::BoundingBoxTpl< T >::operator*=(), cloudViewer::BoundingBoxTpl< T >::operator+(), cloudViewer::BoundingBoxTpl< T >::operator+=(), cloudViewer::BoundingBoxTpl< T >::operator-=(), and cloudViewer::BoundingBoxTpl< T >::setValidity().

The documentation for this class was generated from the following file:
