ccCloudLayersDlg Class Reference

#include <ccCloudLayersDlg.h>

Inheritance diagram for ccCloudLayersDlg:

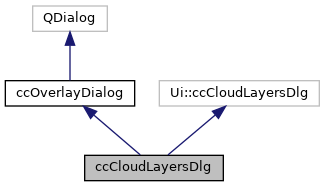

Collaboration diagram for ccCloudLayersDlg:

Public Member Functions
	ccCloudLayersDlg (ecvMainAppInterface *app, QWidget *parent=nullptr)
	Default constructor. More...
virtual	~ccCloudLayersDlg ()
	Destructor. More...
bool	start () override
	inherited from ccOverlayDialog More...
void	stop (bool accepted) override
	Stops process/dialog. More...
void	setPointCloud (ccPointCloud *cloud)
Public Member Functions inherited from ccOverlayDialog
	ccOverlayDialog (QWidget *parent=nullptr, Qt::WindowFlags flags=Qt::FramelessWindowHint|Qt::Tool)
	Default constructor. More...
	~ccOverlayDialog () override
	Destructor. More...
virtual bool	linkWith (QWidget *win)
	Links the overlay dialog with a MDI window. More...
void	reject () override
void	addOverridenShortcut (Qt::Key key)
bool	started () const
	Returns whether the tool is currently started or not. More...

Additional Inherited Members
Signals inherited from ccOverlayDialog
void	processFinished (bool accepted)
	Signal emitted when process is finished. More...
void	shortcutTriggered (int key)
	Signal emitted when an overridden key shortcut is pressed. More...
void	shown ()
	Signal emitted when a 'show' event is detected. More...
Protected Slots inherited from ccOverlayDialog
virtual void	onLinkedWindowDeletion (QObject *object=nullptr)
	Slot called when the linked window is deleted (calls 'onClose') More...
Protected Member Functions inherited from ccOverlayDialog
bool	eventFilter (QObject *obj, QEvent *e) override
Protected Attributes inherited from ccOverlayDialog
QWidget *	m_associatedWin
	Associated (MDI) window. More...
bool	m_processing
	Running/processing state. More...
QList< int >	m_overriddenKeys
	Overridden keys. More...

Detailed Description

Definition at line 39 of file ccCloudLayersDlg.h.

Constructor & Destructor Documentation

ccCloudLayersDlg()

ccCloudLayersDlg::ccCloudLayersDlg ( ecvMainAppInterface *  app, QWidget *  parent = nullptr  )

explicit

Default constructor.

Definition at line 24 of file ccCloudLayersDlg.cpp.

References ccAsprsModel::codeChanged(), ccAsprsModel::colorChanged(), ecvMainAppInterface::getActiveWindow(), and ccDrawableObject::setVisible().

~ccCloudLayersDlg()

ccCloudLayersDlg::~ccCloudLayersDlg ( )

virtual

Destructor.

Definition at line 79 of file ccCloudLayersDlg.cpp.

References setPointCloud().

Member Function Documentation

setPointCloud()

void ccCloudLayersDlg::setPointCloud

(

ccPointCloud *

cloud

)

Definition at line 135 of file ccCloudLayersDlg.cpp.

References ccCloudLayersHelper::getScalarFields().

Referenced by qCloudLayers::doAction(), stop(), and ~ccCloudLayersDlg().

start()

bool ccCloudLayersDlg::start ( )

overridevirtual

inherited from ccOverlayDialog

Reimplemented from ccOverlayDialog.

Definition at line 101 of file ccCloudLayersDlg.cpp.

References ecvMainAppInterface::freezeUI(), ccAsprsModel::load(), ecvDisplayTools::mouseMoved(), ccOverlayDialog::start(), and ecvDisplayTools::TheInstance().

Referenced by qCloudLayers::doAction().

stop()

void ccCloudLayersDlg::stop ( bool  accepted )

overridevirtual

Stops process/dialog.

Automatically emits the 'processFinished' signal (with input state as argument).

Parameters

accepted

process/dialog result

Reimplemented from ccOverlayDialog.

Definition at line 119 of file ccCloudLayersDlg.cpp.

References ecvMainAppInterface::freezeUI(), ccDrawableObject::isVisible(), ccCloudLayersHelper::keepCurrentSFVisible(), setPointCloud(), and ccOverlayDialog::stop().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/plugins/core/Standard/qCloudLayers/include/ccCloudLayersDlg.h
• /root/ACloudViewer/plugins/core/Standard/qCloudLayers/src/ccCloudLayersDlg.cpp
