SphericalRepresentation Class Reference

#include <E57Header.h>

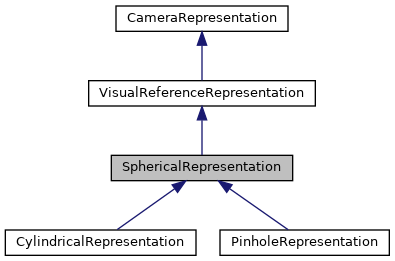

Inheritance diagram for SphericalRepresentation:

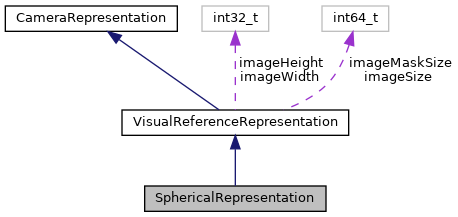

Collaboration diagram for SphericalRepresentation:

Public Member Functions
Image2DProjection	getType () override
Public Member Functions inherited from CameraRepresentation
virtual	~CameraRepresentation ()=default

Public Attributes
double	pixelWidth
double	pixelHeight
Public Attributes inherited from VisualReferenceRepresentation
Image2DType	imageType
	image type. More...
int64_t	imageSize
	size of image data in BlobNode. More...
int64_t	imageMaskSize
	size of image mask data in BlobNode (if any). More...
int32_t	imageWidth
	image width (in pixels). Shall be positive More...
int32_t	imageHeight
	image height (in pixels). Shall be positive More...

Detailed Description

Structure that stores an image that is mapped from 3D using a spherical projection model From "E57 Simple API" by Stan Coleby

Definition at line 229 of file E57Header.h.

Member Function Documentation

getType()

Image2DProjection SphericalRepresentation::getType ( )

inlineoverridevirtual

Reimplemented from VisualReferenceRepresentation.

Reimplemented in CylindricalRepresentation, and PinholeRepresentation.

Definition at line 231 of file E57Header.h.

References E57_SPHERICAL.

Member Data Documentation

pixelHeight

double SphericalRepresentation::pixelHeight

The height of a pixel in the image (in radians). Shall be positive.

Definition at line 235 of file E57Header.h.

Referenced by LoadImage().

pixelWidth

double SphericalRepresentation::pixelWidth

The width of a pixel in the image (in radians). Shall be positive

Definition at line 233 of file E57Header.h.

Referenced by LoadImage().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/plugins/core/IO/qE57IO/include/E57Header.h
