PyGenericIndexedCloud< GenericIndexedCloudBase > Class Template Reference

#include <cloudbase.h>

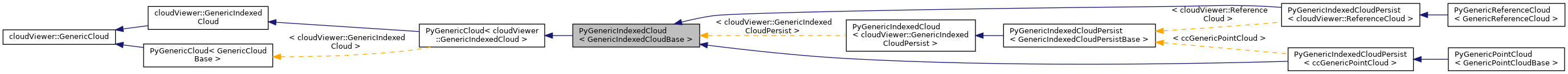

Inheritance diagram for PyGenericIndexedCloud< GenericIndexedCloudBase >:

Collaboration diagram for PyGenericIndexedCloud< GenericIndexedCloudBase >:

Public Member Functions
const CCVector3 *	getPoint (unsigned index) const override
	Returns the ith point. More...
void	getPoint (unsigned index, CCVector3 &P) const override
	Returns the ith point. More...
void	getPoint (unsigned index, double P[3]) const override
Public Member Functions inherited from PyGenericCloud< cloudViewer::GenericIndexedCloud >
unsigned	size () const override
	Returns the number of points. More...
void	forEach (cloudViewer::GenericCloud::genericPointAction action) override
	Fast iteration mechanism. More...
void	getBoundingBox (CCVector3 &bbMin, CCVector3 &bbMax) override
	Returns the cloud bounding box. More...
void	placeIteratorAtBeginning () override
	Sets the cloud iterator at the beginning. More...
const CCVector3 *	getNextPoint () override
	Returns the next point (relatively to the global iterator position) More...
bool	enableScalarField () override
	Enables the scalar field associated to the cloud. More...
bool	isScalarFieldEnabled () const override
	Returns true if the scalar field is enabled, false otherwise. More...
void	setPointScalarValue (unsigned pointIndex, ScalarType value) override
	Sets the ith point associated scalar value. More...
ScalarType	getPointScalarValue (unsigned pointIndex) const override
	Returns the ith point associated scalar value. More...
Public Member Functions inherited from cloudViewer::GenericIndexedCloud
	~GenericIndexedCloud () override=default
	Default destructor. More...
virtual bool	normalsAvailable () const
	Returns whether normals are available. More...
virtual const CCVector3 *	getNormal (unsigned index) const
	If per-point normals are available, returns the one at a specific index. More...
Public Member Functions inherited from cloudViewer::GenericCloud
	GenericCloud ()=default
	Default constructor. More...
virtual	~GenericCloud ()=default
	Default destructor. More...
virtual bool	hasPoints () const
virtual unsigned char	testVisibility (const CCVector3 &P) const

Additional Inherited Members
Public Types inherited from cloudViewer::GenericCloud
using	genericPointAction = std::function< void(const CCVector3 &, ScalarType &)>
	Generic function applied to a point (used by foreach) More...

Detailed Description

template<class GenericIndexedCloudBase = cloudViewer::GenericIndexedCloud>
class PyGenericIndexedCloud< GenericIndexedCloudBase >

Definition at line 55 of file cloudbase.h.

Member Function Documentation

getPoint() [1/3]

template<class GenericIndexedCloudBase = cloudViewer::GenericIndexedCloud>

const CCVector3* PyGenericIndexedCloud< GenericIndexedCloudBase >::getPoint ( unsigned  index ) const

inlineoverridevirtual

Returns the ith point.

Virtual method to request a point with a specific index. WARNINGS:

• the returned object may not be persistent!
• THIS METHOD MAY NOT BE COMPATIBLE WITH PARALLEL STRATEGIES (see the DgmOctree::executeFunctionForAllCellsAtLevel_MT and DgmOctree::executeFunctionForAllCellsAtStartingLevel_MT methods). Consider the other version of getPoint instead or the GenericIndexedCloudPersist class.

  Parameters

  index

  of the requested point (between 0 and the cloud size minus 1)

  Returns

  the requested point (undefined behavior if index is invalid)

Implements cloudViewer::GenericIndexedCloud.

Definition at line 59 of file cloudbase.h.

getPoint() [2/3]

template<class GenericIndexedCloudBase = cloudViewer::GenericIndexedCloud>

void PyGenericIndexedCloud< GenericIndexedCloudBase >::getPoint ( unsigned  index, CCVector3 &  P  ) const

inlineoverridevirtual

Returns the ith point.

Virtual method to request a point with a specific index. Index must be valid (undefined behavior if index is invalid)

Parameters

index	of the requested point (between 0 and the cloud size minus 1)
P	output point

Implements cloudViewer::GenericIndexedCloud.

Definition at line 63 of file cloudbase.h.

getPoint() [3/3]

template<class GenericIndexedCloudBase = cloudViewer::GenericIndexedCloud>

void PyGenericIndexedCloud< GenericIndexedCloudBase >::getPoint ( unsigned  index, double  P[3]  ) const

inlineoverridevirtual

Reimplemented from cloudViewer::GenericIndexedCloud.

Definition at line 66 of file cloudbase.h.

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/Python/pybind/geometry/cloudbase.h
