vtkPVTrackballRoll Class Reference

#include <vtkPVTrackballRoll.h>

Inheritance diagram for vtkPVTrackballRoll:
Inheritance graph
[legend]

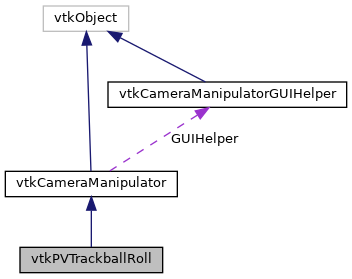

Collaboration diagram for vtkPVTrackballRoll:
Collaboration graph
[legend]

Public Member Functions

 vtkTypeMacro (vtkPVTrackballRoll, vtkCameraManipulator)

void PrintSelf (ostream &os, vtkIndent indent) override

void OnMouseMove (int x, int y, vtkRenderer *ren, vtkRenderWindowInteractor *rwi) override

void OnButtonDown (int x, int y, vtkRenderer *ren, vtkRenderWindowInteractor *rwi) override

void OnButtonUp (int x, int y, vtkRenderer *ren, vtkRenderWindowInteractor *rwi) override

- Public Member Functions inherited from vtkCameraManipulator
 vtkTypeMacro (vtkCameraManipulator, vtkObject)

void PrintSelf (ostream &os, vtkIndent indent) override

virtual void StartInteraction ()

virtual void EndInteraction ()

virtual void OnKeyUp (vtkRenderWindowInteractor *iren)

virtual void OnKeyDown (vtkRenderWindowInteractor *iren)

 vtkSetMacro (Button, int)

 vtkGetMacro (Button, int)

 vtkSetMacro (Shift, int)

 vtkGetMacro (Shift, int)

 vtkBooleanMacro (Shift, int)

 vtkSetMacro (Control, int)

 vtkGetMacro (Control, int)

 vtkBooleanMacro (Control, int)

 vtkSetVector3Macro (Center, double)

 vtkGetVector3Macro (Center, double)

 vtkSetMacro (RotationFactor, double)

 vtkGetMacro (RotationFactor, double)

 vtkSetStringMacro (ManipulatorName)

 vtkGetStringMacro (ManipulatorName)

void SetGUIHelper (vtkCameraManipulatorGUIHelper *)

 vtkGetObjectMacro (GUIHelper, vtkCameraManipulatorGUIHelper)


Static Public Member Functions

static vtkPVTrackballRoll * New ()

- Static Public Member Functions inherited from vtkCameraManipulator
static vtkCameraManipulator * New ()


Protected Member Functions

 vtkPVTrackballRoll ()

 ~vtkPVTrackballRoll () override

 vtkPVTrackballRoll (const vtkPVTrackballRoll &)=delete

void operator= (const vtkPVTrackballRoll &)=delete

- Protected Member Functions inherited from vtkCameraManipulator
 vtkCameraManipulator ()

 ~vtkCameraManipulator () override

void ComputeDisplayCenter (vtkRenderer *ren)


Additional Inherited Members

- Protected Attributes inherited from vtkCameraManipulator
char * ManipulatorName

int Button

int Shift

int Control

double Center [3]

double RotationFactor

double DisplayCenter [2]

vtkCameraManipulatorGUIHelper * GUIHelper


Detailed Description

Definition at line 13 of file vtkPVTrackballRoll.h.

Constructor & Destructor Documentation

◆ vtkPVTrackballRoll() [1/2]

vtkPVTrackballRoll::vtkPVTrackballRoll ( )
protected

Definition at line 28 of file vtkPVTrackballRoll.cxx.

◆ ~vtkPVTrackballRoll()

vtkPVTrackballRoll::~vtkPVTrackballRoll ( )
overrideprotected

Definition at line 33 of file vtkPVTrackballRoll.cxx.

◆ vtkPVTrackballRoll() [2/2]

vtkPVTrackballRoll::vtkPVTrackballRoll ( const vtkPVTrackballRoll &  )
protecteddelete

Member Function Documentation

◆ New()

static vtkPVTrackballRoll* vtkPVTrackballRoll::New ( )
static

Referenced by vtkPVTrackballMultiRotate::vtkPVTrackballMultiRotate().

◆ OnButtonDown()

void vtkPVTrackballRoll::OnButtonDown ( int  x,
int  y,
vtkRenderer *  ren,
vtkRenderWindowInteractor *  rwi
)
overridevirtual

Reimplemented from vtkCameraManipulator.

Definition at line 38 of file vtkPVTrackballRoll.cxx.

◆ OnButtonUp()

void vtkPVTrackballRoll::OnButtonUp ( int  x,
int  y,
vtkRenderer *  ren,
vtkRenderWindowInteractor *  rwi
)
overridevirtual

Reimplemented from vtkCameraManipulator.

Definition at line 43 of file vtkPVTrackballRoll.cxx.

◆ OnMouseMove()

void vtkPVTrackballRoll::OnMouseMove ( int  x,
int  y,
vtkRenderer *  ren,
vtkRenderWindowInteractor *  rwi
)
overridevirtual

Event bindings controlling the effects of pressing mouse buttons or moving the mouse.

Reimplemented from vtkCameraManipulator.

Definition at line 48 of file vtkPVTrackballRoll.cxx.

References vtkCameraManipulator::Center, vtkCameraManipulator::ComputeDisplayCenter(), vtkCameraManipulator::DisplayCenter, NULL, x, and y.

◆ operator=()

void vtkPVTrackballRoll::operator= ( const vtkPVTrackballRoll &  )
protecteddelete

◆ PrintSelf()

void vtkPVTrackballRoll::PrintSelf ( ostream &  os,
vtkIndent  indent
)
override

Definition at line 104 of file vtkPVTrackballRoll.cxx.

◆ vtkTypeMacro()

vtkPVTrackballRoll::vtkTypeMacro ( vtkPVTrackballRoll  ,
vtkCameraManipulator
)
The documentation for this class was generated from the following files:
