Standard parameters for GL displays/viewports. More...

#include <ecvViewportParameters.h>

Inheritance diagram for ecvViewportParameters:

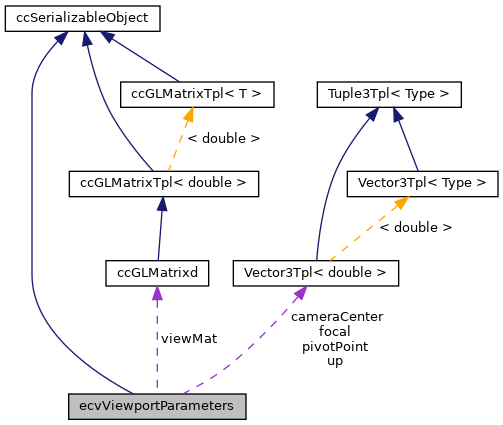

Collaboration diagram for ecvViewportParameters:

[legend]

Public Member Functions
	ecvViewportParameters ()
	Default constructor. More...

	ecvViewportParameters (const ecvViewportParameters &params)
	Copy constructor. More...

bool	isSerializable () const override
	Returns whether object is serializable of not. More...

bool	toFile (QFile &out, short dataVersion) const override
	Saves data to binary stream. More...

short	minimumFileVersion () const override
	Returns the minimum file version required to save this instance. More...

bool	fromFile (QFile &in, short dataVersion, int flags, LoadedIDMap &oldToNewIDMap) override
	Loads data from binary stream. More...

void	setPivotPoint (const CCVector3d &P, bool autoUpdateFocal=true)
	Sets the pivot point (for object-centered view mode) More...

const CCVector3d &	getPivotPoint () const
	Returns the pivot point (for object-centered view mode) More...

void	setCameraCenter (const CCVector3d &C, bool autoUpdateFocal=true)
	Sets the camera center. More...

const CCVector3d &	getCameraCenter () const
	Returns the camera center. More...

void	setFocalDistance (double distance)
	Sets the 'focal' distance. More...

double	getFocalDistance () const
	Computes the 'focal' distance. More...

ccGLMatrixd	computeViewMatrix () const
	Computes the view matrix. More...

ccGLMatrixd	computeScaleMatrix (const QRect &glViewport) const
	Computes the scale matrix. More...

CCVector3d	getViewDir () const
	Returns the viewing direction. More...

CCVector3d	getUpDir () const
	Returns the up direction. More...

const CCVector3d &	getRotationCenter () const
	Returns the view rotation 'center'. More...

double	computeDistanceToHalfWidthRatio () const
	Computes the ratio 'distance to half width' (based on the current FOV) More...

double	computeDistanceToWidthRatio () const
	Computes the ratio 'distance to width' (based on the current FOV) More...

double	computeWidthAtFocalDist () const
	Computes the object 'width' at the 'focal' distance. More...

double	computePixelSize (int glWidth) const
	Computes the pixel size at the 'focal' distance. More...

Public Member Functions inherited from ccSerializableObject
virtual	~ccSerializableObject ()=default
	Destructor. More...

Static Public Member Functions
static double	IncrementToZNearCoef (int i, int iMax)

static int	ZNearCoefToIncrement (double coef, int iMax)

Static Public Member Functions inherited from ccSerializableObject
static bool	WriteError ()
	Sends a custom error message (write error) and returns 'false'. More...

static bool	ReadError ()
	Sends a custom error message (read error) and returns 'false'. More...

static bool	MemoryError ()
	Sends a custom error message (not enough memory) and returns 'false'. More...

static bool	CorruptError ()
	Sends a custom error message (corrupted file) and returns 'false'. More...

Public Attributes
ccGLMatrixd	viewMat
	Visualization matrix (rotation only) More...

float	defaultPointSize
	Point size. More...

float	defaultLineWidth
	Line width. More...

float	pixelSize
	Current pixel size (in 'current unit'/pixel) More...

float	zoom
	Current zoom. More...

bool	perspectiveView
	Perspective view state. More...

bool	objectCenteredView

double	zNearCoef
	Theoretical perspective 'zNear' relative position. More...

double	zNear
	Actual perspective 'zNear' value. More...

double	zFar
	Actual perspective 'zFar' value. More...

CCVector3d	focal

CCVector3d	up

float	fov_deg
	Camera F.O.V. (field of view) in degrees. More...

float	cameraAspectRatio
	Camera aspect ratio. More...

Protected Attributes
double	focalDistance
	Focal distance. More...

CCVector3d	pivotPoint
	Rotation pivot point (for object-centered view modes) More...

CCVector3d	cameraCenter
	Camera center. More...

Additional Inherited Members
Public Types inherited from ccSerializableObject
enum	DeserializationFlags { DF_POINT_COORDS_64_BITS , DF_SCALAR_VAL_32_BITS = 2 }
	Deserialization flags (bit-field) More...

typedef QMultiMap< unsigned, unsigned >	LoadedIDMap
	Map of loaded unique IDs (old ID --> new ID) More...

Detailed Description

Standard parameters for GL displays/viewports.

Definition at line 18 of file ecvViewportParameters.h.

Constructor & Destructor Documentation

◆ ecvViewportParameters() [1/2]

ecvViewportParameters::ecvViewportParameters ( )

Default constructor.

Definition at line 16 of file ecvViewportParameters.cpp.

References ccGLMatrixTpl< T >::toIdentity(), and viewMat.

◆ ecvViewportParameters() [2/2]

ecvViewportParameters::ecvViewportParameters ( const ecvViewportParameters & params )

Copy constructor.

Definition at line 36 of file ecvViewportParameters.cpp.

Member Function Documentation

◆ computeDistanceToHalfWidthRatio()

double ecvViewportParameters::computeDistanceToHalfWidthRatio ( ) const

Computes the ratio 'distance to half width' (based on the current FOV)

Half width = ratio * distance = tan(fov / 2) * distance

Definition at line 312 of file ecvViewportParameters.cpp.

References cloudViewer::DegreesToRadians(), and fov_deg.

Referenced by computeDistanceToWidthRatio(), define_ccViewPortParameters(), and GamepadInput::update().

◆ computeDistanceToWidthRatio()

double ecvViewportParameters::computeDistanceToWidthRatio ( ) const

Computes the ratio 'distance to width' (based on the current FOV)

Width = ratio * distance = (2 * tan(fov / 2)) * distance

Definition at line 317 of file ecvViewportParameters.cpp.

References computeDistanceToHalfWidthRatio().

Referenced by computeWidthAtFocalDist(), and define_ccViewPortParameters().

◆ computePixelSize()

double ecvViewportParameters::computePixelSize ( int glWidth ) const

Computes the pixel size at the 'focal' distance.

Definition at line 325 of file ecvViewportParameters.cpp.

References computeWidthAtFocalDist().

Referenced by define_ccViewPortParameters().

◆ computeScaleMatrix()

ccGLMatrixd ecvViewportParameters::computeScaleMatrix ( const QRect & glViewport ) const

Computes the scale matrix.

Definition at line 248 of file ecvViewportParameters.cpp.

References cameraAspectRatio, ccGLMatrixTpl< T >::data(), and ccGLMatrixTpl< T >::toIdentity().

◆ computeViewMatrix()

ccGLMatrixd ecvViewportParameters::computeViewMatrix ( ) const

Computes the view matrix.

Definition at line 225 of file ecvViewportParameters.cpp.

References cameraCenter, getRotationCenter(), ccGLMatrixTpl< T >::getTranslationAsVec3D(), ccGLMatrixTpl< T >::setTranslation(), ccGLMatrixTpl< T >::toIdentity(), and viewMat.

Referenced by define_ccViewPortParameters(), and qAnimationDlg::init().

◆ computeWidthAtFocalDist()

double ecvViewportParameters::computeWidthAtFocalDist ( ) const

Computes the object 'width' at the 'focal' distance.

Definition at line 321 of file ecvViewportParameters.cpp.

References computeDistanceToWidthRatio(), and getFocalDistance().

Referenced by Mouse3DInput::Apply(), computePixelSize(), define_ccViewPortParameters(), ccMouseCircle::draw(), and GamepadInput::update().

◆ fromFile()

bool ecvViewportParameters::fromFile	(	QFile &	in,
		short	dataVersion,
		int	flags,
		LoadedIDMap &	oldToNewIDMap
	)

overridevirtual

Loads data from binary stream.

Parameters

in	input file (already opened)
dataVersion	file version (for version-specific deserialization)
flags	deserialization flags (see ccSerializableObject::DeserializationFlags)
oldToNewIDMap	map to link old IDs with new IDs

Returns

success

Note: When implementing, use dataVersion checks to handle different

versions:

if (dataVersion >= X) { read new field } else { use default value } This ensures forward compatibility with older file formats.

Reimplemented from ccSerializableObject.

Definition at line 97 of file ecvViewportParameters.cpp.

◆ getCameraCenter()

const CCVector3d& ecvViewportParameters::getCameraCenter ( ) const

inline

Returns the camera center.

Definition at line 46 of file ecvViewportParameters.h.

Referenced by define_ccViewPortParameters(), cc2DViewportLabel::drawMeOnly(), cloudViewer::ViewInterpolate::interpolate(), ViewInterpolate::interpolate(), and ecvDisplayTools::SetViewportParameters().

◆ getFocalDistance()

double ecvViewportParameters::getFocalDistance ( ) const

inline

Computes the 'focal' distance.

Definition at line 54 of file ecvViewportParameters.h.

Referenced by Mouse3DInput::Apply(), computeWidthAtFocalDist(), define_ccViewPortParameters(), cloudViewer::ViewInterpolate::interpolate(), and ViewInterpolate::interpolate().

◆ getPivotPoint()

const CCVector3d& ecvViewportParameters::getPivotPoint ( ) const

inline

Returns the pivot point (for object-centered view mode)

Definition at line 39 of file ecvViewportParameters.h.

Referenced by define_ccViewPortParameters(), cc2DViewportLabel::drawMeOnly(), cloudViewer::ViewInterpolate::interpolate(), ViewInterpolate::interpolate(), QVTKWidgetCustom::mouseMoveEvent(), and ecvDisplayTools::SetViewportParameters().

◆ getRotationCenter()

const CCVector3d & ecvViewportParameters::getRotationCenter ( ) const

Returns the view rotation 'center'.

The rotation center is defined as:

the pivot point in object-centered view mode
the camera center in viewer-centered view mode

Definition at line 221 of file ecvViewportParameters.cpp.

References cameraCenter, objectCenteredView, and pivotPoint.

Referenced by computeViewMatrix(), and define_ccViewPortParameters().

◆ getUpDir()

CCVector3d ecvViewportParameters::getUpDir ( ) const

Returns the up direction.

This is the vertical direction of the screen (pointing 'upward') in the world coordinate system.

Definition at line 277 of file ecvViewportParameters.cpp.

References ccGLMatrixTpl< T >::data(), Vector3Tpl< Type >::normalize(), and viewMat.

Referenced by define_ccViewPortParameters().

◆ getViewDir()

CCVector3d ecvViewportParameters::getViewDir ( ) const

Returns the viewing direction.

This is the direction normal to the screen (pointing 'forward') in the world coordinate system.

Definition at line 267 of file ecvViewportParameters.cpp.

References ccGLMatrixTpl< T >::data(), Vector3Tpl< Type >::normalize(), and viewMat.

Referenced by define_ccViewPortParameters().

◆ IncrementToZNearCoef()

double ecvViewportParameters::IncrementToZNearCoef	(	int	i,
		int	iMax
	)

static

Helper: converts an integer (increment) in [0 iMax] to a double (zNear) value in [0.001 1]

Definition at line 203 of file ecvViewportParameters.cpp.

Referenced by QVTKWidgetCustom::wheelEvent().

◆ isSerializable()

bool ecvViewportParameters::isSerializable ( ) const

inlineoverridevirtual

Returns whether object is serializable of not.

Reimplemented from ccSerializableObject.

Definition at line 27 of file ecvViewportParameters.h.

◆ minimumFileVersion()

short ecvViewportParameters::minimumFileVersion ( ) const

overridevirtual

Returns the minimum file version required to save this instance.

To be overridden by subclasses to indicate their minimum required version. This enables the system to determine:

Forward compatibility: newer software can read older files (dataVersion check in fromFile)
Backward compatibility: determine minimum version needed to save current data
Returns
minimum file version required for this object

Implements ccSerializableObject.

Definition at line 92 of file ecvViewportParameters.cpp.

References ccGLMatrixTpl< T >::minimumFileVersion(), and viewMat.

Referenced by cc2DViewportObject::minimumFileVersion_MeOnly().
