Generic Measurement Tools interface. More...

#include <ecvGenericMeasurementTools.h>

Inheritance diagram for ecvGenericMeasurementTools:

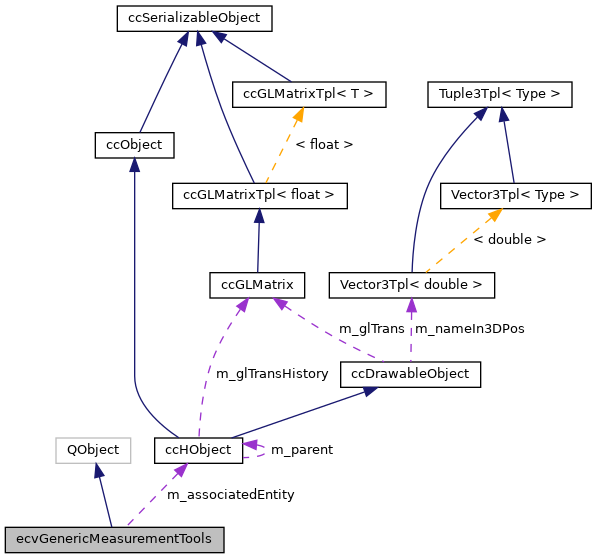

Collaboration diagram for ecvGenericMeasurementTools:

[legend]

Public Types
enum	MeasurementType { DISTANCE_WIDGET , CONTOUR_WIDGET , PROTRACTOR_WIDGET }

Signals
void	measurementChanged ()
	Signal sent when the measurement changes. More...

void	pointPickingRequested (int pointIndex)

void	pointPickingCancelled ()
	Signal sent when point picking is cancelled. More...

Public Member Functions
	ecvGenericMeasurementTools (MeasurementType type=MeasurementType::DISTANCE_WIDGET)
	Default constructor. More...

virtual	~ecvGenericMeasurementTools ()
	Destructor. More...

virtual bool	setInputData (ccHObject *entity)=0
	Sets the input entity. More...

virtual bool	start ()=0
	Starts the measurement tool. More...

virtual void	reset ()=0
	Resets the measurement tool. More...

virtual void	clear ()=0
	Clears the measurement tool. More...

virtual void	update ()
	Updates the display. More...

virtual QWidget *	getMeasurementWidget ()=0
	Returns the measurement widget. More...

virtual ccHObject *	getOutput () const =0
	Returns the output (if any) More...

virtual double	getMeasurementValue () const =0
	Get measurement value (distance or angle) More...

virtual void	getPoint1 (double pos[3]) const =0
	Get point 1 coordinates. More...

virtual void	getPoint2 (double pos[3]) const =0
	Get point 2 coordinates. More...

virtual void	getCenter (double pos[3]) const =0
	Get center point coordinates (for angle/protractor) More...

virtual void	setPoint1 (double pos[3])=0
	Set point 1 coordinates. More...

virtual void	setPoint2 (double pos[3])=0
	Set point 2 coordinates. More...

virtual void	setCenter (double pos[3])=0
	Set center point coordinates (for angle/protractor) More...

virtual void	setColor (double r, double g, double b)=0
	Set measurement color (RGB values in range [0.0, 1.0]) More...

virtual void	lockInteraction ()=0
	Lock tool interaction (disable VTK widget and UI controls) More...

virtual void	unlockInteraction ()=0
	Unlock tool interaction (enable VTK widget and UI controls) More...

virtual void	setInstanceLabel (const QString &label)=0
	Set instance label suffix (e.g., "#1", "#2") for display in 3D view. More...

virtual void	setFontFamily (const QString &family)=0

virtual void	setFontSize (int size)=0
	Set font size for measurement labels. More...

virtual void	setBold (bool bold)=0
	Set font bold state for measurement labels. More...

virtual void	setItalic (bool italic)=0
	Set font italic state for measurement labels. More...

virtual void	setShadow (bool shadow)=0
	Set font shadow state for measurement labels. More...

virtual void	setFontOpacity (double opacity)=0
	Set font opacity for measurement labels (0.0 to 1.0) More...

virtual void	setFontColor (double r, double g, double b)=0
	Set font color for measurement labels (RGB values 0.0-1.0) More...

virtual void	setHorizontalJustification (const QString &justification)=0

virtual void	setVerticalJustification (const QString &justification)=0

virtual void	setupShortcuts (QWidget *win)
	Setup keyboard shortcuts bound to the render window widget. More...

virtual void	disableShortcuts ()
	Disable keyboard shortcuts (called before tool destruction) More...

virtual void	clearPickingCache ()
	Clear picking cache (called when scene/camera changes) More...

MeasurementType	getMeasurementType ()

Protected Member Functions
virtual void	initialize ()=0

Protected Attributes
MeasurementType	m_measurementType

ccHObject *	m_associatedEntity

Detailed Description

Generic Measurement Tools interface.

Definition at line 19 of file ecvGenericMeasurementTools.h.

Member Enumeration Documentation

◆ MeasurementType

enum ecvGenericMeasurementTools::MeasurementType

Enumerator
DISTANCE_WIDGET
CONTOUR_WIDGET
PROTRACTOR_WIDGET

Definition at line 22 of file ecvGenericMeasurementTools.h.

Constructor & Destructor Documentation

◆ ecvGenericMeasurementTools()

ecvGenericMeasurementTools::ecvGenericMeasurementTools ( MeasurementType type = MeasurementType::DISTANCE_WIDGET )

Default constructor.

Parameters

type	MeasurementType type

Definition at line 12 of file ecvGenericMeasurementTools.cpp.

◆ ~ecvGenericMeasurementTools()

ecvGenericMeasurementTools::~ecvGenericMeasurementTools ( )

virtual

Destructor.

Definition at line 15 of file ecvGenericMeasurementTools.cpp.

Member Function Documentation

◆ clear()

virtual void ecvGenericMeasurementTools::clear ( )

pure virtual

Clears the measurement tool.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::removeInstance().

◆ clearPickingCache()

virtual void ecvGenericMeasurementTools::clearPickingCache ( )

inlinevirtual

Clear picking cache (called when scene/camera changes)

Reimplemented in PclMeasurementTools.

Definition at line 125 of file ecvGenericMeasurementTools.h.

◆ disableShortcuts()

virtual void ecvGenericMeasurementTools::disableShortcuts ( )

inlinevirtual

Disable keyboard shortcuts (called before tool destruction)

Reimplemented in PclMeasurementTools.

Definition at line 122 of file ecvGenericMeasurementTools.h.

Referenced by ecvMeasurementTool::removeInstance().

◆ getCenter()

virtual void ecvGenericMeasurementTools::getCenter ( double pos[3] ) const

pure virtual

Get center point coordinates (for angle/protractor)

Implemented in PclMeasurementTools.

◆ getMeasurementType()

MeasurementType ecvGenericMeasurementTools::getMeasurementType ( )

inline

Definition at line 128 of file ecvGenericMeasurementTools.h.

Referenced by ecvMeasurementTool::createMeasurementTool(), ecvMeasurementTool::onInstanceChanged(), and ecvMeasurementTool::setMeasurementTool().

◆ getMeasurementValue()

virtual double ecvGenericMeasurementTools::getMeasurementValue ( ) const

pure virtual

Get measurement value (distance or angle)

Implemented in PclMeasurementTools.

◆ getMeasurementWidget()

virtual QWidget* ecvGenericMeasurementTools::getMeasurementWidget ( )

pure virtual

Returns the measurement widget.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::removeInstance(), ecvMeasurementTool::setMeasurementTool(), ecvMeasurementTool::switchToToolUI(), and ecvMeasurementTool::toggleWidget().

◆ getOutput()

virtual ccHObject* ecvGenericMeasurementTools::getOutput ( ) const

pure virtual

Returns the output (if any)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::exportMeasurement().

◆ getPoint1()

virtual void ecvGenericMeasurementTools::getPoint1 ( double pos[3] ) const

pure virtual

Get point 1 coordinates.

Implemented in PclMeasurementTools.

◆ getPoint2()

virtual void ecvGenericMeasurementTools::getPoint2 ( double pos[3] ) const

pure virtual

Get point 2 coordinates.

Implemented in PclMeasurementTools.

◆ initialize()

virtual void ecvGenericMeasurementTools::initialize ( )

protectedpure virtual

Implemented in PclMeasurementTools.

◆ lockInteraction()

virtual void ecvGenericMeasurementTools::lockInteraction ( )

pure virtual

Lock tool interaction (disable VTK widget and UI controls)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::setMeasurementTool().

◆ measurementChanged

void ecvGenericMeasurementTools::measurementChanged ( )

signal

Signal sent when the measurement changes.

Referenced by ecvMeasurementTool::createMeasurementTool(), PclMeasurementTools::initialize(), and ecvMeasurementTool::setMeasurementTool().

◆ pointPickingCancelled

void ecvGenericMeasurementTools::pointPickingCancelled ( )

signal

Signal sent when point picking is cancelled.

Referenced by PclMeasurementTools::initialize(), and ecvMeasurementTool::setMeasurementTool().

◆ pointPickingRequested

void ecvGenericMeasurementTools::pointPickingRequested ( int pointIndex )

signal

Signal sent when point picking is requested

Parameters

pointIndex 1=point1, 2=point2, 3=center

Referenced by PclMeasurementTools::initialize(), and ecvMeasurementTool::setMeasurementTool().

◆ reset()

virtual void ecvGenericMeasurementTools::reset ( )

pure virtual

Resets the measurement tool.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::reset().

◆ setBold()

virtual void ecvGenericMeasurementTools::setBold ( bool bold )

pure virtual

Set font bold state for measurement labels.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setCenter()

virtual void ecvGenericMeasurementTools::setCenter ( double pos[3] )

pure virtual

Set center point coordinates (for angle/protractor)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::onItemPicked().

◆ setColor()

virtual void ecvGenericMeasurementTools::setColor	(	double	r,
		double	g,
		double	b
	)

pure virtual

Set measurement color (RGB values in range [0.0, 1.0])

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyColorToAllTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setFontColor()

virtual void ecvGenericMeasurementTools::setFontColor	(	double	r,
		double	g,
		double	b
	)

pure virtual

Set font color for measurement labels (RGB values 0.0-1.0)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setFontFamily()

virtual void ecvGenericMeasurementTools::setFontFamily ( const QString & family )

pure virtual

Set font family for measurement labels (e.g., "Arial", "Times New Roman")

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setFontOpacity()

virtual void ecvGenericMeasurementTools::setFontOpacity ( double opacity )

pure virtual

Set font opacity for measurement labels (0.0 to 1.0)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setFontSize()

virtual void ecvGenericMeasurementTools::setFontSize ( int size )

pure virtual

Set font size for measurement labels.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setHorizontalJustification()

virtual void ecvGenericMeasurementTools::setHorizontalJustification ( const QString & justification )

pure virtual

Set horizontal justification for measurement labels ("Left", "Center", "Right")

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setInputData()

virtual bool ecvGenericMeasurementTools::setInputData ( ccHObject * entity )

pure virtual

Sets the input entity.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::createMeasurementTool().

◆ setInstanceLabel()

virtual void ecvGenericMeasurementTools::setInstanceLabel ( const QString & label )

pure virtual

Set instance label suffix (e.g., "#1", "#2") for display in 3D view.

Implemented in PclMeasurementTools.

◆ setItalic()

virtual void ecvGenericMeasurementTools::setItalic ( bool italic )

pure virtual

Set font italic state for measurement labels.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setPoint1()

virtual void ecvGenericMeasurementTools::setPoint1 ( double pos[3] )

pure virtual

Set point 1 coordinates.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::onItemPicked().

◆ setPoint2()

virtual void ecvGenericMeasurementTools::setPoint2 ( double pos[3] )

pure virtual

Set point 2 coordinates.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::onItemPicked().

◆ setShadow()

virtual void ecvGenericMeasurementTools::setShadow ( bool shadow )

pure virtual

Set font shadow state for measurement labels.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ setupShortcuts()

virtual void ecvGenericMeasurementTools::setupShortcuts ( QWidget * win )

inlinevirtual

Setup keyboard shortcuts bound to the render window widget.

Reimplemented in PclMeasurementTools.

Definition at line 119 of file ecvGenericMeasurementTools.h.

Referenced by ecvMeasurementTool::addInstance().

◆ setVerticalJustification()

virtual void ecvGenericMeasurementTools::setVerticalJustification ( const QString & justification )

pure virtual

Set vertical justification for measurement labels ("Top", "Center", "Bottom")

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::applyFontToTools(), ecvMeasurementTool::createMeasurementTool(), and ecvMeasurementTool::setMeasurementTool().

◆ start()

virtual bool ecvGenericMeasurementTools::start ( )

pure virtual

Starts the measurement tool.

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::createMeasurementTool().

◆ unlockInteraction()

virtual void ecvGenericMeasurementTools::unlockInteraction ( )

pure virtual

Unlock tool interaction (enable VTK widget and UI controls)

Implemented in PclMeasurementTools.

Referenced by ecvMeasurementTool::switchToToolUI().

◆ update()

void ecvGenericMeasurementTools::update ( )

virtual

Updates the display.

Definition at line 19 of file ecvGenericMeasurementTools.cpp.

References ecvDisplayTools::UpdateScreen().

Member Data Documentation

◆ m_associatedEntity

ccHObject* ecvGenericMeasurementTools::m_associatedEntity

protected

Definition at line 145 of file ecvGenericMeasurementTools.h.

Referenced by PclMeasurementTools::setInputData().

◆ m_measurementType

MeasurementType ecvGenericMeasurementTools::m_measurementType

protected

Definition at line 144 of file ecvGenericMeasurementTools.h.

Referenced by PclMeasurementTools::initialize().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/CV_db/include/ecvGenericMeasurementTools.h
/root/ACloudViewer/libs/CV_db/src/ecvGenericMeasurementTools.cpp

Public Types

Signals

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Member Enumeration Documentation

◆ MeasurementType

Constructor & Destructor Documentation

◆ ecvGenericMeasurementTools()

◆ ~ecvGenericMeasurementTools()

Member Function Documentation

◆ clear()

◆ clearPickingCache()

◆ disableShortcuts()

◆ getCenter()

◆ getMeasurementType()

◆ getMeasurementValue()

◆ getMeasurementWidget()

◆ getOutput()

◆ getPoint1()

◆ getPoint2()

◆ initialize()

◆ lockInteraction()

◆ measurementChanged

◆ pointPickingCancelled

◆ pointPickingRequested

◆ reset()

◆ setBold()

◆ setCenter()

◆ setColor()

◆ setFontColor()

◆ setFontFamily()

◆ setFontOpacity()

◆ setFontSize()

◆ setHorizontalJustification()

◆ setInputData()

◆ setInstanceLabel()

◆ setItalic()

◆ setPoint1()

◆ setPoint2()

◆ setShadow()

◆ setupShortcuts()

◆ setVerticalJustification()

◆ start()

◆ unlockInteraction()

◆ update()

Member Data Documentation

◆ m_associatedEntity

◆ m_measurementType
