colmap::OptionsWidget Class Reference

#include <options_widget.h>

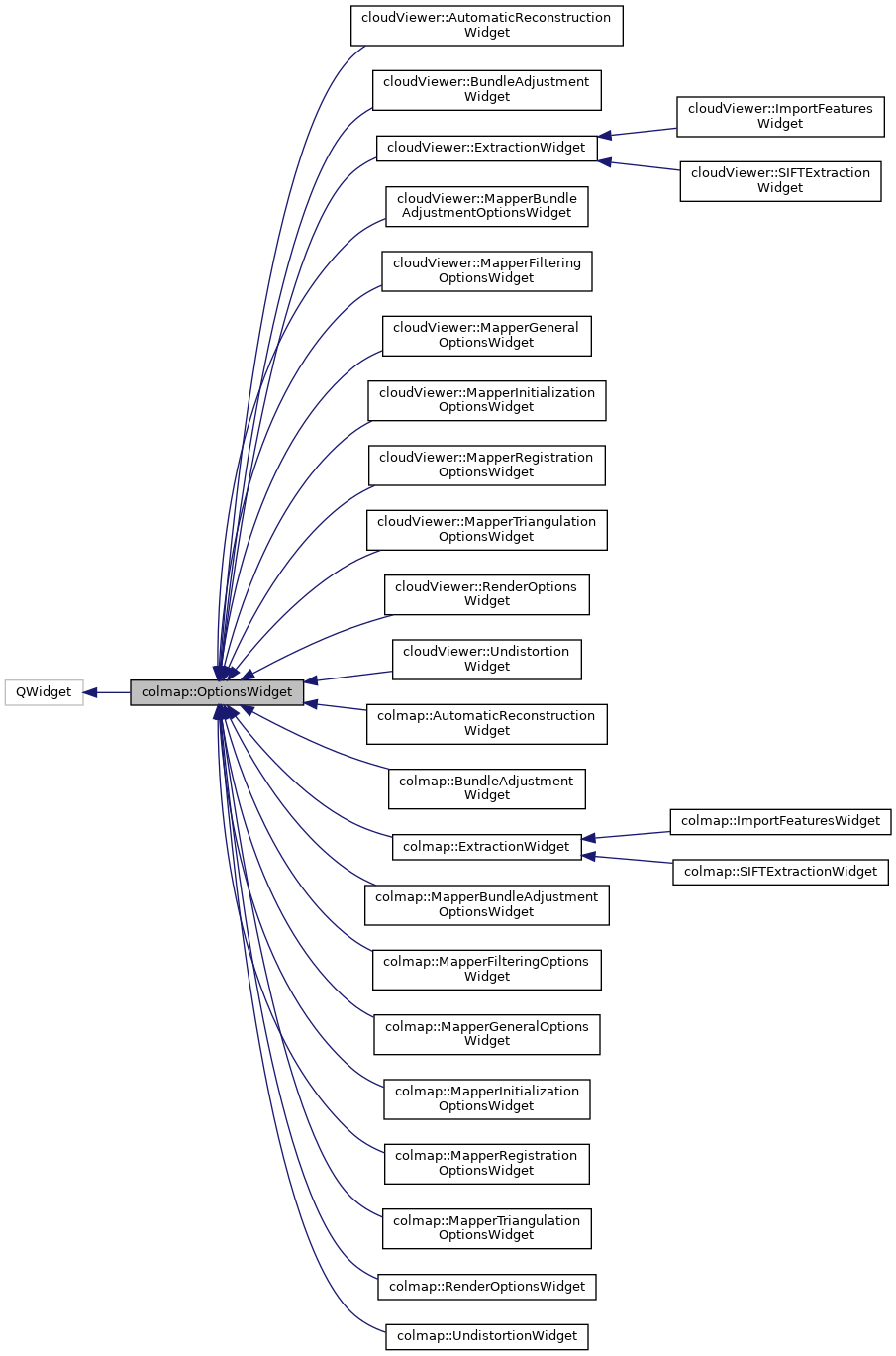

Inheritance diagram for colmap::OptionsWidget:

Collaboration diagram for colmap::OptionsWidget:

Public Member Functions
	OptionsWidget (QWidget *parent)
void	AddOptionRow (const std::string &label_text, QWidget *widget, void *option)
void	AddWidgetRow (const std::string &label_text, QWidget *widget)
void	AddLayoutRow (const std::string &label_text, QLayout *layout)
QSpinBox *	AddOptionInt (int *option, const std::string &label_text, const int min=0, const int max=static_cast< int >(1e7))
QDoubleSpinBox *	AddOptionDouble (double *option, const std::string &label_text, const double min=0, const double max=1e7, const double step=0.01, const int decimals=2)
QDoubleSpinBox *	AddOptionDoubleLog (double *option, const std::string &label_text, const double min=0, const double max=1e7, const double step=0.01, const int decimals=2)
QCheckBox *	AddOptionBool (bool *option, const std::string &label_text)
QLineEdit *	AddOptionText (std::string *option, const std::string &label_text)
QLineEdit *	AddOptionFilePath (std::string *option, const std::string &label_text)
QLineEdit *	AddOptionDirPath (std::string *option, const std::string &label_text)
void	AddSpacer ()
void	AddSection (const std::string &title)
void	ReadOptions ()
void	WriteOptions ()

Protected Member Functions
void	showEvent (QShowEvent *event)
void	closeEvent (QCloseEvent *event)
void	hideEvent (QHideEvent *event)
void	ShowOption (void *option)
void	HideOption (void *option)
void	ShowWidget (QWidget *option)
void	HideWidget (QWidget *option)
void	ShowLayout (QLayout *option)
void	HideLayout (QLayout *option)

Protected Attributes
QGridLayout *	grid_layout_
std::unordered_map< void *, std::pair< QLabel *, QWidget * > >	option_rows_
std::unordered_map< QWidget *, std::pair< QLabel *, QWidget * > >	widget_rows_
std::unordered_map< QLayout *, std::pair< QLabel *, QWidget * > >	layout_rows_
std::vector< std::pair< QSpinBox *, int * > >	options_int_
std::vector< std::pair< QDoubleSpinBox *, double * > >	options_double_
std::vector< std::pair< QDoubleSpinBox *, double * > >	options_double_log_
std::vector< std::pair< QCheckBox *, bool * > >	options_bool_
std::vector< std::pair< QLineEdit *, std::string * > >	options_text_
std::vector< std::pair< QLineEdit *, std::string * > >	options_path_

Detailed Description

Definition at line 16 of file options_widget.h.

Constructor & Destructor Documentation

OptionsWidget()

colmap::OptionsWidget::OptionsWidget ( QWidget *  parent )

explicit

Definition at line 36 of file options_widget.cc.

References grid_layout_.

Member Function Documentation

AddLayoutRow()

void colmap::OptionsWidget::AddLayoutRow	(	const std::string &	label_text,
		QLayout *	layout
	)

Definition at line 77 of file options_widget.cc.

References grid_layout_, layout_rows_, and cloudViewer::core::make_pair().

AddOptionBool()

QCheckBox * colmap::OptionsWidget::AddOptionBool	(	bool *	option,
		const std::string &	label_text
	)

Definition at line 139 of file options_widget.cc.

References AddOptionRow(), and options_bool_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), colmap::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), cloudViewer::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), colmap::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), cloudViewer::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), colmap::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), cloudViewer::SequentialMatchingTab::SequentialMatchingTab(), colmap::SequentialMatchingTab::SequentialMatchingTab(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), colmap::SIFTExtractionWidget::SIFTExtractionWidget(), cloudViewer::SpatialMatchingTab::SpatialMatchingTab(), and colmap::SpatialMatchingTab::SpatialMatchingTab().

AddOptionDirPath()

QLineEdit * colmap::OptionsWidget::AddOptionDirPath	(	std::string *	option,
		const std::string &	label_text
	)

Definition at line 181 of file options_widget.cc.

References AddOptionRow(), grid_layout_, and options_path_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::ImportFeaturesWidget::ImportFeaturesWidget(), colmap::ImportFeaturesWidget::ImportFeaturesWidget(), cloudViewer::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), colmap::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), and colmap::SIFTExtractionWidget::SIFTExtractionWidget().

AddOptionDouble()

QDoubleSpinBox * colmap::OptionsWidget::AddOptionDouble	(	double *	option,
		const std::string &	label_text,
		const double	min = 0,
		const double	max = 1e7,
		const double	step = 0.01,
		const int	decimals = 2
	)

Definition at line 107 of file options_widget.cc.

References AddOptionRow(), and options_double_.

Referenced by cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), colmap::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), cloudViewer::MapperFilteringOptionsWidget::MapperFilteringOptionsWidget(), colmap::MapperFilteringOptionsWidget::MapperFilteringOptionsWidget(), cloudViewer::MapperInitializationOptionsWidget::MapperInitializationOptionsWidget(), colmap::MapperInitializationOptionsWidget::MapperInitializationOptionsWidget(), cloudViewer::MapperRegistrationOptionsWidget::MapperRegistrationOptionsWidget(), colmap::MapperRegistrationOptionsWidget::MapperRegistrationOptionsWidget(), cloudViewer::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), colmap::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), colmap::SIFTExtractionWidget::SIFTExtractionWidget(), cloudViewer::SpatialMatchingTab::SpatialMatchingTab(), and colmap::SpatialMatchingTab::SpatialMatchingTab().

AddOptionDoubleLog()

QDoubleSpinBox * colmap::OptionsWidget::AddOptionDoubleLog	(	double *	option,
		const std::string &	label_text,
		const double	min = 0,
		const double	max = 1e7,
		const double	step = 0.01,
		const int	decimals = 2
	)

Definition at line 123 of file options_widget.cc.

References AddOptionRow(), and options_double_log_.

AddOptionFilePath()

QLineEdit * colmap::OptionsWidget::AddOptionFilePath	(	std::string *	option,
		const std::string &	label_text
	)

Definition at line 161 of file options_widget.cc.

References AddOptionRow(), grid_layout_, and options_path_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::CustomMatchingTab::CustomMatchingTab(), colmap::CustomMatchingTab::CustomMatchingTab(), cloudViewer::SequentialMatchingTab::SequentialMatchingTab(), colmap::SequentialMatchingTab::SequentialMatchingTab(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), colmap::SIFTExtractionWidget::SIFTExtractionWidget(), cloudViewer::VocabTreeMatchingTab::VocabTreeMatchingTab(), and colmap::VocabTreeMatchingTab::VocabTreeMatchingTab().

AddOptionInt()

QSpinBox * colmap::OptionsWidget::AddOptionInt	(	int *	option,
		const std::string &	label_text,
		const int	min = 0,
		const int	max = static_cast<int>(1e7)
	)

Definition at line 93 of file options_widget.cc.

References AddOptionRow(), and options_int_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::CustomMatchingTab::CustomMatchingTab(), colmap::CustomMatchingTab::CustomMatchingTab(), cloudViewer::ExhaustiveMatchingTab::ExhaustiveMatchingTab(), colmap::ExhaustiveMatchingTab::ExhaustiveMatchingTab(), cloudViewer::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), colmap::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), cloudViewer::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), colmap::MapperGeneralOptionsWidget::MapperGeneralOptionsWidget(), cloudViewer::MapperInitializationOptionsWidget::MapperInitializationOptionsWidget(), colmap::MapperInitializationOptionsWidget::MapperInitializationOptionsWidget(), cloudViewer::MapperRegistrationOptionsWidget::MapperRegistrationOptionsWidget(), colmap::MapperRegistrationOptionsWidget::MapperRegistrationOptionsWidget(), cloudViewer::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), colmap::MapperTriangulationOptionsWidget::MapperTriangulationOptionsWidget(), cloudViewer::SequentialMatchingTab::SequentialMatchingTab(), colmap::SequentialMatchingTab::SequentialMatchingTab(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), colmap::SIFTExtractionWidget::SIFTExtractionWidget(), cloudViewer::SpatialMatchingTab::SpatialMatchingTab(), colmap::SpatialMatchingTab::SpatialMatchingTab(), cloudViewer::TransitiveMatchingTab::TransitiveMatchingTab(), colmap::TransitiveMatchingTab::TransitiveMatchingTab(), cloudViewer::VocabTreeMatchingTab::VocabTreeMatchingTab(), and colmap::VocabTreeMatchingTab::VocabTreeMatchingTab().

AddOptionRow()

void colmap::OptionsWidget::AddOptionRow	(	const std::string &	label_text,
		QWidget *	widget,
		void *	option
	)

Definition at line 50 of file options_widget.cc.

References grid_layout_, cloudViewer::core::make_pair(), option_rows_, and widget_rows_.

Referenced by AddOptionBool(), AddOptionDirPath(), AddOptionDouble(), AddOptionDoubleLog(), AddOptionFilePath(), AddOptionInt(), AddOptionText(), cloudViewer::CustomMatchingTab::CustomMatchingTab(), and colmap::CustomMatchingTab::CustomMatchingTab().

AddOptionText()

QLineEdit * colmap::OptionsWidget::AddOptionText	(	std::string *	option,
		const std::string &	label_text
	)

Definition at line 150 of file options_widget.cc.

References AddOptionRow(), and options_text_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::SIFTExtractionWidget::SIFTExtractionWidget(), and colmap::SIFTExtractionWidget::SIFTExtractionWidget().

AddSection()

void colmap::OptionsWidget::AddSection

(

const std::string &

title

)

Definition at line 208 of file options_widget.cc.

References grid_layout_.

Referenced by cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), and colmap::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget().

AddSpacer()

void colmap::OptionsWidget::AddSpacer

(

)

Definition at line 202 of file options_widget.cc.

References grid_layout_.

Referenced by colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::FeatureMatchingTab::CreateGeneralOptions(), colmap::FeatureMatchingTab::CreateGeneralOptions(), cloudViewer::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget(), and colmap::MapperBundleAdjustmentOptionsWidget::MapperBundleAdjustmentOptionsWidget().

AddWidgetRow()

void colmap::OptionsWidget::AddWidgetRow	(	const std::string &	label_text,
		QWidget *	widget
	)

Definition at line 64 of file options_widget.cc.

References grid_layout_, cloudViewer::core::make_pair(), and widget_rows_.

closeEvent()

void colmap::OptionsWidget::closeEvent ( QCloseEvent *  event )

protected

Definition at line 270 of file options_widget.cc.

References WriteOptions().

hideEvent()

void colmap::OptionsWidget::hideEvent ( QHideEvent *  event )

protected

Definition at line 272 of file options_widget.cc.

References WriteOptions().

HideLayout()

void colmap::OptionsWidget::HideLayout ( QLayout *  option )

protected

Definition at line 304 of file options_widget.cc.

References layout_rows_.

HideOption()

void colmap::OptionsWidget::HideOption ( void *  option )

protected

Definition at line 280 of file options_widget.cc.

References option_rows_.

HideWidget()

void colmap::OptionsWidget::HideWidget ( QWidget *  option )

protected

Definition at line 292 of file options_widget.cc.

References widget_rows_.

ReadOptions()

void colmap::OptionsWidget::ReadOptions

(

)

Definition at line 216 of file options_widget.cc.

References options_bool_, options_double_, options_double_log_, options_int_, options_path_, and options_text_.

Referenced by showEvent().

showEvent()

void colmap::OptionsWidget::showEvent ( QShowEvent *  event )

protected

Definition at line 268 of file options_widget.cc.

References ReadOptions().

Referenced by cloudViewer::AutomaticReconstructionWidget::showEvent().

ShowLayout()

void colmap::OptionsWidget::ShowLayout ( QLayout *  option )

protected

Definition at line 298 of file options_widget.cc.

References layout_rows_.

ShowOption()

void colmap::OptionsWidget::ShowOption ( void *  option )

protected

Definition at line 274 of file options_widget.cc.

References option_rows_.

ShowWidget()

void colmap::OptionsWidget::ShowWidget ( QWidget *  option )

protected

Definition at line 286 of file options_widget.cc.

References widget_rows_.

WriteOptions()

void colmap::OptionsWidget::WriteOptions

(

)

Definition at line 242 of file options_widget.cc.

References options_bool_, options_double_, options_double_log_, options_int_, options_path_, and options_text_.

Referenced by closeEvent(), hideEvent(), cloudViewer::AutomaticReconstructionWidget::Run(), colmap::AutomaticReconstructionWidget::Run(), cloudViewer::SIFTExtractionWidget::Run(), cloudViewer::ImportFeaturesWidget::Run(), cloudViewer::ExhaustiveMatchingTab::Run(), cloudViewer::SequentialMatchingTab::Run(), cloudViewer::VocabTreeMatchingTab::Run(), cloudViewer::SpatialMatchingTab::Run(), cloudViewer::TransitiveMatchingTab::Run(), cloudViewer::CustomMatchingTab::Run(), colmap::SIFTExtractionWidget::Run(), colmap::ImportFeaturesWidget::Run(), colmap::ExhaustiveMatchingTab::Run(), colmap::SequentialMatchingTab::Run(), colmap::VocabTreeMatchingTab::Run(), colmap::SpatialMatchingTab::Run(), colmap::TransitiveMatchingTab::Run(), and colmap::CustomMatchingTab::Run().

Member Data Documentation

grid_layout_

QGridLayout* colmap::OptionsWidget::grid_layout_

protected

Definition at line 70 of file options_widget.h.

Referenced by AddLayoutRow(), AddOptionDirPath(), AddOptionFilePath(), AddOptionRow(), AddSection(), AddSpacer(), AddWidgetRow(), colmap::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), cloudViewer::AutomaticReconstructionWidget::AutomaticReconstructionWidget(), and OptionsWidget().

layout_rows_

std::unordered_map<QLayout*, std::pair<QLabel*, QWidget*> > colmap::OptionsWidget::layout_rows_

protected

Definition at line 74 of file options_widget.h.

Referenced by AddLayoutRow(), HideLayout(), and ShowLayout().

option_rows_

std::unordered_map<void*, std::pair<QLabel*, QWidget*> > colmap::OptionsWidget::option_rows_

protected

Definition at line 72 of file options_widget.h.

Referenced by AddOptionRow(), HideOption(), and ShowOption().

options_bool_

std::vector<std::pair<QCheckBox*, bool*> > colmap::OptionsWidget::options_bool_

protected

Definition at line 79 of file options_widget.h.

Referenced by AddOptionBool(), ReadOptions(), and WriteOptions().

options_double_

std::vector<std::pair<QDoubleSpinBox*, double*> > colmap::OptionsWidget::options_double_

protected

Definition at line 77 of file options_widget.h.

Referenced by AddOptionDouble(), ReadOptions(), and WriteOptions().

options_double_log_

std::vector<std::pair<QDoubleSpinBox*, double*> > colmap::OptionsWidget::options_double_log_

protected

Definition at line 78 of file options_widget.h.

Referenced by AddOptionDoubleLog(), ReadOptions(), and WriteOptions().

options_int_

std::vector<std::pair<QSpinBox*, int*> > colmap::OptionsWidget::options_int_

protected

Definition at line 76 of file options_widget.h.

Referenced by AddOptionInt(), ReadOptions(), and WriteOptions().

options_path_

std::vector<std::pair<QLineEdit*, std::string*> > colmap::OptionsWidget::options_path_

protected

Definition at line 81 of file options_widget.h.

Referenced by AddOptionDirPath(), AddOptionFilePath(), ReadOptions(), cloudViewer::AutomaticReconstructionWidget::showEvent(), and WriteOptions().

options_text_

std::vector<std::pair<QLineEdit*, std::string*> > colmap::OptionsWidget::options_text_

protected

Definition at line 80 of file options_widget.h.

Referenced by AddOptionText(), ReadOptions(), and WriteOptions().

widget_rows_

std::unordered_map<QWidget*, std::pair<QLabel*, QWidget*> > colmap::OptionsWidget::widget_rows_

protected

Definition at line 73 of file options_widget.h.

Referenced by AddOptionRow(), AddWidgetRow(), HideWidget(), and ShowWidget().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/libs/Reconstruction/src/ui/options_widget.h
• /root/ACloudViewer/libs/Reconstruction/src/ui/options_widget.cc
