VtkUtils::AbstractWidgetObserver Class Referenceabstract

#include <abstractwidgetobserver.h>

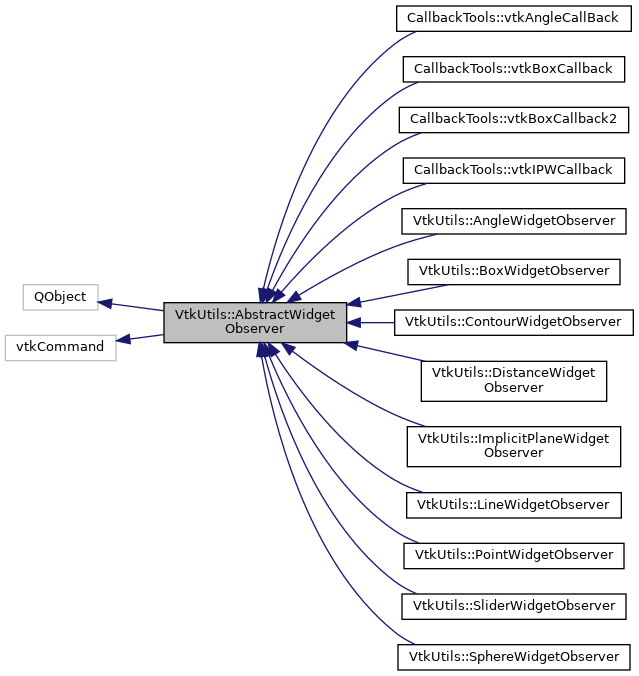

Inheritance diagram for VtkUtils::AbstractWidgetObserver:
Inheritance graph
[legend]
Collaboration diagram for VtkUtils::AbstractWidgetObserver:
Collaboration graph
[legend]

Public Member Functions

 AbstractWidgetObserver (QObject *parent=0)

virtual ~AbstractWidgetObserver ()

void attach (vtkInteractorObserver *widget)


Protected Member Functions

virtual void Execute (vtkObject *caller, unsigned long eventId, void *callData)=0


Protected Attributes

vtkInteractorObserver * m_widget = nullptr


Detailed Description

Definition at line 19 of file abstractwidgetobserver.h.

Constructor & Destructor Documentation

◆ AbstractWidgetObserver()

VtkUtils::AbstractWidgetObserver::AbstractWidgetObserver ( QObject *  parent = 0)
explicit

Definition at line 14 of file abstractwidgetobserver.cpp.

◆ ~AbstractWidgetObserver()

VtkUtils::AbstractWidgetObserver::~AbstractWidgetObserver ( )
virtual

Definition at line 17 of file abstractwidgetobserver.cpp.

Member Function Documentation

◆ attach()

void VtkUtils::AbstractWidgetObserver::attach ( vtkInteractorObserver *  widget)

Definition at line 19 of file abstractwidgetobserver.cpp.

References m_widget.

Referenced by cvCutFilter::updateCutWidget().

◆ Execute()

virtual void VtkUtils::AbstractWidgetObserver::Execute ( vtkObject *  caller,
unsigned long  eventId,
void *  callData
)
protectedpure virtual

Implemented in CallbackTools::vtkBoxCallback2, CallbackTools::vtkBoxCallback, CallbackTools::vtkIPWCallback, CallbackTools::vtkAngleCallBack, VtkUtils::SphereWidgetObserver, VtkUtils::SliderWidgetObserver, VtkUtils::PointWidgetObserver, VtkUtils::ImplicitPlaneWidgetObserver, VtkUtils::DistanceWidgetObserver, VtkUtils::ContourWidgetObserver, VtkUtils::BoxWidgetObserver, VtkUtils::AngleWidgetObserver, and VtkUtils::LineWidgetObserver.

Member Data Documentation

◆ m_widget

vtkInteractorObserver* VtkUtils::AbstractWidgetObserver::m_widget = nullptr
protected

Definition at line 34 of file abstractwidgetobserver.h.

Referenced by attach().

The documentation for this class was generated from the following files:
