vtkCustomInteractorStyle defines an unique, custom VTK based interactory style for PCL Visualizer applications. Besides defining the rendering style, we also create a list of custom actions that are triggered on different keys being pressed: More...

#include <vtkCustomInteractorStyle.h>

Inheritance diagram for VTKExtensions::vtkCustomInteractorStyle:

[legend]

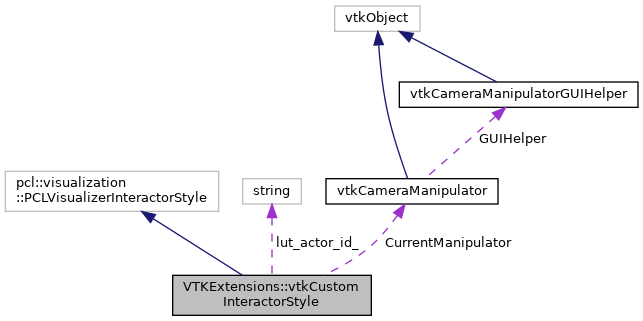

Collaboration diagram for VTKExtensions::vtkCustomInteractorStyle:

[legend]

Public Member Functions
	vtkTypeMacro (vtkCustomInteractorStyle, pcl::visualization::PCLVisualizerInteractorStyle)

void	PrintSelf (ostream &os, vtkIndent indent) override

	vtkCustomInteractorStyle ()
	Empty constructor. More...

virtual	~vtkCustomInteractorStyle () override
	Empty destructor. More...

void	toggleAreaPicking ()

void	setRenderWindow (const vtkSmartPointer< vtkRenderWindow > &win)
	Set render window. More...

void	AddManipulator (vtkCameraManipulator *m)

void	RemoveAllManipulators ()

	vtkGetObjectMacro (CameraManipulators, vtkCollection)

	vtkSetVector3Macro (CenterOfRotation, double)

	vtkGetVector3Macro (CenterOfRotation, double)

	vtkSetMacro (RotationFactor, double)

	vtkGetMacro (RotationFactor, double)

virtual vtkCameraManipulator *	FindManipulator (int button, int shift, int control)

Static Public Member Functions
static vtkCustomInteractorStyle *	New ()

static void	DollyToPosition (double fact, int position, vtkRenderer renderer)

static void	TranslateCamera (vtkRenderer *renderer, int toX, int toY, int fromX, int fromY)

Protected Member Functions
void	zoomIn ()
	Interactor style internal method. Zoom in. More...

void	zoomOut ()
	Interactor style internal method. Zoom out. More...

virtual void	OnKeyDown () override

virtual void	OnKeyUp () override

virtual void	OnChar () override
	Interactor style internal method. Gets called whenever a key is pressed. More...

virtual void	OnMouseMove () override

virtual void	OnLeftButtonDown () override

virtual void	OnLeftButtonUp () override

virtual void	OnMiddleButtonDown () override

virtual void	OnMiddleButtonUp () override

virtual void	OnRightButtonDown () override

virtual void	OnRightButtonUp () override

virtual void	OnMouseWheelForward () override

virtual void	OnMouseWheelBackward () override

void	Dolly (double factor) override

void	updateLookUpTableDisplay (bool add_lut=false)
	Add/remove the look up table displayed when 'u' is pressed, can also be used to update the current LUT displayed lut_actor_id_ is used (if not empty) to chose which cloud/shape actor LUT will be updated (depending on what is available) If lut_actor_id_ is empty the first actor with LUT support found will be used. More...

void	OnButtonDown (int button, int shift, int control)

void	OnButtonUp (int button)

void	ResetLights ()

	vtkCustomInteractorStyle (const vtkCustomInteractorStyle &)=delete

void	operator= (const vtkCustomInteractorStyle &)=delete

Protected Attributes
std::string	lut_actor_id_
	ID used to fetch/display the look up table on the visualizer It should be set by PCLVisualizer setLookUpTableID. More...

vtkCameraManipulator *	CurrentManipulator

double	CenterOfRotation [3]

double	RotationFactor

vtkCollection *	CameraManipulators

Detailed Description

vtkCustomInteractorStyle defines an unique, custom VTK based interactory style for PCL Visualizer applications. Besides defining the rendering style, we also create a list of custom actions that are triggered on different keys being pressed:

p, P : switch to a point-based representation
w, W : switch to a wireframe-based representation (where available)
s, S : switch to a surface-based representation (where available)
j, J : take a .PNG snapshot of the current window view
c, C : display current camera/window parameters
f, F : fly to point mode
e, E : exit the interactor\
q, Q : stop and call VTK's TerminateApp
+ / - : increment/decrement overall point size
g, G : display scale grid (on/off)
u, U : display lookup table (on/off)
r, R [+ ALT] : reset camera [to viewpoint = {0, 0, 0} -> center_{x, y, z}]
CTRL + s, S : save camera parameters
CTRL + r, R : restore camera parameters
ALT + s, S : turn stereo mode on/off
ALT + f, F : switch between maximized window mode and original size
l, L : list all available geometric and color handlers for the current actor map
ALT + 0..9 [+ CTRL] : switch between different geometric handlers (where available)
0..9 [+ CTRL] : switch between different color handlers (where available)
SHIFT + left click : select a point
x, X : toggle rubber band selection mode for left mouse button

Author: Radu B. Rusu

Definition at line 57 of file vtkCustomInteractorStyle.h.

Constructor & Destructor Documentation

◆ vtkCustomInteractorStyle() [1/2]

VTKExtensions::vtkCustomInteractorStyle::vtkCustomInteractorStyle ( )

Empty constructor.

Definition at line 64 of file vtkCustomInteractorStyle.cpp.

References CenterOfRotation.

◆ ~vtkCustomInteractorStyle()

VTKExtensions::vtkCustomInteractorStyle::~vtkCustomInteractorStyle ( )

overridevirtual

Empty destructor.

Definition at line 75 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators.

◆ vtkCustomInteractorStyle() [2/2]

VTKExtensions::vtkCustomInteractorStyle::vtkCustomInteractorStyle ( const vtkCustomInteractorStyle & )

protecteddelete

Member Function Documentation

◆ AddManipulator()

void VTKExtensions::vtkCustomInteractorStyle::AddManipulator ( vtkCameraManipulator * m )

Access to adding or removing manipulators.

Definition at line 86 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators.

Referenced by PclUtils::PCLVis::setCameraManipulators().

◆ Dolly()

void VTKExtensions::vtkCustomInteractorStyle::Dolly ( double factor )

overrideprotected

Definition at line 1291 of file vtkCustomInteractorStyle.cpp.

References DollyToPosition().

Referenced by zoomIn(), and zoomOut().

◆ DollyToPosition()

void VTKExtensions::vtkCustomInteractorStyle::DollyToPosition	(	double	fact,
		int *	position,
		vtkRenderer *	renderer
	)

static

Dolly the renderer's camera to a specific point

Definition at line 1302 of file vtkCustomInteractorStyle.cpp.

References position, and TranslateCamera().

Referenced by Dolly().

◆ FindManipulator()

vtkCameraManipulator * VTKExtensions::vtkCustomInteractorStyle::FindManipulator	(	int	button,
		int	shift,
		int	control
	)

virtual

Returns the chosen manipulator based on the modifiers.

Definition at line 1274 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators, and NULL.

Referenced by OnButtonDown().

◆ New()

static vtkCustomInteractorStyle* VTKExtensions::vtkCustomInteractorStyle::New ( )

static

◆ OnButtonDown()

void VTKExtensions::vtkCustomInteractorStyle::OnButtonDown	(	int	button,
		int	shift,
		int	control
	)

protected

Definition at line 1226 of file vtkCustomInteractorStyle.cpp.

References CenterOfRotation, CurrentManipulator, FindManipulator(), NULL, vtkCameraManipulator::OnButtonDown(), RotationFactor, and vtkCameraManipulator::StartInteraction().

Referenced by OnLeftButtonDown(), OnMiddleButtonDown(), and OnRightButtonDown().

◆ OnButtonUp()

void VTKExtensions::vtkCustomInteractorStyle::OnButtonUp ( int button )

protected

Definition at line 1257 of file vtkCustomInteractorStyle.cpp.

References CurrentManipulator, vtkCameraManipulator::EndInteraction(), NULL, and vtkCameraManipulator::OnButtonUp().

Referenced by OnLeftButtonUp(), OnMiddleButtonUp(), and OnRightButtonUp().

◆ OnChar()

void VTKExtensions::vtkCustomInteractorStyle::OnChar ( )

overrideprotectedvirtual

Interactor style internal method. Gets called whenever a key is pressed.

Definition at line 128 of file vtkCustomInteractorStyle.cpp.

References zoomIn(), and zoomOut().

◆ OnKeyDown()

void VTKExtensions::vtkCustomInteractorStyle::OnKeyDown ( )

overrideprotectedvirtual

Definition at line 207 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators, data, QtCompat::endl(), CVLog::Error(), event, cloudViewer::utility::filesystem::FileExists(), NULL, vtkCameraManipulator::OnKeyDown(), ORIENT_MODE, cloudViewer::t::geometry::path, points, CVLog::Print(), SELECT_MODE, updateLookUpTableDisplay(), zoomIn(), and zoomOut().

◆ OnKeyUp()

void VTKExtensions::vtkCustomInteractorStyle::OnKeyUp ( )

overrideprotectedvirtual

Definition at line 966 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators, event, NULL, and vtkCameraManipulator::OnKeyUp().

◆ OnLeftButtonDown()

void VTKExtensions::vtkCustomInteractorStyle::OnLeftButtonDown ( )

overrideprotectedvirtual

Definition at line 1019 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonDown(), x, and y.

◆ OnLeftButtonUp()

void VTKExtensions::vtkCustomInteractorStyle::OnLeftButtonUp ( )

overrideprotectedvirtual

Definition at line 1046 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonUp(), x, and y.

◆ OnMiddleButtonDown()

void VTKExtensions::vtkCustomInteractorStyle::OnMiddleButtonDown ( )

overrideprotectedvirtual

Definition at line 1061 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonDown(), x, and y.

◆ OnMiddleButtonUp()

void VTKExtensions::vtkCustomInteractorStyle::OnMiddleButtonUp ( )

overrideprotectedvirtual

Definition at line 1087 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonUp(), x, and y.

◆ OnMouseMove()

void VTKExtensions::vtkCustomInteractorStyle::OnMouseMove ( )

overrideprotectedvirtual

Definition at line 985 of file vtkCustomInteractorStyle.cpp.

References CurrentManipulator, event, vtkCameraManipulator::OnMouseMove(), VTKISRBP_SELECT, x, and y.

◆ OnMouseWheelBackward()

void VTKExtensions::vtkCustomInteractorStyle::OnMouseWheelBackward ( )

overrideprotectedvirtual

Definition at line 1175 of file vtkCustomInteractorStyle.cpp.

References event, x, and y.

◆ OnMouseWheelForward()

void VTKExtensions::vtkCustomInteractorStyle::OnMouseWheelForward ( )

overrideprotectedvirtual

Definition at line 1144 of file vtkCustomInteractorStyle.cpp.

References event, x, and y.

◆ OnRightButtonDown()

void VTKExtensions::vtkCustomInteractorStyle::OnRightButtonDown ( )

overrideprotectedvirtual

Definition at line 1102 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonDown(), x, and y.

◆ OnRightButtonUp()

void VTKExtensions::vtkCustomInteractorStyle::OnRightButtonUp ( )

overrideprotectedvirtual

Definition at line 1129 of file vtkCustomInteractorStyle.cpp.

References event, OnButtonUp(), x, and y.

◆ operator=()

void VTKExtensions::vtkCustomInteractorStyle::operator= ( const vtkCustomInteractorStyle & )

protecteddelete

◆ PrintSelf()

void VTKExtensions::vtkCustomInteractorStyle::PrintSelf	(	ostream &	os,
		vtkIndent	indent
	)

override

Definition at line 1526 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators, CenterOfRotation, QtCompat::endl(), and RotationFactor.

◆ RemoveAllManipulators()

void VTKExtensions::vtkCustomInteractorStyle::RemoveAllManipulators ( )

Removes all manipulators.

Definition at line 81 of file vtkCustomInteractorStyle.cpp.

References CameraManipulators.

Referenced by PclUtils::PCLVis::setCameraManipulators().

◆ ResetLights()

void VTKExtensions::vtkCustomInteractorStyle::ResetLights ( )

protected

Definition at line 1206 of file vtkCustomInteractorStyle.cpp.

References ecvColor::light().

◆ setRenderWindow()

void VTKExtensions::vtkCustomInteractorStyle::setRenderWindow ( const vtkSmartPointer< vtkRenderWindow > & win )

inline

Set render window.

Definition at line 76 of file vtkCustomInteractorStyle.h.

◆ toggleAreaPicking()

void VTKExtensions::vtkCustomInteractorStyle::toggleAreaPicking ( )

Definition at line 112 of file vtkCustomInteractorStyle.cpp.

References ORIENT_MODE, and SELECT_MODE.

◆ TranslateCamera()

void VTKExtensions::vtkCustomInteractorStyle::TranslateCamera	(	vtkRenderer *	renderer,
		int	toX,
		int	toY,
		int	fromX,
		int	fromY
	)

static

Translate the renderer's camera

Definition at line 1356 of file vtkCustomInteractorStyle.cpp.

Referenced by DollyToPosition().

◆ updateLookUpTableDisplay()

void VTKExtensions::vtkCustomInteractorStyle::updateLookUpTableDisplay ( bool add_lut = false )

protected

Add/remove the look up table displayed when 'u' is pressed, can also be used to update the current LUT displayed lut_actor_id_ is used (if not empty) to chose which cloud/shape actor LUT will be updated (depending on what is available) If lut_actor_id_ is empty the first actor with LUT support found will be used.

Definition at line 1390 of file vtkCustomInteractorStyle.cpp.

References lut_actor_id_.

Referenced by OnKeyDown().

◆ vtkGetMacro()

VTKExtensions::vtkCustomInteractorStyle::vtkGetMacro	(	RotationFactor	,
		double
	)

◆ vtkGetObjectMacro()

VTKExtensions::vtkCustomInteractorStyle::vtkGetObjectMacro	(	CameraManipulators	,
		vtkCollection
	)

Accessor for the collection of camera manipulators.

◆ vtkGetVector3Macro()

VTKExtensions::vtkCustomInteractorStyle::vtkGetVector3Macro	(	CenterOfRotation	,
		double
	)

◆ vtkSetMacro()

VTKExtensions::vtkCustomInteractorStyle::vtkSetMacro	(	RotationFactor	,
		double
	)

Propagates the rotation factor to the manipulators. This simply sets an internal ivar. It is propagated to a manipulator before the event is sent to it. Also changing the RotationFactor during interaction i.e. after a button press but before a button up has no effect until the next button press.

◆ vtkSetVector3Macro()

VTKExtensions::vtkCustomInteractorStyle::vtkSetVector3Macro	(	CenterOfRotation	,
		double
	)

Propagates the center to the manipulators. This simply sets an internal ivar. It is propagated to a manipulator before the event is sent to it. Also changing the CenterOfRotation during interaction i.e. after a button press but before a button up has no effect until the next button press.

◆ vtkTypeMacro()

VTKExtensions::vtkCustomInteractorStyle::vtkTypeMacro	(	vtkCustomInteractorStyle	,
		pcl::visualization::PCLVisualizerInteractorStyle
	)

◆ zoomIn()

void VTKExtensions::vtkCustomInteractorStyle::zoomIn ( )

protected

Interactor style internal method. Zoom in.

Definition at line 91 of file vtkCustomInteractorStyle.cpp.

References Dolly().

Referenced by OnChar(), and OnKeyDown().

◆ zoomOut()

void VTKExtensions::vtkCustomInteractorStyle::zoomOut ( )

protected

Interactor style internal method. Zoom out.

Definition at line 102 of file vtkCustomInteractorStyle.cpp.

References Dolly().

Referenced by OnChar(), and OnKeyDown().

Member Data Documentation

◆ CameraManipulators

vtkCollection* VTKExtensions::vtkCustomInteractorStyle::CameraManipulators

protected

Definition at line 196 of file vtkCustomInteractorStyle.h.

Referenced by AddManipulator(), FindManipulator(), OnKeyDown(), OnKeyUp(), PrintSelf(), RemoveAllManipulators(), and ~vtkCustomInteractorStyle().

◆ CenterOfRotation

double VTKExtensions::vtkCustomInteractorStyle::CenterOfRotation[3]

protected

Definition at line 192 of file vtkCustomInteractorStyle.h.

Referenced by OnButtonDown(), PrintSelf(), and vtkCustomInteractorStyle().

◆ CurrentManipulator

vtkCameraManipulator* VTKExtensions::vtkCustomInteractorStyle::CurrentManipulator

protected

Definition at line 191 of file vtkCustomInteractorStyle.h.

Referenced by OnButtonDown(), OnButtonUp(), and OnMouseMove().

◆ lut_actor_id_

std::string VTKExtensions::vtkCustomInteractorStyle::lut_actor_id_

protected

ID used to fetch/display the look up table on the visualizer It should be set by PCLVisualizer setLookUpTableID.

Note: If empty, a random actor added to the interactor will be used

Definition at line 182 of file vtkCustomInteractorStyle.h.

Referenced by updateLookUpTableDisplay().

◆ RotationFactor

double VTKExtensions::vtkCustomInteractorStyle::RotationFactor

protected

Definition at line 193 of file vtkCustomInteractorStyle.h.

Referenced by OnButtonDown(), and PrintSelf().

The documentation for this class was generated from the following files:

/root/ACloudViewer/libs/PCLEngine/VTKExtensions/InteractionStyle/vtkCustomInteractorStyle.h
/root/ACloudViewer/libs/PCLEngine/VTKExtensions/InteractionStyle/vtkCustomInteractorStyle.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ vtkCustomInteractorStyle() [1/2]

◆ ~vtkCustomInteractorStyle()

◆ vtkCustomInteractorStyle() [2/2]

Member Function Documentation

◆ AddManipulator()

◆ Dolly()

◆ DollyToPosition()

◆ FindManipulator()

◆ New()

◆ OnButtonDown()

◆ OnButtonUp()

◆ OnChar()

◆ OnKeyDown()

◆ OnKeyUp()

◆ OnLeftButtonDown()

◆ OnLeftButtonUp()

◆ OnMiddleButtonDown()

◆ OnMiddleButtonUp()

◆ OnMouseMove()

◆ OnMouseWheelBackward()

◆ OnMouseWheelForward()

◆ OnRightButtonDown()

◆ OnRightButtonUp()

◆ operator=()

◆ PrintSelf()

◆ RemoveAllManipulators()

◆ ResetLights()

◆ setRenderWindow()

◆ toggleAreaPicking()

◆ TranslateCamera()

◆ updateLookUpTableDisplay()

◆ vtkGetMacro()

◆ vtkGetObjectMacro()

◆ vtkGetVector3Macro()

◆ vtkSetMacro()

◆ vtkSetVector3Macro()

◆ vtkTypeMacro()

◆ zoomIn()

◆ zoomOut()

Member Data Documentation

◆ CameraManipulators

◆ CenterOfRotation

◆ CurrentManipulator

◆ lut_actor_id_

◆ RotationFactor
