Stores information about a single group of points in a row or column. More...

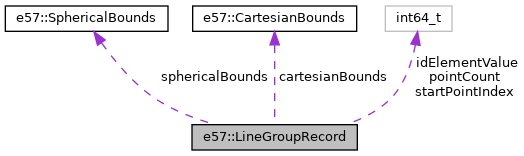

Collaboration diagram for e57::LineGroupRecord:

[legend]

Public Attributes
int64_t	idElementValue
	The value of the identifying element of all members in this group. Shall be in the interval [0, 2^63). More...

int64_t	startPointIndex
	The record number of the first point in the continuous interval. Shall be in the interval [0, 2^63). More...

int64_t	pointCount
	The number of PointRecords in the group. Shall be in the interval [1, 2^63). May be zero. More...

CartesianBounds	cartesianBounds

SphericalBounds	sphericalBounds

Detailed Description

Stores information about a single group of points in a row or column.

Definition at line 269 of file E57SimpleData.h.

Member Data Documentation

CartesianBounds e57::LineGroupRecord::cartesianBounds

The bounding box (in Cartesian coordinates) of all points in the group (in the local coordinate system of the points).

Definition at line 280 of file E57SimpleData.h.

int64_t e57::LineGroupRecord::idElementValue

Initial value:

{
         0
      }

The value of the identifying element of all members in this group. Shall be in the interval [0, 2^63).

Definition at line 271 of file E57SimpleData.h.

int64_t e57::LineGroupRecord::pointCount

Initial value:

{
         0
      }

The number of PointRecords in the group. Shall be in the interval [1, 2^63). May be zero.

Definition at line 277 of file E57SimpleData.h.

SphericalBounds e57::LineGroupRecord::sphericalBounds

The bounding region (in spherical coordinates) of all the points in the group (in the local coordinate system of the points).

Definition at line 282 of file E57SimpleData.h.

int64_t e57::LineGroupRecord::startPointIndex

Initial value:

{
         0
      }

The record number of the first point in the continuous interval. Shall be in the interval [0, 2^63).

Definition at line 274 of file E57SimpleData.h.

The documentation for this struct was generated from the following file:

/root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/include/E57SimpleData.h
