cloudViewer::DgmOctree::CylindricalNeighbourhood Struct Reference

#include <DgmOctree.h>

Inheritance diagram for cloudViewer::DgmOctree::CylindricalNeighbourhood:

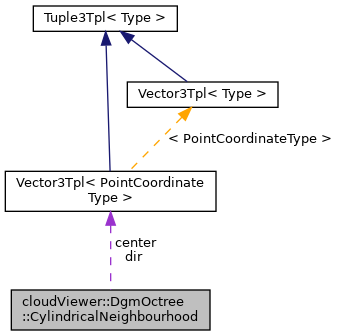

Collaboration diagram for cloudViewer::DgmOctree::CylindricalNeighbourhood:

Public Member Functions
	CylindricalNeighbourhood ()
	Default constructor. More...

Public Attributes
CCVector3	center
	Cylinder center. More...
CCVector3	dir
	Cylinder axis (direction) More...
PointCoordinateType	radius
	Cylinder radius. More...
PointCoordinateType	maxHalfLength
	Cylinder (half) length. More...
NeighboursSet	neighbours
	Neighbour points falling inside the cylinder. More...
unsigned char	level
	subdivision level at which to apply the extraction process More...
bool	onlyPositiveDir

Detailed Description

Input/output parameters structure for getPointsInCylindricalNeighbourhood

Definition at line 658 of file DgmOctree.h.

Constructor & Destructor Documentation

CylindricalNeighbourhood()

cloudViewer::DgmOctree::CylindricalNeighbourhood::CylindricalNeighbourhood ( )

inline

Default constructor.

Definition at line 676 of file DgmOctree.h.

Member Data Documentation

center

CCVector3 cloudViewer::DgmOctree::CylindricalNeighbourhood::center

Cylinder center.

Definition at line 660 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

dir

CCVector3 cloudViewer::DgmOctree::CylindricalNeighbourhood::dir

Cylinder axis (direction)

Definition at line 662 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

level

unsigned char cloudViewer::DgmOctree::CylindricalNeighbourhood::level

subdivision level at which to apply the extraction process

Definition at line 670 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

maxHalfLength

PointCoordinateType cloudViewer::DgmOctree::CylindricalNeighbourhood::maxHalfLength

Cylinder (half) length.

Definition at line 666 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

neighbours

NeighboursSet cloudViewer::DgmOctree::CylindricalNeighbourhood::neighbours

Neighbour points falling inside the cylinder.

Definition at line 668 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

onlyPositiveDir

bool cloudViewer::DgmOctree::CylindricalNeighbourhood::onlyPositiveDir

Whether to look in both directions or only along the positive direction (i.e. half cylinder)

Definition at line 673 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

radius

PointCoordinateType cloudViewer::DgmOctree::CylindricalNeighbourhood::radius

Cylinder radius.

Definition at line 664 of file DgmOctree.h.

Referenced by ComputeM3C2DistForPoint().

---

The documentation for this struct was generated from the following file:

• /root/ACloudViewer/core/include/DgmOctree.h
