ometis.c File Reference

#include "metis.h"

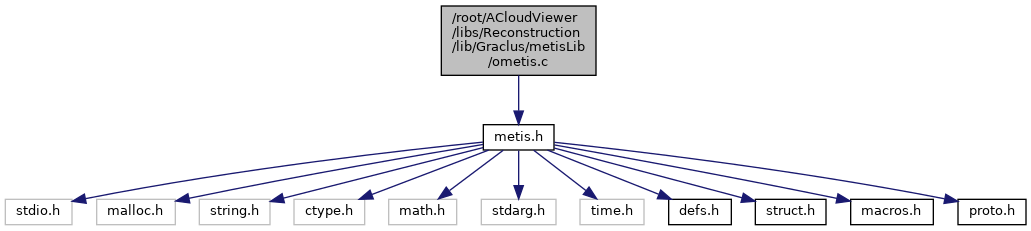

Include dependency graph for ometis.c:

Go to the source code of this file.

Functions
void	METIS_EdgeND (int *nvtxs, idxtype *xadj, idxtype *adjncy, int *numflag, int *options, idxtype *perm, idxtype *iperm)
void	GRACLUS_METIS_NodeND (int *nvtxs, idxtype *xadj, idxtype *adjncy, int *numflag, int *options, idxtype *perm, idxtype *iperm)
void	METIS_NodeWND (int *nvtxs, idxtype *xadj, idxtype *adjncy, idxtype *vwgt, int *numflag, int *options, idxtype *perm, idxtype *iperm)
void	MlevelNestedDissection (CtrlType *ctrl, GraphType *graph, idxtype *order, float ubfactor, int lastvtx)
void	MlevelNestedDissectionCC (CtrlType *ctrl, GraphType *graph, idxtype *order, float ubfactor, int lastvtx)
void	MlevelNodeBisectionMultiple (CtrlType *ctrl, GraphType *graph, int *tpwgts, float ubfactor)
void	MlevelNodeBisection (CtrlType *ctrl, GraphType *graph, int *tpwgts, float ubfactor)
void	SplitGraphOrder (CtrlType *ctrl, GraphType *graph, GraphType *lgraph, GraphType *rgraph)
void	MMDOrder (CtrlType *ctrl, GraphType *graph, idxtype *order, int lastvtx)
int	SplitGraphOrderCC (CtrlType *ctrl, GraphType *graph, GraphType *sgraphs, int ncmps, idxtype *cptr, idxtype *cind)

Function Documentation

GRACLUS_METIS_NodeND()

void GRACLUS_METIS_NodeND	(	int *	nvtxs,
		idxtype *	xadj,
		idxtype *	adjncy,
		int *	numflag,
		int *	options,
		idxtype *	perm,
		idxtype *	iperm
	)

Definition at line 79 of file ometis.c.

References AllocateWorkSpace, Change2CNumbering, Change2FNumberingOrder, controldef::CoarsenTo, CompressGraph, COMPRESSION_FRACTION, controldef::CType, DBG_TIME, controldef::dbglvl, FreeWorkSpace, GKfree, idxcopy, idxmalloc, idxsum, IFSET, InitRandom, InitTimers, controldef::IType, LTERM, controldef::maxvwgt, MlevelNestedDissection(), MlevelNestedDissectionCC(), controldef::nseps, NULL, graphdef::nvtxs, OFLAG_CCMP, OFLAG_COMPRESS, controldef::oflags, ONMETIS_CTYPE, ONMETIS_DBGLVL, ONMETIS_ITYPE, ONMETIS_NSEPS, ONMETIS_OFLAGS, ONMETIS_PFACTOR, ONMETIS_RTYPE, OP_ONMETIS, OPTION_CTYPE, OPTION_DBGLVL, OPTION_ITYPE, OPTION_NSEPS, OPTION_OFLAGS, OPTION_PFACTOR, OPTION_RTYPE, controldef::optype, ORDER_UNBALANCE_FRACTION, controldef::pfactor, PrintTimers, PruneGraph, controldef::RType, SetUpGraph, starttimer, stoptimer, controldef::TotalTmr, and graphdef::vwgt.

Referenced by METIS_NODEND(), metis_nodend(), metis_nodend_(), and metis_nodend__().

METIS_EdgeND()

void METIS_EdgeND	(	int *	nvtxs,
		idxtype *	xadj,
		idxtype *	adjncy,
		int *	numflag,
		int *	options,
		idxtype *	perm,
		idxtype *	iperm
	)

Definition at line 22 of file ometis.c.

References AllocateWorkSpace, Change2CNumbering, Change2FNumberingOrder, controldef::CoarsenTo, controldef::CType, DBG_TIME, controldef::dbglvl, FreeWorkSpace, idxsum, IFSET, InitRandom, InitTimers, controldef::IType, controldef::maxvwgt, MlevelNestedDissection(), controldef::nseps, NULL, OEMETIS_CTYPE, OEMETIS_DBGLVL, OEMETIS_ITYPE, OEMETIS_RTYPE, controldef::oflags, OP_OEMETIS, OPTION_CTYPE, OPTION_DBGLVL, OPTION_ITYPE, OPTION_RTYPE, controldef::optype, ORDER_UNBALANCE_FRACTION, controldef::pfactor, PrintTimers, controldef::RType, SetUpGraph, starttimer, stoptimer, controldef::TotalTmr, and graphdef::vwgt.

Referenced by METIS_EDGEND(), metis_edgend(), metis_edgend_(), and metis_edgend__().

METIS_NodeWND()

void METIS_NodeWND	(	int *	nvtxs,
		idxtype *	xadj,
		idxtype *	adjncy,
		idxtype *	vwgt,
		int *	numflag,
		int *	options,
		idxtype *	perm,
		idxtype *	iperm
	)

Definition at line 204 of file ometis.c.

References AllocateWorkSpace, Change2CNumbering, Change2FNumberingOrder, controldef::CoarsenTo, controldef::CType, DBG_TIME, controldef::dbglvl, FreeWorkSpace, idxsum, IFSET, InitRandom, InitTimers, controldef::IType, controldef::maxvwgt, MlevelNestedDissection(), controldef::nseps, NULL, OFLAG_COMPRESS, controldef::oflags, ONMETIS_CTYPE, ONMETIS_DBGLVL, ONMETIS_ITYPE, ONMETIS_RTYPE, OP_ONMETIS, OPTION_CTYPE, OPTION_DBGLVL, OPTION_ITYPE, OPTION_RTYPE, controldef::optype, ORDER_UNBALANCE_FRACTION, controldef::pfactor, PrintTimers, controldef::RType, SetUpGraph, starttimer, stoptimer, controldef::TotalTmr, and graphdef::vwgt.

Referenced by METIS_NODEWND(), metis_nodewnd(), metis_nodewnd_(), and metis_nodewnd__().

MlevelNestedDissection()

void MlevelNestedDissection	(	CtrlType *	ctrl,
		GraphType *	graph,
		idxtype *	order,
		float	ubfactor,
		int	lastvtx
	)

Definition at line 263 of file ometis.c.

References graphdef::bndind, ConstructMinCoverSeparator, DBG_SEPINFO, DBG_TIME, controldef::dbglvl, graphdef::gdata, GKfree, idxsum, IFSET, graphdef::label, LTERM, MlevelEdgeBisection, MlevelNodeBisectionMultiple(), MMDOrder(), MMDSWITCH, graphdef::nbnd, graphdef::nvtxs, OP_OEMETIS, OP_ONMETIS, controldef::optype, graphdef::pwgts, graphdef::rdata, controldef::SepTmr, SplitGraphOrder(), starttimer, stoptimer, and graphdef::vwgt.

Referenced by GRACLUS_METIS_NodeND(), METIS_EdgeND(), and METIS_NodeWND().

MlevelNestedDissectionCC()

void MlevelNestedDissectionCC	(	CtrlType *	ctrl,
		GraphType *	graph,
		idxtype *	order,
		float	ubfactor,
		int	lastvtx
	)

Definition at line 323 of file ometis.c.

References graphdef::bndind, DBG_SEPINFO, controldef::dbglvl, FindComponents, graphdef::gdata, GKfree, GKmalloc, idxmalloc, idxsum, IFSET, graphdef::label, LTERM, MlevelNodeBisectionMultiple(), MMDOrder(), graphdef::nbnd, NULL, graphdef::nvtxs, graphdef::pwgts, graphdef::rdata, SplitGraphOrderCC(), and graphdef::vwgt.

Referenced by GRACLUS_METIS_NodeND().

MlevelNodeBisection()

void MlevelNodeBisection	(	CtrlType *	ctrl,
		GraphType *	graph,
		int *	tpwgts,
		float	ubfactor
	)

Definition at line 468 of file ometis.c.

References Coarsen2Way, controldef::CoarsenTo, Compute2WayPartitionParams, ConstructSeparator, DBG_TIME, controldef::dbglvl, IFSET, Init2WayPartition, InitSeparator, IPART_GGPKL, IPART_GGPKLNODE, controldef::IType, controldef::maxvwgt, graphdef::nvtxs, Refine2WayNode, controldef::SepTmr, starttimer, and stoptimer.

Referenced by MlevelNodeBisectionMultiple().

MlevelNodeBisectionMultiple()

void MlevelNodeBisectionMultiple	(	CtrlType *	ctrl,
		GraphType *	graph,
		int *	tpwgts,
		float	ubfactor
	)

Definition at line 386 of file ometis.c.

References Allocate2WayNodePartitionMemory, Coarsen2Way, controldef::CoarsenTo, Compute2WayNodePartitionParams, controldef::CType, GKfree, idxcopy, idxmalloc, LTERM, graphdef::mincut, MlevelNodeBisection(), controldef::nseps, graphdef::nvtxs, OFLAG_COMPRESS, controldef::oflags, graphdef::rdata, Refine2WayNode, and graphdef::where.

Referenced by MlevelNestedDissection(), and MlevelNestedDissectionCC().

MMDOrder()

void MMDOrder	(	CtrlType *	ctrl,
		GraphType *	graph,
		idxtype *	order,
		int	lastvtx
	)

Definition at line 617 of file ometis.c.

References graphdef::adjncy, genmmd, idxmalloc, graphdef::label, MAXIDX, graphdef::nvtxs, and graphdef::xadj.

Referenced by MlevelNestedDissection(), and MlevelNestedDissectionCC().

SplitGraphOrder()

void SplitGraphOrder	(	CtrlType *	ctrl,
		GraphType *	graph,
		GraphType *	lgraph,
		GraphType *	rgraph
	)

Definition at line 508 of file ometis.c.

References graphdef::adjncy, graphdef::adjwgt, graphdef::adjwgtsum, ASSERT, graphdef::bndind, graphdef::bndptr, DBG_TIME, controldef::dbglvl, idxset, idxwspacefree, idxwspacemalloc, IFSET, graphdef::label, graphdef::nbnd, graphdef::nedges, NULL, graphdef::nvtxs, SetUpSplitGraph, controldef::SplitTmr, starttimer, stoptimer, graphdef::vwgt, graphdef::where, and graphdef::xadj.

Referenced by MlevelNestedDissection().

SplitGraphOrderCC()

int SplitGraphOrderCC	(	CtrlType *	ctrl,
		GraphType *	graph,
		GraphType *	sgraphs,
		int	ncmps,
		idxtype *	cptr,
		idxtype *	cind
	)

Definition at line 663 of file ometis.c.

References graphdef::adjncy, graphdef::adjwgt, graphdef::adjwgtsum, ASSERT, graphdef::bndind, graphdef::bndptr, DBG_TIME, controldef::dbglvl, idxset, idxwspacefree, idxwspacemalloc, IFSET, graphdef::label, MMDSWITCH, graphdef::nbnd, graphdef::ncon, graphdef::nedges, NULL, graphdef::nvtxs, RandomPermute, SetUpSplitGraph, controldef::SplitTmr, starttimer, stoptimer, graphdef::vwgt, graphdef::where, and graphdef::xadj.

Referenced by MlevelNestedDissectionCC().
