ecvGenericCameraTool Class Reference

#include <ecvGenericCameraTool.h>

Inheritance diagram for ecvGenericCameraTool:

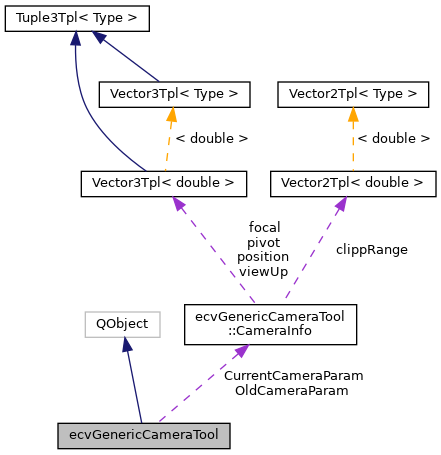

Collaboration diagram for ecvGenericCameraTool:

Classes
struct	CameraInfo

Public Types
enum	CameraAdjustmentType { Roll = 0 , Elevation , Azimuth , Zoom }

Public Slots
void	UpdateCamera ()

Public Member Functions
	ecvGenericCameraTool ()
	~ecvGenericCameraTool () override
virtual void	saveCameraConfiguration (const std::string &file)
virtual void	loadCameraConfiguration (const std::string &file)
virtual void	resetViewDirection (double look_x, double look_y, double look_z, double up_x, double up_y, double up_z)
virtual void	setAutoPickPivotAtCenter (bool state)
virtual void	adjustCamera (CameraAdjustmentType enType, double value)=0
virtual void	updateCamera ()=0
virtual void	updateCameraParameters ()=0

Static Public Member Functions
static void	SaveBuffer ()

Static Public Attributes
static CameraInfo	OldCameraParam
static CameraInfo	CurrentCameraParam

Detailed Description

Definition at line 19 of file ecvGenericCameraTool.h.

Member Enumeration Documentation

CameraAdjustmentType

enum ecvGenericCameraTool::CameraAdjustmentType

Enumerator
Roll
Elevation
Azimuth
Zoom

Definition at line 117 of file ecvGenericCameraTool.h.

Constructor & Destructor Documentation

ecvGenericCameraTool()

ecvGenericCameraTool::ecvGenericCameraTool

(

)

~ecvGenericCameraTool()

ecvGenericCameraTool::~ecvGenericCameraTool ( )

override

Member Function Documentation

adjustCamera()

virtual void ecvGenericCameraTool::adjustCamera ( CameraAdjustmentType  enType, double  value  )

pure virtual

loadCameraConfiguration()

virtual void ecvGenericCameraTool::loadCameraConfiguration ( const std::string &  file )

virtual

resetViewDirection()

virtual void ecvGenericCameraTool::resetViewDirection ( double  look_x, double  look_y, double  look_z, double  up_x, double  up_y, double  up_z  )

inlinevirtual

Definition at line 108 of file ecvGenericCameraTool.h.

SaveBuffer()

static void ecvGenericCameraTool::SaveBuffer ( )

inlinestatic

Definition at line 103 of file ecvGenericCameraTool.h.

saveCameraConfiguration()

virtual void ecvGenericCameraTool::saveCameraConfiguration ( const std::string &  file )

virtual

setAutoPickPivotAtCenter()

virtual void ecvGenericCameraTool::setAutoPickPivotAtCenter ( bool  state )

virtual

UpdateCamera

void ecvGenericCameraTool::UpdateCamera ( )

inlineslot

Definition at line 124 of file ecvGenericCameraTool.h.

updateCamera()

virtual void ecvGenericCameraTool::updateCamera ( )

pure virtual

updateCameraParameters()

virtual void ecvGenericCameraTool::updateCameraParameters ( )

pure virtual

Member Data Documentation

CurrentCameraParam

CameraInfo ecvGenericCameraTool::CurrentCameraParam

static

Definition at line 102 of file ecvGenericCameraTool.h.

OldCameraParam

CameraInfo ecvGenericCameraTool::OldCameraParam

static

Definition at line 101 of file ecvGenericCameraTool.h.

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/libs/CV_db/include/ecvGenericCameraTool.h
