#include <ecvConsole.h>

Inheritance diagram for ecvConsole:

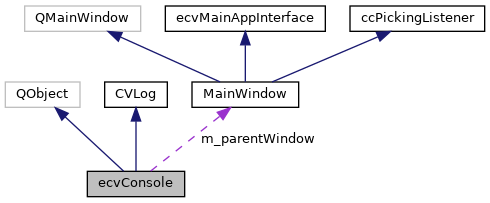

Collaboration diagram for ecvConsole:

[legend]

Public Slots
void	refresh ()
	Refreshes console (display all messages still in queue) More...

Public Member Functions
	~ecvConsole () override
	Destructor. More...

void	setAutoRefresh (bool state)
	Sets auto-refresh state. More...

bool	setLogFile (const QString &logPrefix)
	Sets log file with prefix (generates timestamped log file like glog) More...

QWidget *	parentWidget ()
	Returns the parent widget (if any) More...

Public Member Functions inherited from CVLog
virtual	~CVLog ()
	Destructor. More...

Static Public Member Functions
static void	Init (QListWidget textDisplay=nullptr, QWidget parentWidget=nullptr, MainWindow *parentWindow=nullptr, bool redirectToStdOut=false)
	Inits console (and optionaly associates it with a text output widget) More...

static ecvConsole *	TheInstance (bool autoInit=true)
	Returns the (unique) static instance. More...

static void	ReleaseInstance (bool flush=true)
	Releases unique instance. More...

static void	EnableQtMessages (bool state)
	Whether to show Qt messages (qDebug / qWarning / etc.) in Console. More...

static bool	QtMessagesEnabled ()

Static Public Member Functions inherited from CVLog
static CVLog *	TheInstance ()
	Returns the static and unique instance. More...

static void	RegisterInstance (CVLog *logInstance)
	Registers a unique instance. More...

static void	EnableMessageBackup (bool state)
	Enables the message backup system. More...

static int	VerbosityLevel ()
	Returns the current verbosity level. More...

static void	SetVerbosityLevel (int level)
	Sets the verbosity level. More...

static void	LogMessage (const QString &message, int level)
	Static shortcut to CVLog::logMessage. More...

static bool	PrintVerbose (const char *format,...)
	Prints out a verbose formatted message in console. More...

static bool	PrintVerbose (const QString &message)
	QString version of ccLog::PrintVerbose. More...

static bool	Print (const char *format,...)
	Prints out a formatted message in console. More...

static bool	Print (const QString &message)
	QString version of ccLog::Print. More...

static bool	PrintHigh (const char *format,...)
	Prints out an important formatted message in console. More...

static bool	PrintHigh (const QString &message)
	QString version of ccLog::PrintHigh. More...

static bool	PrintDebug (const char *format,...)
	Same as Print, but works only in Debug mode. More...

static bool	PrintDebug (const QString &message)
	QString version of ccLog::PrintDebug. More...

static bool	Warning (const char *format,...)
	Prints out a formatted warning message in console. More...

static bool	Warning (const QString &message)
	QString version of ccLog::Warning. More...

static bool	WarningDebug (const char *format,...)
	Same as Warning, but works only in Debug mode. More...

static bool	WarningDebug (const QString &message)
	QString version of ccLog::WarningDebug. More...

static bool	Error (const char *format,...)
	Display an error dialog with formatted message. More...

static bool	Error (const QString &message)
	QString version of 'Error'. More...

static bool	ErrorDebug (const char *format,...)
	Same as Error, but works only in Debug mode. More...

static bool	ErrorDebug (const QString &message)
	QString version of ccLog::ErrorDebug. More...

Protected Types
using	ConsoleItemType = QPair< QString, int >
	Queue element type (message + color) More...

Protected Member Functions
	ecvConsole ()
	Default constructor. More...

void	logMessage (const QString &message, int level) override
	Generic message logging method. More...

Static Protected Member Functions
static QString	generateLogFileName (const QString &prefix)
	Generate log file name with timestamp and pid. More...

static QString	getLogDirectory ()
	Get appropriate log directory path (handles permissions on Ubuntu) More...

Protected Attributes
QListWidget *	m_textDisplay
	Associated text display widget. More...

QWidget *	m_parentWidget
	Parent widget. More...

MainWindow *	m_parentWindow
	Parent window (if any) More...

QMutex	m_mutex
	Mutex for concurrent thread access to console. More...

QVector< ConsoleItemType >	m_queue
	Queue for incoming messages. More...

QTimer	m_timer
	Timer for auto-refresh. More...

QFile	m_logFile
	Log file. More...

QTextStream *	m_logStream
	Log file stream. More...

Static Protected Attributes
static bool	s_showQtMessagesInConsole = false
	Whether to show Qt messages (qDebug / qWarning / etc.) in Console. More...

static bool	s_redirectToStdOut = false

Additional Inherited Members
Public Types inherited from CVLog
enum	MessageLevelFlags { LOG_VERBOSE = 0 , LOG_STANDARD = 1 , LOG_IMPORTANT = 2 , LOG_WARNING = 3 , LOG_ERROR = 4 , DEBUG_FLAG = 8 }
	Message level. More...

Detailed Description

Console.

Definition at line 35 of file ecvConsole.h.

Member Typedef Documentation

◆ ConsoleItemType

using ecvConsole::ConsoleItemType = QPair<QString, int>

protected

Queue element type (message + color)

Definition at line 118 of file ecvConsole.h.

Constructor & Destructor Documentation

◆ ~ecvConsole()

ecvConsole::~ecvConsole ( )

override

Destructor.

Definition at line 105 of file ecvConsole.cpp.

References setLogFile().

◆ ecvConsole()

ecvConsole::ecvConsole ( )

protected

Default constructor.

Constructor is protected to avoid using this object as a non static class.

Definition at line 99 of file ecvConsole.cpp.

Referenced by Init(), and TheInstance().

Member Function Documentation

◆ EnableQtMessages()

void ecvConsole::EnableQtMessages ( bool state )

static

Whether to show Qt messages (qDebug / qWarning / etc.) in Console.

Definition at line 170 of file ecvConsole.cpp.

References ecvPS::Console(), s_showQtMessagesInConsole, and ecvSettingManager::setValue().

◆ generateLogFileName()

QString ecvConsole::generateLogFileName ( const QString & prefix )

staticprotected

Generate log file name with timestamp and pid.

Definition at line 345 of file ecvConsole.cpp.

Referenced by setLogFile().

◆ getLogDirectory()

QString ecvConsole::getLogDirectory ( )

staticprotected

Get appropriate log directory path (handles permissions on Ubuntu)

Definition at line 357 of file ecvConsole.cpp.

References cloudViewer::t::geometry::path.

Referenced by setLogFile().

◆ Init()

void ecvConsole::Init	(	QListWidget *	textDisplay = `nullptr`,
		QWidget *	parentWidget = `nullptr`,
		MainWindow *	parentWindow = `nullptr`,
		bool	redirectToStdOut = `false`
	)

static

Inits console (and optionaly associates it with a text output widget)

WARNING: in release mode, no message will be output if no 'textDisplay' widget is defined. Moreover, error messages will only appear in a (blocking) QMessageBox if a 'parentWidget' widget is defined. In debug mode, all message are sent to system console (with 'printf').

Parameters

textDisplay	text output widget (optional)
parentWidget	parent widget (optional)
parentWindow	parent window (if any - optional)

Definition at line 178 of file ecvConsole.cpp.

References ecvPS::Console(), ecvConsole(), ecvSettingManager::getValue(), Settings::LOGFILE_PREFIX, myMessageOutput(), parentWidget(), CVLog::RegisterInstance(), s_console, s_redirectToStdOut, and s_showQtMessagesInConsole.

Referenced by ccCommandLineParser::Parse(), and CommandLogFile::process().

◆ logMessage()

void ecvConsole::logMessage	(	const QString &	message,
		int	level
	)

overrideprotectedvirtual

Generic message logging method.

To be implemented by child class.

Warning: MUST BE THREAD SAFE!

Parameters

message	message
level	message severity (see MessageLevelFlags)

Implements CVLog.

Definition at line 276 of file ecvConsole.cpp.

References DATETIME, QtCompat::endl(), CVLog::LOG_ERROR, CVLog::LOG_VERBOSE, CVLog::LOG_WARNING, m_logFile, m_logStream, m_mutex, m_parentWidget, m_queue, m_textDisplay, and s_redirectToStdOut.

◆ parentWidget()

QWidget* ecvConsole::parentWidget ( )

inline

Returns the parent widget (if any)

Definition at line 83 of file ecvConsole.h.

References m_parentWidget.

Referenced by Init().

◆ QtMessagesEnabled()

static bool ecvConsole::QtMessagesEnabled ( )

inlinestatic

Returns whether to show Qt messages (qDebug / qWarning / etc.) in Console or not

Definition at line 80 of file ecvConsole.h.

References s_showQtMessagesInConsole.

Referenced by myMessageOutput().

◆ refresh

void ecvConsole::refresh ( )

slot

Refreshes console (display all messages still in queue)

Definition at line 224 of file ecvConsole.cpp.

References ecvColor::blue(), CVLog::DEBUG_FLAG, MainWindow::forceConsoleDisplay(), CVLog::LOG_ERROR, CVLog::LOG_WARNING, m_logFile, m_logStream, m_mutex, m_parentWindow, m_queue, m_textDisplay, and ecvColor::red().

Referenced by setAutoRefresh().

◆ ReleaseInstance()

void ecvConsole::ReleaseInstance ( bool flush = true )

static

Releases unique instance.

Definition at line 90 of file ecvConsole.cpp.

References CVLog::RegisterInstance(), and s_console.

Referenced by ccCommandLineParser::Parse(), and MainWindow::~MainWindow().

◆ setAutoRefresh()

void ecvConsole::setAutoRefresh ( bool state )

Sets auto-refresh state.

Definition at line 214 of file ecvConsole.cpp.

References m_timer, and refresh().

Referenced by setLogFile().

◆ setLogFile()

bool ecvConsole::setLogFile ( const QString & logPrefix )

Sets log file with prefix (generates timestamped log file like glog)

Parameters

logPrefix log file prefix (e.g., "ACloudviewer")

Returns: true if successful, false otherwise Generates log file name: <prefix>.<timestamp>.<pid>.log

Definition at line 454 of file ecvConsole.cpp.

References cloudViewer::core::Append(), QtCompat::endl(), CVLog::Error(), generateLogFileName(), getLogDirectory(), m_logFile, m_logStream, m_mutex, CVLog::Print(), and setAutoRefresh().

Referenced by ~ecvConsole().

◆ TheInstance()

ecvConsole * ecvConsole::TheInstance ( bool autoInit = true )

static

Returns the (unique) static instance.

Parameters

autoInit automatically initialize the console instance (with no widget!) if not done already

Definition at line 81 of file ecvConsole.cpp.

References ecvConsole(), CVLog::RegisterInstance(), and s_console.

Member Data Documentation

◆ m_logFile

QFile ecvConsole::m_logFile

protected

Log file.

Definition at line 127 of file ecvConsole.h.

Referenced by logMessage(), refresh(), and setLogFile().

◆ m_logStream

QTextStream* ecvConsole::m_logStream

protected

Log file stream.

Definition at line 129 of file ecvConsole.h.

Referenced by logMessage(), refresh(), and setLogFile().

◆ m_mutex

QMutex ecvConsole::m_mutex

protected

Mutex for concurrent thread access to console.

Definition at line 115 of file ecvConsole.h.

Referenced by logMessage(), refresh(), and setLogFile().

◆ m_parentWidget

QWidget* ecvConsole::m_parentWidget

protected

Parent widget.

Definition at line 109 of file ecvConsole.h.

Referenced by logMessage(), and parentWidget().

◆ m_parentWindow

MainWindow* ecvConsole::m_parentWindow

protected

Parent window (if any)

Definition at line 112 of file ecvConsole.h.

Referenced by refresh().

◆ m_queue

QVector<ConsoleItemType> ecvConsole::m_queue

protected

Queue for incoming messages.

Definition at line 121 of file ecvConsole.h.

Referenced by logMessage(), and refresh().

◆ m_textDisplay

QListWidget* ecvConsole::m_textDisplay

protected

Associated text display widget.

Definition at line 106 of file ecvConsole.h.

Referenced by logMessage(), and refresh().

◆ m_timer

QTimer ecvConsole::m_timer

protected

Timer for auto-refresh.

Definition at line 124 of file ecvConsole.h.

Referenced by setAutoRefresh().

◆ s_redirectToStdOut

bool ecvConsole::s_redirectToStdOut = false

staticprotected

Definition at line 133 of file ecvConsole.h.

Referenced by Init(), and logMessage().

◆ s_showQtMessagesInConsole

bool ecvConsole::s_showQtMessagesInConsole = false

staticprotected

Whether to show Qt messages (qDebug / qWarning / etc.) in Console.

Definition at line 132 of file ecvConsole.h.

Referenced by EnableQtMessages(), Init(), and QtMessagesEnabled().

The documentation for this class was generated from the following files:

/root/ACloudViewer/app/ecvConsole.h
/root/ACloudViewer/app/ecvConsole.cpp

Public Slots

Public Member Functions

Static Public Member Functions

Protected Types

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ConsoleItemType

Constructor & Destructor Documentation

◆ ~ecvConsole()

◆ ecvConsole()

Member Function Documentation

◆ EnableQtMessages()

◆ generateLogFileName()

◆ getLogDirectory()

◆ Init()

◆ logMessage()

◆ parentWidget()

◆ QtMessagesEnabled()

◆ refresh

◆ ReleaseInstance()

◆ setAutoRefresh()

◆ setLogFile()

◆ TheInstance()

Member Data Documentation

◆ m_logFile

◆ m_logStream

◆ m_mutex

◆ m_parentWidget

◆ m_parentWindow

◆ m_queue

◆ m_textDisplay

◆ m_timer

◆ s_redirectToStdOut

◆ s_showQtMessagesInConsole
