#include <ScaledIntegerNodeImpl.h>

Inheritance diagram for e57::ScaledIntegerNodeImpl:

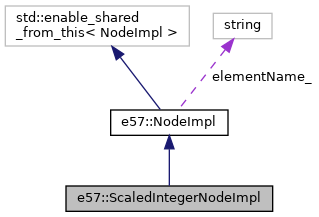

Collaboration diagram for e57::ScaledIntegerNodeImpl:

[legend]

Public Member Functions
	ScaledIntegerNodeImpl (ImageFileImplWeakPtr destImageFile, int64_t value=0, int64_t minimum=0, int64_t maximum=0, double scale=1.0, double offset=0.0)

	ScaledIntegerNodeImpl (ImageFileImplWeakPtr destImageFile, double scaledValue=0., double scaledMinimum=0., double scaledMaximum=0., double scale=1.0, double offset=0.0)

	~ScaledIntegerNodeImpl () override=default

NodeType	type () const override

bool	isTypeEquivalent (NodeImplSharedPtr ni) override

bool	isDefined (const ustring &pathName) override

int64_t	rawValue ()

double	scaledValue ()

int64_t	minimum ()

double	scaledMinimum ()

int64_t	maximum ()

double	scaledMaximum ()

double	scale ()

double	offset ()

void	checkLeavesInSet (const StringSet &pathNames, NodeImplSharedPtr origin) override

void	writeXml (ImageFileImplSharedPtr imf, CheckedFile &cf, int indent, const char *forcedFieldName=nullptr) override

void	dump (int indent=0, std::ostream &os=std::cout) const override

Public Member Functions inherited from e57::NodeImpl
void	checkImageFileOpen (const char srcFileName, int srcLineNumber, const char srcFunctionName) const

bool	isRoot () const

NodeImplSharedPtr	parent ()

ustring	pathName () const

ustring	relativePathName (const NodeImplSharedPtr &origin, ustring childPathName=ustring()) const

ustring	elementName () const

ImageFileImplSharedPtr	destImageFile ()

ustring	imageFileName () const

bool	isAttached () const

virtual void	setAttachedRecursive ()

void	setParent (NodeImplSharedPtr parent, const ustring &elementName)

bool	isTypeConstrained ()

virtual NodeImplSharedPtr	get (const ustring &pathName)

virtual void	set (const ustring &pathName, NodeImplSharedPtr ni, bool autoPathCreate=false)

virtual void	set (const StringList &fields, unsigned level, NodeImplSharedPtr ni, bool autoPathCreate=false)

void	checkBuffers (const std::vector< SourceDestBuffer > &sdbufs, bool allowMissing)

bool	findTerminalPosition (const NodeImplSharedPtr &target, uint64_t &countFromLeft)

virtual	~NodeImpl ()=default

Additional Inherited Members
Protected Member Functions inherited from e57::NodeImpl
	NodeImpl (ImageFileImplWeakPtr destImageFile)

NodeImpl &	operator= (NodeImpl &n)

virtual NodeImplSharedPtr	lookup (const ustring &)

NodeImplSharedPtr	getRoot ()

Protected Attributes inherited from e57::NodeImpl
ImageFileImplWeakPtr	destImageFile_

NodeImplWeakPtr	parent_

ustring	elementName_

bool	isAttached_

Detailed Description

Definition at line 33 of file ScaledIntegerNodeImpl.h.

Constructor & Destructor Documentation

◆ ScaledIntegerNodeImpl() [1/2]

e57::ScaledIntegerNodeImpl::ScaledIntegerNodeImpl	(	ImageFileImplWeakPtr	destImageFile,
		int64_t	value = `0`,
		int64_t	minimum = `0`,
		int64_t	maximum = `0`,
		double	scale = `1.0`,
		double	offset = `0.0`
	)

Enforce the given bounds on raw value

Definition at line 35 of file ScaledIntegerNodeImpl.cpp.

References e57::E57_ERROR_VALUE_OUT_OF_BOUNDS, E57_EXCEPTION2, maximum(), minimum(), e57::NodeImpl::pathName(), rawValue(), and e57::toString().

◆ ScaledIntegerNodeImpl() [2/2]

e57::ScaledIntegerNodeImpl::ScaledIntegerNodeImpl	(	ImageFileImplWeakPtr	destImageFile,
		double	scaledValue = `0.`,
		double	scaledMinimum = `0.`,
		double	scaledMaximum = `0.`,
		double	scale = `1.0`,
		double	offset = `0.0`
	)

Enforce the given bounds on raw value

Definition at line 51 of file ScaledIntegerNodeImpl.cpp.

References e57::E57_ERROR_VALUE_OUT_OF_BOUNDS, E57_EXCEPTION2, e57::NodeImpl::pathName(), scaledMaximum(), scaledMinimum(), scaledValue(), and e57::toString().

◆ ~ScaledIntegerNodeImpl()

e57::ScaledIntegerNodeImpl::~ScaledIntegerNodeImpl ( )

overridedefault

Member Function Documentation

◆ checkLeavesInSet()

void e57::ScaledIntegerNodeImpl::checkLeavesInSet	(	const StringSet &	pathNames,
		NodeImplSharedPtr	origin
	)

overridevirtual

We are a leaf node, so verify that we are listed in set.

Implements e57::NodeImpl.

Definition at line 168 of file ScaledIntegerNodeImpl.cpp.

References e57::E57_ERROR_NO_BUFFER_FOR_ELEMENT, E57_EXCEPTION2, e57::NodeImpl::pathName(), and e57::NodeImpl::relativePathName().

◆ dump()

void e57::ScaledIntegerNodeImpl::dump	(	int	indent = `0`,
		std::ostream &	os = `std::cout`
	)		const

overridevirtual

Reimplemented from e57::NodeImpl.

Definition at line 226 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::dump(), QtCompat::endl(), e57::space(), and type().

◆ isDefined()

bool e57::ScaledIntegerNodeImpl::isDefined ( const ustring & pathName )

overridevirtual

We have no sub-structure, so if path not empty return false

Implements e57::NodeImpl.

Definition at line 114 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::pathName().

◆ isTypeEquivalent()

bool e57::ScaledIntegerNodeImpl::isTypeEquivalent ( NodeImplSharedPtr ni )

overridevirtual

Same node type?

Downcast to shared_ptr<ScaledIntegerNodeImpl>

minimum must match

maximum must match

scale must match

offset must match

ignore value_, doesn't have to match

Types match

Implements e57::NodeImpl.

Definition at line 71 of file ScaledIntegerNodeImpl.cpp.

References e57::E57_SCALED_INTEGER.

◆ maximum()

int64_t e57::ScaledIntegerNodeImpl::maximum ( )

Definition at line 145 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ minimum()

int64_t e57::ScaledIntegerNodeImpl::minimum ( )

Definition at line 134 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ offset()

double e57::ScaledIntegerNodeImpl::offset ( )

Definition at line 162 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

◆ rawValue()

int64_t e57::ScaledIntegerNodeImpl::rawValue ( )

Definition at line 122 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ scale()

double e57::ScaledIntegerNodeImpl::scale ( )

Definition at line 156 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

◆ scaledMaximum()

double e57::ScaledIntegerNodeImpl::scaledMaximum ( )

Definition at line 150 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ scaledMinimum()

double e57::ScaledIntegerNodeImpl::scaledMinimum ( )

Definition at line 139 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ scaledValue()

double e57::ScaledIntegerNodeImpl::scaledValue ( )

Definition at line 128 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by ScaledIntegerNodeImpl().

◆ type()

NodeType e57::ScaledIntegerNodeImpl::type ( ) const

inlineoverridevirtual

Implements e57::NodeImpl.

Definition at line 44 of file ScaledIntegerNodeImpl.h.

References e57::E57_SCALED_INTEGER.

Referenced by dump().

◆ writeXml()

void e57::ScaledIntegerNodeImpl::writeXml	(	ImageFileImplSharedPtr	imf,
		CheckedFile &	cf,
		int	indent,
		const char *	forcedFieldName = `nullptr`
	)

overridevirtual

Don't need to write if are default values

Write value as child text, unless it is the default value

Implements e57::NodeImpl.

Definition at line 179 of file ScaledIntegerNodeImpl.cpp.

References e57::NodeImpl::elementName_, and e57::space().

The documentation for this class was generated from the following files:

/root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/ScaledIntegerNodeImpl.h
/root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/ScaledIntegerNodeImpl.cpp
