e57::IntegerNodeImpl Class Reference

#include <IntegerNodeImpl.h>

Inheritance diagram for e57::IntegerNodeImpl:

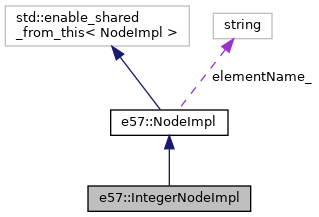

Collaboration diagram for e57::IntegerNodeImpl:

Public Member Functions
	IntegerNodeImpl (ImageFileImplWeakPtr destImageFile, int64_t value=0, int64_t minimum=0, int64_t maximum=0)
	~IntegerNodeImpl () override=default
NodeType	type () const override
bool	isTypeEquivalent (NodeImplSharedPtr ni) override
bool	isDefined (const ustring &pathName) override
int64_t	value ()
int64_t	minimum ()
int64_t	maximum ()
void	checkLeavesInSet (const StringSet &pathNames, NodeImplSharedPtr origin) override
void	writeXml (ImageFileImplSharedPtr imf, CheckedFile &cf, int indent, const char *forcedFieldName=nullptr) override
void	dump (int indent=0, std::ostream &os=std::cout) const override
Public Member Functions inherited from e57::NodeImpl
void	checkImageFileOpen (const char *srcFileName, int srcLineNumber, const char *srcFunctionName) const
bool	isRoot () const
NodeImplSharedPtr	parent ()
ustring	pathName () const
ustring	relativePathName (const NodeImplSharedPtr &origin, ustring childPathName=ustring()) const
ustring	elementName () const
ImageFileImplSharedPtr	destImageFile ()
ustring	imageFileName () const
bool	isAttached () const
virtual void	setAttachedRecursive ()
void	setParent (NodeImplSharedPtr parent, const ustring &elementName)
bool	isTypeConstrained ()
virtual NodeImplSharedPtr	get (const ustring &pathName)
virtual void	set (const ustring &pathName, NodeImplSharedPtr ni, bool autoPathCreate=false)
virtual void	set (const StringList &fields, unsigned level, NodeImplSharedPtr ni, bool autoPathCreate=false)
void	checkBuffers (const std::vector< SourceDestBuffer > &sdbufs, bool allowMissing)
bool	findTerminalPosition (const NodeImplSharedPtr &target, uint64_t &countFromLeft)
virtual	~NodeImpl ()=default

Additional Inherited Members
Protected Member Functions inherited from e57::NodeImpl
	NodeImpl (ImageFileImplWeakPtr destImageFile)
NodeImpl &	operator= (NodeImpl &n)
virtual NodeImplSharedPtr	lookup (const ustring &)
NodeImplSharedPtr	getRoot ()
Protected Attributes inherited from e57::NodeImpl
ImageFileImplWeakPtr	destImageFile_
NodeImplWeakPtr	parent_
ustring	elementName_
bool	isAttached_

Detailed Description

Definition at line 33 of file IntegerNodeImpl.h.

Constructor & Destructor Documentation

IntegerNodeImpl()

e57::IntegerNodeImpl::IntegerNodeImpl	(	ImageFileImplWeakPtr	destImageFile,
		int64_t	value = 0,
		int64_t	minimum = 0,
		int64_t	maximum = 0
	)

Enforce the given bounds

Definition at line 33 of file IntegerNodeImpl.cpp.

References e57::E57_ERROR_VALUE_OUT_OF_BOUNDS, E57_EXCEPTION2, maximum(), minimum(), e57::NodeImpl::pathName(), e57::toString(), and value().

~IntegerNodeImpl()

e57::IntegerNodeImpl::~IntegerNodeImpl ( )

overridedefault

Member Function Documentation

checkLeavesInSet()

void e57::IntegerNodeImpl::checkLeavesInSet ( const StringSet &  pathNames, NodeImplSharedPtr  origin  )

overridevirtual

We are a leaf node, so verify that we are listed in set.

Implements e57::NodeImpl.

Definition at line 105 of file IntegerNodeImpl.cpp.

References e57::E57_ERROR_NO_BUFFER_FOR_ELEMENT, E57_EXCEPTION2, e57::NodeImpl::pathName(), and e57::NodeImpl::relativePathName().

dump()

void e57::IntegerNodeImpl::dump ( int  indent = 0, std::ostream &  os = std::cout  ) const

overridevirtual

Reimplemented from e57::NodeImpl.

Definition at line 155 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::dump(), QtCompat::endl(), e57::space(), and type().

isDefined()

bool e57::IntegerNodeImpl::isDefined ( const ustring &  pathName )

overridevirtual

We have no sub-structure, so if path not empty return false

Implements e57::NodeImpl.

Definition at line 79 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::pathName().

isTypeEquivalent()

bool e57::IntegerNodeImpl::isTypeEquivalent ( NodeImplSharedPtr  ni )

overridevirtual

Same node type?

Downcast to shared_ptr<IntegerNodeImpl>

minimum must match

maximum must match

ignore value_, doesn't have to match

Types match

Implements e57::NodeImpl.

Definition at line 48 of file IntegerNodeImpl.cpp.

References e57::E57_INTEGER.

maximum()

int64_t e57::IntegerNodeImpl::maximum

(

)

Definition at line 99 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by IntegerNodeImpl().

minimum()

int64_t e57::IntegerNodeImpl::minimum

(

)

Definition at line 93 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by IntegerNodeImpl().

type()

NodeType e57::IntegerNodeImpl::type ( ) const

inlineoverridevirtual

Implements e57::NodeImpl.

Definition at line 40 of file IntegerNodeImpl.h.

References e57::E57_INTEGER.

Referenced by dump().

value()

int64_t e57::IntegerNodeImpl::value

(

)

Definition at line 87 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by IntegerNodeImpl().

writeXml()

void e57::IntegerNodeImpl::writeXml ( ImageFileImplSharedPtr  imf, CheckedFile &  cf, int  indent, const char *  forcedFieldName = nullptr  )

overridevirtual

Don't need to write if are default values

Write value as child text, unless it is the default value

Implements e57::NodeImpl.

Definition at line 116 of file IntegerNodeImpl.cpp.

References e57::NodeImpl::elementName_, and e57::space().

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/IntegerNodeImpl.h
• /root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/IntegerNodeImpl.cpp
