e57::DataPacket Class Reference

#include <Packet.h>

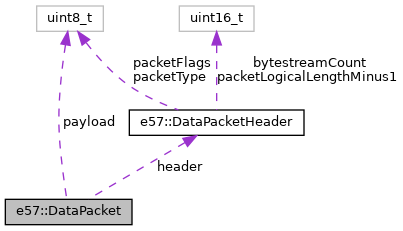

Collaboration diagram for e57::DataPacket:

Public Member Functions
	DataPacket ()
void	verify (unsigned bufferLength=0) const
char *	getBytestream (unsigned bytestreamNumber, unsigned &byteCount)
unsigned	getBytestreamBufferLength (unsigned bytestreamNumber)
void	dump (int indent=0, std::ostream &os=std::cout) const

Public Attributes
DataPacketHeader	header
uint8_t	payload [PayloadSize]

Static Public Attributes
static constexpr int	PayloadSize = DATA_PACKET_MAX - sizeof( DataPacketHeader )

Detailed Description

Definition at line 122 of file Packet.h.

Constructor & Destructor Documentation

DataPacket()

DataPacket::DataPacket

(

)

Double check that packet struct is correct length. Watch out for RTTI increasing the size.

Definition at line 402 of file Packet.cpp.

Member Function Documentation

dump()

void DataPacket::dump	(	int	indent = 0,
		std::ostream &	os = std::cout
	)		const

Definition at line 508 of file Packet.cpp.

References e57::DataPacketHeader::bytestreamCount, e57::DATA_PACKET, e57::DATA_PACKET_MAX, e57::E57_ERROR_INTERNAL, E57_EXCEPTION2, QtCompat::endl(), header, e57::DataPacketHeader::packetType, payload, e57::space(), and e57::toString().

Referenced by e57::PacketReadCache::dump().

getBytestream()

char * DataPacket::getBytestream	(	unsigned	bytestreamNumber,
		unsigned &	byteCount
	)

Verify that packet is correct type

Check bytestreamNumber in bounds

Calc positions in packet

Sum size of preceeding stream buffers to get position

Double check buffer is completely within packet

Return start of buffer

Definition at line 453 of file Packet.cpp.

References e57::DataPacketHeader::bytestreamCount, e57::DATA_PACKET, e57::E57_ERROR_BAD_CV_PACKET, e57::E57_ERROR_INTERNAL, E57_EXCEPTION2, QtCompat::endl(), header, e57::DataPacketHeader::packetLogicalLengthMinus1, e57::DataPacketHeader::packetType, payload, and e57::toString().

Referenced by getBytestreamBufferLength().

getBytestreamBufferLength()

unsigned DataPacket::getBytestreamBufferLength

(

unsigned

bytestreamNumber

)

Definition at line 499 of file Packet.cpp.

References getBytestream().

verify()

void DataPacket::verify

(

unsigned

bufferLength = 0

)

const

Verify header is good

Calc sum of lengths of each bytestream buffer in this packet

Calc size of packet needed

If needed is not with 3 bytes of actual packet size, have an error

Verify that padding at end of packet is zero

Definition at line 409 of file Packet.cpp.

References e57::DataPacketHeader::bytestreamCount, e57::E57_ERROR_BAD_CV_PACKET, E57_EXCEPTION2, QtCompat::endl(), header, e57::DataPacketHeader::packetLogicalLengthMinus1, payload, e57::toString(), and e57::DataPacketHeader::verify().

Referenced by e57::PacketReadCache::readPacket().

Member Data Documentation

header

DataPacketHeader e57::DataPacket::header

Definition at line 137 of file Packet.h.

Referenced by dump(), getBytestream(), and verify().

payload

uint8_t e57::DataPacket::payload[PayloadSize]

Definition at line 139 of file Packet.h.

Referenced by dump(), getBytestream(), and verify().

PayloadSize

constexpr int e57::DataPacket::PayloadSize = DATA_PACKET_MAX - sizeof( DataPacketHeader )

staticconstexpr

Definition at line 135 of file Packet.h.

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/Packet.h
• /root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/Packet.cpp
