#include <CompressedVectorNodeImpl.h>

Inheritance diagram for e57::CompressedVectorNodeImpl:

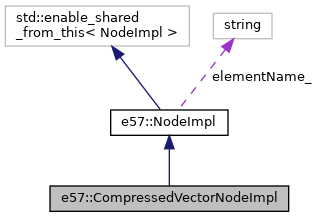

Collaboration diagram for e57::CompressedVectorNodeImpl:

[legend]

Public Member Functions
	CompressedVectorNodeImpl (ImageFileImplWeakPtr destImageFile)

	~CompressedVectorNodeImpl () override=default

NodeType	type () const override

bool	isTypeEquivalent (NodeImplSharedPtr ni) override

bool	isDefined (const ustring &pathName) override

void	setAttachedRecursive () override

void	setPrototype (const NodeImplSharedPtr &prototype)

NodeImplSharedPtr	getPrototype () const

void	setCodecs (const std::shared_ptr< VectorNodeImpl > &codecs)

std::shared_ptr< VectorNodeImpl >	getCodecs () const

int64_t	childCount () const

void	checkLeavesInSet (const StringSet &pathNames, NodeImplSharedPtr origin) override

void	writeXml (ImageFileImplSharedPtr imf, CheckedFile &cf, int indent, const char *forcedFieldName=nullptr) override

std::shared_ptr< CompressedVectorWriterImpl >	writer (std::vector< SourceDestBuffer > sbufs)
	Iterator constructors. More...

std::shared_ptr< CompressedVectorReaderImpl >	reader (std::vector< SourceDestBuffer > dbufs)

int64_t	getRecordCount () const

uint64_t	getBinarySectionLogicalStart () const

void	setRecordCount (int64_t recordCount)

void	setBinarySectionLogicalStart (uint64_t binarySectionLogicalStart)

void	dump (int indent=0, std::ostream &os=std::cout) const override

Public Member Functions inherited from e57::NodeImpl
void	checkImageFileOpen (const char srcFileName, int srcLineNumber, const char srcFunctionName) const

bool	isRoot () const

NodeImplSharedPtr	parent ()

ustring	pathName () const

ustring	relativePathName (const NodeImplSharedPtr &origin, ustring childPathName=ustring()) const

ustring	elementName () const

ImageFileImplSharedPtr	destImageFile ()

ustring	imageFileName () const

bool	isAttached () const

void	setParent (NodeImplSharedPtr parent, const ustring &elementName)

bool	isTypeConstrained ()

virtual NodeImplSharedPtr	get (const ustring &pathName)

virtual void	set (const ustring &pathName, NodeImplSharedPtr ni, bool autoPathCreate=false)

virtual void	set (const StringList &fields, unsigned level, NodeImplSharedPtr ni, bool autoPathCreate=false)

void	checkBuffers (const std::vector< SourceDestBuffer > &sdbufs, bool allowMissing)

bool	findTerminalPosition (const NodeImplSharedPtr &target, uint64_t &countFromLeft)

virtual	~NodeImpl ()=default

Additional Inherited Members
Protected Member Functions inherited from e57::NodeImpl
	NodeImpl (ImageFileImplWeakPtr destImageFile)

NodeImpl &	operator= (NodeImpl &n)

virtual NodeImplSharedPtr	lookup (const ustring &)

NodeImplSharedPtr	getRoot ()

Protected Attributes inherited from e57::NodeImpl
ImageFileImplWeakPtr	destImageFile_

NodeImplWeakPtr	parent_

ustring	elementName_

bool	isAttached_

Detailed Description

Definition at line 33 of file CompressedVectorNodeImpl.h.

Constructor & Destructor Documentation

◆ CompressedVectorNodeImpl()

e57::CompressedVectorNodeImpl::CompressedVectorNodeImpl ( ImageFileImplWeakPtr destImageFile )

Definition at line 37 of file CompressedVectorNodeImpl.cpp.

◆ ~CompressedVectorNodeImpl()

e57::CompressedVectorNodeImpl::~CompressedVectorNodeImpl ( )

overridedefault

Member Function Documentation

◆ checkLeavesInSet()

void e57::CompressedVectorNodeImpl::checkLeavesInSet	(	const StringSet &	pathNames,
		NodeImplSharedPtr	origin
	)

overridevirtual

Since only called for prototype nodes, should't be able to get here since CompressedVectors can't be in prototypes

Implements e57::NodeImpl.

Definition at line 190 of file CompressedVectorNodeImpl.cpp.

References e57::E57_ERROR_INTERNAL, E57_EXCEPTION2, and e57::NodeImpl::pathName().

◆ childCount()

int64_t e57::CompressedVectorNodeImpl::childCount ( ) const

Definition at line 184 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by e57::Decoder::DecoderFactory().

◆ dump()

void e57::CompressedVectorNodeImpl::dump	(	int	indent = `0`,
		std::ostream &	os = `std::cout`
	)		const

overridevirtual

Reimplemented from e57::NodeImpl.

Definition at line 232 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::dump(), QtCompat::endl(), e57::space(), and type().

◆ getBinarySectionLogicalStart()

uint64_t e57::CompressedVectorNodeImpl::getBinarySectionLogicalStart ( ) const

inline

Definition at line 67 of file CompressedVectorNodeImpl.h.

◆ getCodecs()

std::shared_ptr< VectorNodeImpl > e57::CompressedVectorNodeImpl::getCodecs ( ) const

Definition at line 122 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

◆ getPrototype()

NodeImplSharedPtr e57::CompressedVectorNodeImpl::getPrototype ( ) const

Definition at line 79 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen().

Referenced by e57::Decoder::DecoderFactory().

◆ getRecordCount()

int64_t e57::CompressedVectorNodeImpl::getRecordCount ( ) const

inline

Definition at line 63 of file CompressedVectorNodeImpl.h.

◆ isDefined()

bool e57::CompressedVectorNodeImpl::isDefined ( const ustring & pathName )

overridevirtual

Implements e57::NodeImpl.

Definition at line 161 of file CompressedVectorNodeImpl.cpp.

References e57::E57_ERROR_NOT_IMPLEMENTED, E57_EXCEPTION2, and e57::NodeImpl::pathName().

◆ isTypeEquivalent()

bool e57::CompressedVectorNodeImpl::isTypeEquivalent ( NodeImplSharedPtr ni )

overridevirtual

Same node type?

recordCount must match

Prototypes and codecs must match ???

Implements e57::NodeImpl.

Definition at line 128 of file CompressedVectorNodeImpl.cpp.

References e57::E57_COMPRESSED_VECTOR.

◆ reader()

std::shared_ptr< CompressedVectorReaderImpl > e57::CompressedVectorNodeImpl::reader ( std::vector< SourceDestBuffer > dbufs )

Check don't have any writers/readers open for this ImageFile

dbufs can't be empty

Can be read or write mode, but must be attached

Get pointer to me (really shared_ptr<CompressedVectorNodeImpl>)

Downcast pointer to right type

Return a shared_ptr to new object

Definition at line 309 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen(), CompressedVectorReaderImpl, e57::NodeImpl::destImageFile(), e57::NodeImpl::destImageFile_, e57::E57_ERROR_BAD_API_ARGUMENT, e57::E57_ERROR_NODE_UNATTACHED, e57::E57_ERROR_TOO_MANY_READERS, e57::E57_ERROR_TOO_MANY_WRITERS, E57_EXCEPTION2, e57::NodeImpl::isAttached(), and e57::toString().

◆ setAttachedRecursive()

void e57::CompressedVectorNodeImpl::setAttachedRecursive ( )

overridevirtual

Mark this node as attached to an ImageFile

Mark nodes in prototype tree, if defined

Mark nodes in codecs tree if defined

Reimplemented from e57::NodeImpl.

Definition at line 166 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::isAttached_.

◆ setBinarySectionLogicalStart()

void e57::CompressedVectorNodeImpl::setBinarySectionLogicalStart ( uint64_t binarySectionLogicalStart )

inline

Definition at line 75 of file CompressedVectorNodeImpl.h.

◆ setCodecs()

void e57::CompressedVectorNodeImpl::setCodecs ( const std::shared_ptr< VectorNodeImpl > & codecs )

Can't set codecs twice.

codecs can't have a parent (must be a root node)

Verify that codecs is destined for same ImageFile as this is

Note that codecs is not attached to CompressedVector in a parent/child relationship. This means that codecs is a root node (has no parent).

Definition at line 85 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::destImageFile(), e57::E57_ERROR_ALREADY_HAS_PARENT, e57::E57_ERROR_DIFFERENT_DEST_IMAGEFILE, e57::E57_ERROR_SET_TWICE, E57_EXCEPTION2, and e57::NodeImpl::pathName().

◆ setPrototype()

void e57::CompressedVectorNodeImpl::setPrototype ( const NodeImplSharedPtr & prototype )

Can't set prototype twice.

prototype can't have a parent (must be a root node)

Verify that prototype is destined for same ImageFile as this is

!! check for incomplete CompressedVectors when closing file

Note that prototype is not attached to CompressedVector in a parent/child relationship. This means that prototype is a root node (has no parent).

Definition at line 42 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::destImageFile(), e57::E57_ERROR_ALREADY_HAS_PARENT, e57::E57_ERROR_DIFFERENT_DEST_IMAGEFILE, e57::E57_ERROR_SET_TWICE, E57_EXCEPTION2, and e57::NodeImpl::pathName().

◆ setRecordCount()

void e57::CompressedVectorNodeImpl::setRecordCount ( int64_t recordCount )

inline

Definition at line 71 of file CompressedVectorNodeImpl.h.

◆ type()

NodeType e57::CompressedVectorNodeImpl::type ( ) const

inlineoverridevirtual

Implements e57::NodeImpl.

Definition at line 39 of file CompressedVectorNodeImpl.h.

References e57::E57_COMPRESSED_VECTOR.

Referenced by dump().

◆ writer()

std::shared_ptr< CompressedVectorWriterImpl > e57::CompressedVectorNodeImpl::writer ( std::vector< SourceDestBuffer > sbufs )

Iterator constructors.

Check don't have any writers/readers open for this ImageFile

sbufs can't be empty

Get pointer to me (really shared_ptr<CompressedVectorNodeImpl>)

Downcast pointer to right type

Return a shared_ptr to new object

Definition at line 260 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::checkImageFileOpen(), e57::NodeImpl::CompressedVectorWriterImpl, e57::NodeImpl::destImageFile(), e57::NodeImpl::destImageFile_, e57::E57_ERROR_BAD_API_ARGUMENT, e57::E57_ERROR_FILE_IS_READ_ONLY, e57::E57_ERROR_NODE_UNATTACHED, e57::E57_ERROR_TOO_MANY_READERS, e57::E57_ERROR_TOO_MANY_WRITERS, E57_EXCEPTION2, e57::NodeImpl::isAttached(), and e57::toString().

◆ writeXml()

void e57::CompressedVectorNodeImpl::writeXml	(	ImageFileImplSharedPtr	imf,
		CheckedFile &	cf,
		int	indent,
		const char *	forcedFieldName = `nullptr`
	)

overridevirtual

Implements e57::NodeImpl.

Definition at line 199 of file CompressedVectorNodeImpl.cpp.

References e57::NodeImpl::elementName_, e57::CheckedFile::logicalToPhysical(), and e57::space().

The documentation for this class was generated from the following files:

/root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/CompressedVectorNodeImpl.h
/root/ACloudViewer/plugins/core/IO/qE57IO/extern/libE57Format/src/CompressedVectorNodeImpl.cpp
