cloudViewer::SimpleRefTriangle Class Reference

A simple triangle class. More...

#include <SimpleTriangle.h>

Inheritance diagram for cloudViewer::SimpleRefTriangle:

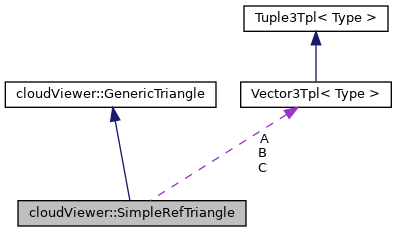

Collaboration diagram for cloudViewer::SimpleRefTriangle:

Public Member Functions
	SimpleRefTriangle ()
	Default constructor. More...
	SimpleRefTriangle (const CCVector3 *_A, const CCVector3 *_B, const CCVector3 *_C)
	Constructor from 3 vertices (references to) More...
const CCVector3 *	_getA () const override
	Returns the first vertex (A) More...
const CCVector3 *	_getB () const override
	Returns the second vertex (B) More...
const CCVector3 *	_getC () const override
	Returns the third vertex (C) More...
Public Member Functions inherited from cloudViewer::GenericTriangle
virtual	~GenericTriangle ()=default
	Default destructor. More...

Public Attributes
const CCVector3 *	A
	A vertex (ref) More...
const CCVector3 *	B
	B vertex (ref) More...
const CCVector3 *	C
	C vertex (ref) More...

Detailed Description

A simple triangle class.

Implements the GenericTriangle class with references to 3D points. WARNING: make sure that references don't point to temporary objects! WARNING: not compatible with parallelization.

Definition at line 20 of file SimpleTriangle.h.

Constructor & Destructor Documentation

SimpleRefTriangle() [1/2]

cloudViewer::SimpleRefTriangle::SimpleRefTriangle ( )

inline

Default constructor.

Definition at line 23 of file SimpleTriangle.h.

SimpleRefTriangle() [2/2]

cloudViewer::SimpleRefTriangle::SimpleRefTriangle ( const CCVector3 *  _A, const CCVector3 *  _B, const CCVector3 *  _C  )

inline

Constructor from 3 vertices (references to)

Parameters

_A	first vertex
_B	second vertex
_C	third vertex

Definition at line 30 of file SimpleTriangle.h.

Member Function Documentation

_getA()

const CCVector3* cloudViewer::SimpleRefTriangle::_getA ( ) const

inlineoverridevirtual

Returns the first vertex (A)

Implements cloudViewer::GenericTriangle.

Definition at line 36 of file SimpleTriangle.h.

_getB()

const CCVector3* cloudViewer::SimpleRefTriangle::_getB ( ) const

inlineoverridevirtual

Returns the second vertex (B)

Implements cloudViewer::GenericTriangle.

Definition at line 37 of file SimpleTriangle.h.

_getC()

const CCVector3* cloudViewer::SimpleRefTriangle::_getC ( ) const

inlineoverridevirtual

Returns the third vertex (C)

Implements cloudViewer::GenericTriangle.

Definition at line 38 of file SimpleTriangle.h.

Member Data Documentation

A

const CCVector3* cloudViewer::SimpleRefTriangle::A

A vertex (ref)

Definition at line 41 of file SimpleTriangle.h.

Referenced by define_SimpleTriangle().

B

const CCVector3* cloudViewer::SimpleRefTriangle::B

B vertex (ref)

Definition at line 43 of file SimpleTriangle.h.

Referenced by define_SimpleTriangle().

C

const CCVector3* cloudViewer::SimpleRefTriangle::C

C vertex (ref)

Definition at line 45 of file SimpleTriangle.h.

Referenced by define_SimpleTriangle().

---

The documentation for this class was generated from the following file:

• /root/ACloudViewer/core/include/SimpleTriangle.h
