A generic class to handle a probability distribution. More...

#include <GenericDistribution.h>

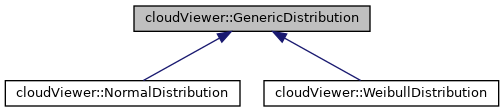

Inheritance diagram for cloudViewer::GenericDistribution:

Public Types
using	ScalarContainer = std::vector< ScalarType >
	Scalar values container. More...

Public Member Functions
	GenericDistribution ()
	Default constructor. More...

virtual	~GenericDistribution ()=default
	Default destructor. More...

virtual const char *	getName () const =0
	Returns distribution name. More...

virtual bool	isValid () const
	Indicates if the distribution parameters are valid. More...

virtual bool	computeParameters (const ScalarContainer &values)=0
	Computes the distribution parameters from a set of values. More...

virtual double	computeP (ScalarType x) const =0
	Computes the probability of x. More...

virtual double	computePfromZero (ScalarType x) const =0
	Computes the cumulative probability between 0 and x. More...

virtual double	computeP (ScalarType x1, ScalarType x2) const =0
	Computes the cumulative probability between x1 and x2. More...

virtual double	computeChi2Dist (const GenericCloud Yk, unsigned numberOfClasses, int histo=nullptr)=0
	Computes the Chi2 distance (related to the Chi2 Test) More...

Protected Member Functions
void	setValid (bool state)
	Sets distribution current validity. More...

Protected Attributes
bool	m_isValid
	Whether the distribution is in a valid state or not. More...

Detailed Description

A generic class to handle a probability distribution.

Custom parametric distributions can be implemented through this interface and used for filtering data (see StatisticalTestingTools).

Definition at line 25 of file GenericDistribution.h.

Member Typedef Documentation

◆ ScalarContainer

using cloudViewer::GenericDistribution::ScalarContainer = std::vector<ScalarType>

Scalar values container.

Definition at line 46 of file GenericDistribution.h.

Constructor & Destructor Documentation

◆ GenericDistribution()

cloudViewer::GenericDistribution::GenericDistribution ( )

inline

Default constructor.

Definition at line 28 of file GenericDistribution.h.

◆ ~GenericDistribution()

virtual cloudViewer::GenericDistribution::~GenericDistribution ( )

virtualdefault

Default destructor.

Member Function Documentation

◆ computeChi2Dist()

virtual double cloudViewer::GenericDistribution::computeChi2Dist	(	const GenericCloud *	Yk,
		unsigned	numberOfClasses,
		int *	histo = `nullptr`
	)

pure virtual

Computes the Chi2 distance (related to the Chi2 Test)

Computes the Chi2 distance from a group of point, accordingly to a certain number of classes (see Chi2 test theory for more information). The result of projecting each point (or more precisely each scalar value associated to each point) in the different classes can be stored in an array (of the same size as the number of classes). To do so, such an array (already allocated in memory) should be passed as an argument. Warning: be sure to activate an OUTPUT scalar field on the input cloud

Parameters

Yk	a group of points
numberOfClasses	the number of classes for the Chi2 Test
histo	an array to store the values projection result (optional)

Returns: the Chi2 distance (or -1.0 if an error occurred)

Implemented in cloudViewer::NormalDistribution, and cloudViewer::WeibullDistribution.

Referenced by define_GenericDistribution().

◆ computeP() [1/2]

virtual double cloudViewer::GenericDistribution::computeP ( ScalarType x ) const

pure virtual

Computes the probability of x.

Parameters

x	the variable

Returns: the probabilty

Implemented in cloudViewer::WeibullDistribution, and cloudViewer::NormalDistribution.

Referenced by define_GenericDistribution().

◆ computeP() [2/2]

virtual double cloudViewer::GenericDistribution::computeP	(	ScalarType	x1,
		ScalarType	x2
	)		const

pure virtual

Computes the cumulative probability between x1 and x2.

x1 should be lower than x2

Parameters

x1	the lower boundary
x2	the upper boundary

Returns: the cumulative probabilty

Implemented in cloudViewer::WeibullDistribution, and cloudViewer::NormalDistribution.

◆ computeParameters()

virtual bool cloudViewer::GenericDistribution::computeParameters ( const ScalarContainer & values )

pure virtual

Computes the distribution parameters from a set of values.

Parameters

values a set of scalar values

Returns: true (if the computation succeeded) or false (if not)

Implemented in cloudViewer::WeibullDistribution, and cloudViewer::NormalDistribution.

Referenced by ccEntityAction::computeStatParams(), and define_GenericDistribution().

◆ computePfromZero()

virtual double cloudViewer::GenericDistribution::computePfromZero ( ScalarType x ) const

pure virtual

Computes the cumulative probability between 0 and x.

Parameters

x	the upper boundary

Returns: the cumulative probabilty

Implemented in cloudViewer::WeibullDistribution, and cloudViewer::NormalDistribution.

Referenced by cloudViewer::StatisticalTestingTools::computeAdaptativeChi2Dist(), and define_GenericDistribution().

◆ getName()

virtual const char* cloudViewer::GenericDistribution::getName ( ) const

pure virtual

Returns distribution name.

Implemented in cloudViewer::WeibullDistribution, and cloudViewer::NormalDistribution.

Referenced by ccEntityAction::computeStatParams(), define_GenericDistribution(), CommandStatTest::process(), ccEntityAction::statisticalTest(), and cloudViewer::StatisticalTestingTools::testCloudWithStatisticalModel().

◆ isValid()

virtual bool cloudViewer::GenericDistribution::isValid ( ) const

inlinevirtual

Indicates if the distribution parameters are valid.

This function is related to 'computeParameters()'. If the parameters computation failed, then the parameters will be marked as 'invalid'. In this case, the dsitribution should'nt be used (most of the methods won't work anyway).

Returns: true (if the distribution parameters are valid) or false (if not)

Definition at line 43 of file GenericDistribution.h.

Referenced by cloudViewer::StatisticalTestingTools::computeAdaptativeChi2Dist(), cloudViewer::WeibullDistribution::computeSkewness(), define_GenericDistribution(), cloudViewer::WeibullDistribution::getOtherParameters(), cloudViewer::NormalDistribution::getParameters(), cloudViewer::WeibullDistribution::getParameters(), cloudViewer::ICPRegistrationTools::Register(), cloudViewer::NormalDistribution::setChi2ClassesPositions(), cloudViewer::WeibullDistribution::setChi2ClassesPositions(), cloudViewer::NormalDistribution::setParameters(), cloudViewer::WeibullDistribution::setParameters(), and cloudViewer::StatisticalTestingTools::testCloudWithStatisticalModel().

◆ setValid()

void cloudViewer::GenericDistribution::setValid ( bool state )

inlineprotected

Sets distribution current validity.

Definition at line 93 of file GenericDistribution.h.

Referenced by cloudViewer::NormalDistribution::computeParameters(), cloudViewer::WeibullDistribution::computeParameters(), cloudViewer::NormalDistribution::setParameters(), cloudViewer::WeibullDistribution::setParameters(), and cloudViewer::WeibullDistribution::setValueShift().

Member Data Documentation

◆ m_isValid

bool cloudViewer::GenericDistribution::m_isValid

protected

Whether the distribution is in a valid state or not.

Definition at line 96 of file GenericDistribution.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/core/include/GenericDistribution.h
