A generic Fast Marching grid cell. More...

#include <FastMarching.h>

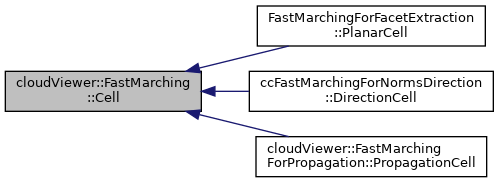

Inheritance diagram for cloudViewer::FastMarching::Cell:

[legend]

Public Types
enum	STATE { EMPTY_CELL = 0 , FAR_CELL = 1 , TRIAL_CELL = 2 , ACTIVE_CELL = 3 }
	Possible states of a Fast Marching grid cell. More...

Public Member Functions
	Cell ()
	Default constructor. More...

virtual	~Cell ()=default
	Virtual destructor. More...

Static Public Member Functions
static float	T_INF ()
	Returns infinite time value. More...

Public Attributes
STATE	state
	Cell state. More...

float	T
	Front arrival time. More...

Detailed Description

A generic Fast Marching grid cell.

Definition at line 95 of file FastMarching.h.

Member Enumeration Documentation

◆ STATE

enum cloudViewer::FastMarching::Cell::STATE

Possible states of a Fast Marching grid cell.

Enumerator
EMPTY_CELL
FAR_CELL
TRIAL_CELL
ACTIVE_CELL

Definition at line 101 of file FastMarching.h.

Constructor & Destructor Documentation

◆ Cell()

cloudViewer::FastMarching::Cell::Cell ( )

inline

Default constructor.

Definition at line 109 of file FastMarching.h.

◆ ~Cell()

virtual cloudViewer::FastMarching::Cell::~Cell ( )

virtualdefault

Virtual destructor.

Member Function Documentation

◆ T_INF()

static float cloudViewer::FastMarching::Cell::T_INF ( )

inlinestatic

Returns infinite time value.

Definition at line 98 of file FastMarching.h.

Referenced by cloudViewer::FastMarching::computeT(), cloudViewer::FastMarching::resetCells(), cloudViewer::FastMarchingForPropagation::step(), and FastMarchingForFacetExtraction::step().

Member Data Documentation

◆ state

STATE cloudViewer::FastMarching::Cell::state

Cell state.

Definition at line 115 of file FastMarching.h.

Referenced by cloudViewer::FastMarching::addActiveCell(), cloudViewer::FastMarching::addIgnoredCell(), cloudViewer::FastMarching::addTrialCell(), cloudViewer::FastMarching::computeT(), cloudViewer::FastMarching::initTrialCells(), FastMarchingForFacetExtraction::initTrialCells(), cloudViewer::FastMarching::resetCells(), cloudViewer::FastMarching::setSeedCell(), cloudViewer::FastMarchingForPropagation::step(), and FastMarchingForFacetExtraction::step().

◆ T

float cloudViewer::FastMarching::Cell::T

Front arrival time.

Definition at line 118 of file FastMarching.h.

The documentation for this class was generated from the following file:

/root/ACloudViewer/core/include/FastMarching.h
