ACloudViewer  3.9.4
A Modern Library for 3D Data Processing
Public Member Functions | List of all members
cloudViewer::DatabaseImageViewerWidget Class Reference

#include <ImageViewerWidget.h>

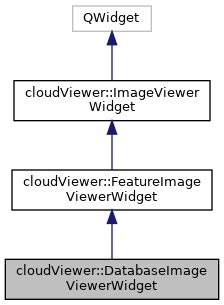

Inheritance diagram for cloudViewer::DatabaseImageViewerWidget:
Inheritance graph
[legend]
Collaboration diagram for cloudViewer::DatabaseImageViewerWidget:
Collaboration graph
[legend]

Public Member Functions

 DatabaseImageViewerWidget (QWidget *parent, ModelViewerWidget *ModelViewerWidget, OptionManager *options)

void ShowImageWithId (const colmap::image_t image_id)

- Public Member Functions inherited from cloudViewer::FeatureImageViewerWidget
 FeatureImageViewerWidget (QWidget *parent, const std::string &switch_text)

void ReadAndShowWithKeypoints (const std::string &path, const colmap::FeatureKeypoints &keypoints, const std::vector< char > &tri_mask)

void ReadAndShowWithMatches (const std::string &path1, const std::string &path2, const colmap::FeatureKeypoints &keypoints1, const colmap::FeatureKeypoints &keypoints2, const colmap::FeatureMatches &matches)

- Public Member Functions inherited from cloudViewer::ImageViewerWidget
 ImageViewerWidget (QWidget *parent)

void ShowBitmap (const colmap::Bitmap &bitmap)

void ShowPixmap (const QPixmap &pixmap)

void ReadAndShow (const std::string &path)


Additional Inherited Members

- Protected Member Functions inherited from cloudViewer::FeatureImageViewerWidget
void ShowOrHide ()

- Protected Member Functions inherited from cloudViewer::ImageViewerWidget
void resizeEvent (QResizeEvent *event)

void closeEvent (QCloseEvent *event)

void ZoomIn ()

void ZoomOut ()

void Save ()

- Protected Attributes inherited from cloudViewer::FeatureImageViewerWidget
QPixmap image1_

QPixmap image2_

bool switch_state_

QPushButton * switch_button_

const std::string switch_text_

- Protected Attributes inherited from cloudViewer::ImageViewerWidget
QGridLayout * grid_layout_

QHBoxLayout * button_layout_


Detailed Description

Definition at line 85 of file ImageViewerWidget.h.

Constructor & Destructor Documentation

◆ DatabaseImageViewerWidget()

cloudViewer::DatabaseImageViewerWidget::DatabaseImageViewerWidget ( QWidget *  parent,
ModelViewerWidget *  ModelViewerWidget,
OptionManager *  options
)

Definition at line 232 of file ImageViewerWidget.cpp.

Member Function Documentation

◆ ShowImageWithId()

void cloudViewer::DatabaseImageViewerWidget::ShowImageWithId ( const colmap::image_t  image_id)

Definition at line 330 of file ImageViewerWidget.cpp.

References cloudViewer::ModelViewerWidget::cameras, image, cloudViewer::ModelViewerWidget::images, cloudViewer::utility::filesystem::JoinPaths(), cloudViewer::t::geometry::path, and cloudViewer::FeatureImageViewerWidget::ReadAndShowWithKeypoints().

Referenced by cloudViewer::ModelViewerWidget::ShowImageInfo().

The documentation for this class was generated from the following files:
