PdmsTools::PdmsCommands::Orientation Class Reference

#include <PdmsTools.h>

Inheritance diagram for PdmsTools::PdmsCommands::Orientation:

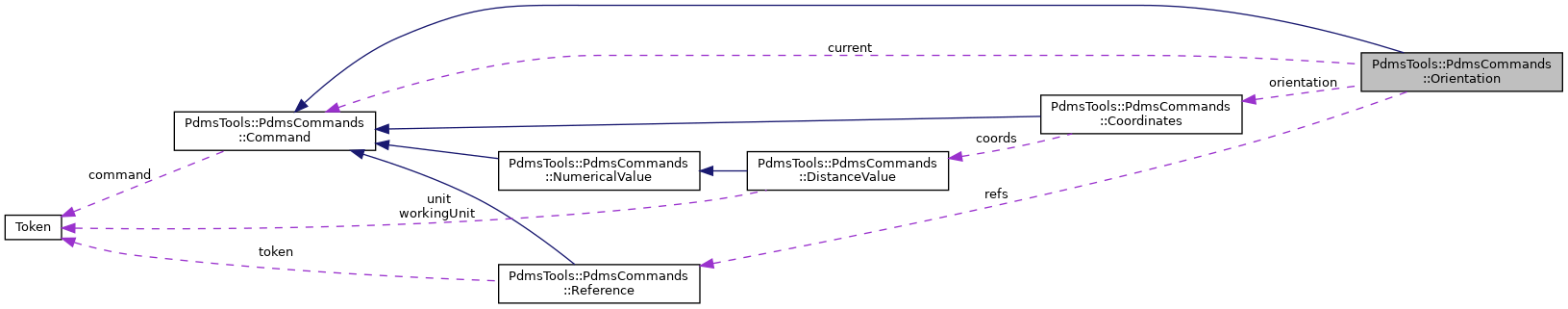

Collaboration diagram for PdmsTools::PdmsCommands::Orientation:

Public Member Functions
	Orientation ()
virtual bool	handle (Token t)
virtual bool	handle (PointCoordinateType numvalue)
virtual bool	handle (const char *str)
virtual bool	isValid () const
bool	getAxes (CCVector3 &x, CCVector3 &y, CCVector3 &z) const
virtual bool	execute (PdmsObjects::GenericItem *&item) const
Public Member Functions inherited from PdmsTools::PdmsCommands::Command
	Command (Token t)
	Command (const Command &com)
virtual	~Command ()

Public Attributes
Coordinates	orientation [3]
Reference	refs [3]
Command *	current
int	component
Public Attributes inherited from PdmsTools::PdmsCommands::Command
Token	command

Protected Member Functions
int	getNbComponents () const

Static Protected Member Functions
static bool	axisFromCoords (const Coordinates &coords, CCVector3 &u)

Additional Inherited Members
Static Public Member Functions inherited from PdmsTools::PdmsCommands::Command
static Command *	Create (Token t)
	Factory. More...

Detailed Description

Definition at line 577 of file PdmsTools.h.

Constructor & Destructor Documentation

Orientation()

PdmsTools::PdmsCommands::Orientation::Orientation ( )

inline

Definition at line 584 of file PdmsTools.h.

References component, and current.

Member Function Documentation

axisFromCoords()

bool Orientation::axisFromCoords ( const Coordinates &  coords, CCVector3 &  u  )

staticprotected

Definition at line 488 of file PdmsTools.cpp.

References cloudViewer::DegreesToRadians(), PdmsTools::PdmsCommands::Coordinates::getNbComponents(), and PdmsTools::PdmsCommands::Coordinates::getVector().

execute()

bool Orientation::execute ( PdmsObjects::GenericItem *&  item ) const

virtual

Reimplemented from PdmsTools::PdmsCommands::Command.

Definition at line 508 of file PdmsTools.cpp.

References PdmsTools::PdmsObjects::GenericItem::orientationReferences, and PdmsTools::PdmsObjects::GenericItem::setOrientation().

getAxes()

bool Orientation::getAxes	(	CCVector3 &	x,
		CCVector3 &	y,
		CCVector3 &	z
	)		const

Definition at line 442 of file PdmsTools.cpp.

References PdmsTools::PDMS_DOWN, PdmsTools::PDMS_EST, PdmsTools::PDMS_NORTH, PdmsTools::PDMS_SOUTH, PdmsTools::PDMS_UP, PdmsTools::PDMS_WEST, PdmsTools::PDMS_X, PdmsTools::PDMS_Y, and PdmsTools::PDMS_Z.

getNbComponents()

int Orientation::getNbComponents ( ) const

protected

Definition at line 502 of file PdmsTools.cpp.

handle() [1/3]

bool Orientation::handle ( const char *  str )

virtual

Reimplemented from PdmsTools::PdmsCommands::Command.

Definition at line 425 of file PdmsTools.cpp.

handle() [2/3]

bool Orientation::handle ( PointCoordinateType  numvalue )

virtual

Reimplemented from PdmsTools::PdmsCommands::Command.

Definition at line 421 of file PdmsTools.cpp.

handle() [3/3]

bool Orientation::handle ( Token  t )

virtual

Reimplemented from PdmsTools::PdmsCommands::Command.

Definition at line 382 of file PdmsTools.cpp.

References PdmsTools::PdmsToken::isCoordinate(), PdmsTools::PDMS_AND, PdmsTools::PDMS_IS, and PdmsTools::PDMS_WRT.

isValid()

bool Orientation::isValid ( ) const

virtual

Reimplemented from PdmsTools::PdmsCommands::Command.

Definition at line 429 of file PdmsTools.cpp.

References PdmsTools::PdmsToken::isCoordinate(), and PdmsTools::PDMS_WRT.

Member Data Documentation

component

int PdmsTools::PdmsCommands::Orientation::component

Definition at line 582 of file PdmsTools.h.

Referenced by Orientation().

current

Command* PdmsTools::PdmsCommands::Orientation::current

Definition at line 581 of file PdmsTools.h.

Referenced by Orientation().

orientation

Coordinates PdmsTools::PdmsCommands::Orientation::orientation[3]

Definition at line 579 of file PdmsTools.h.

refs

Reference PdmsTools::PdmsCommands::Orientation::refs[3]

Definition at line 580 of file PdmsTools.h.

---

The documentation for this class was generated from the following files:

• /root/ACloudViewer/plugins/core/IO/qCoreIO/include/PDMS/PdmsTools.h
• /root/ACloudViewer/plugins/core/IO/qCoreIO/src/PDMS/PdmsTools.cpp
